Stryker Performance-PRO XT - Backrest Pouch - 6500-130-000

158 pages

To Next Page

To Previous Page

152 6086-009-001 REV B www.stryker.com

Return To Table of Contents

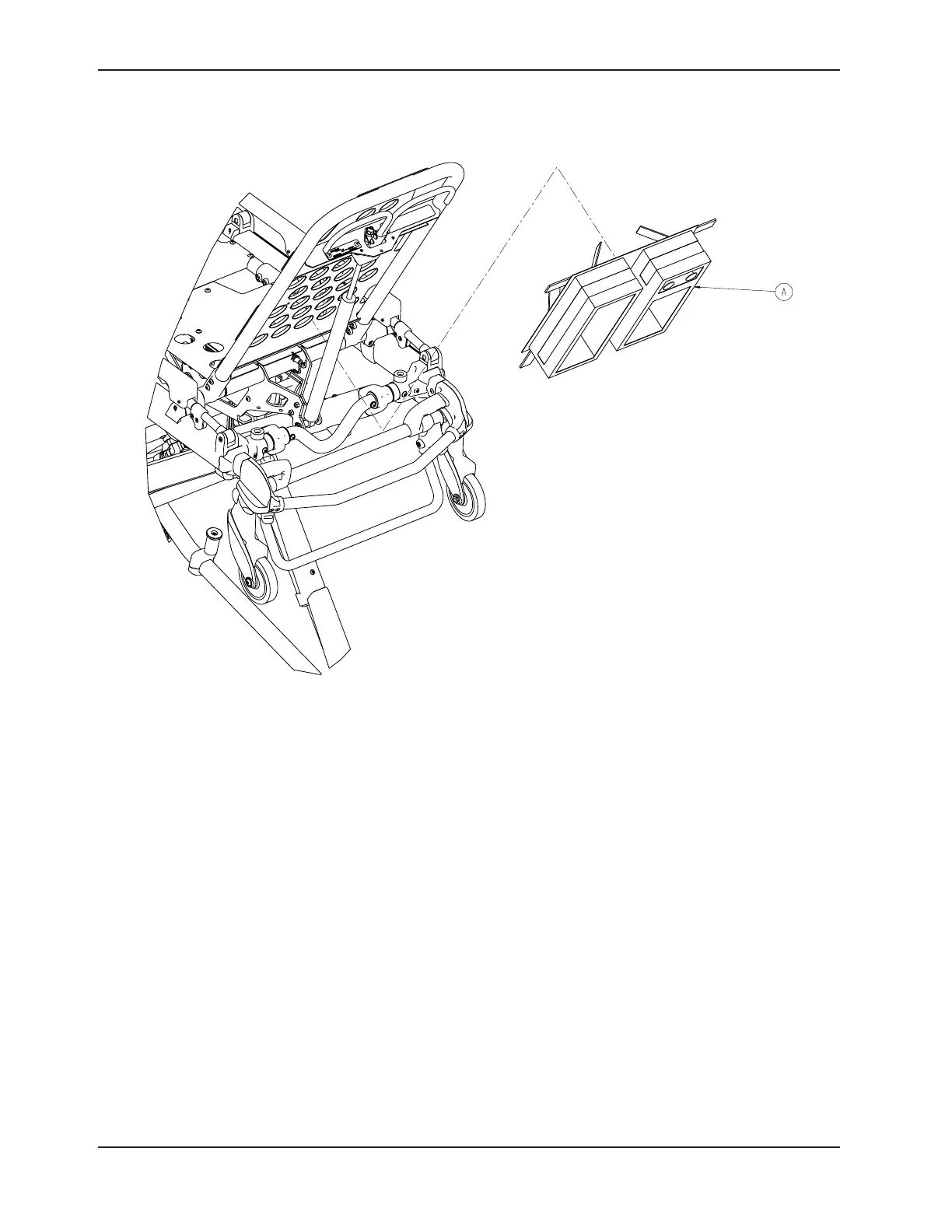

Backrest Pouch - 6500-130-000

Item Part No. Part Name Qty.

A 6500-001-241 Pocketed Backrest Storage Pouch 1
