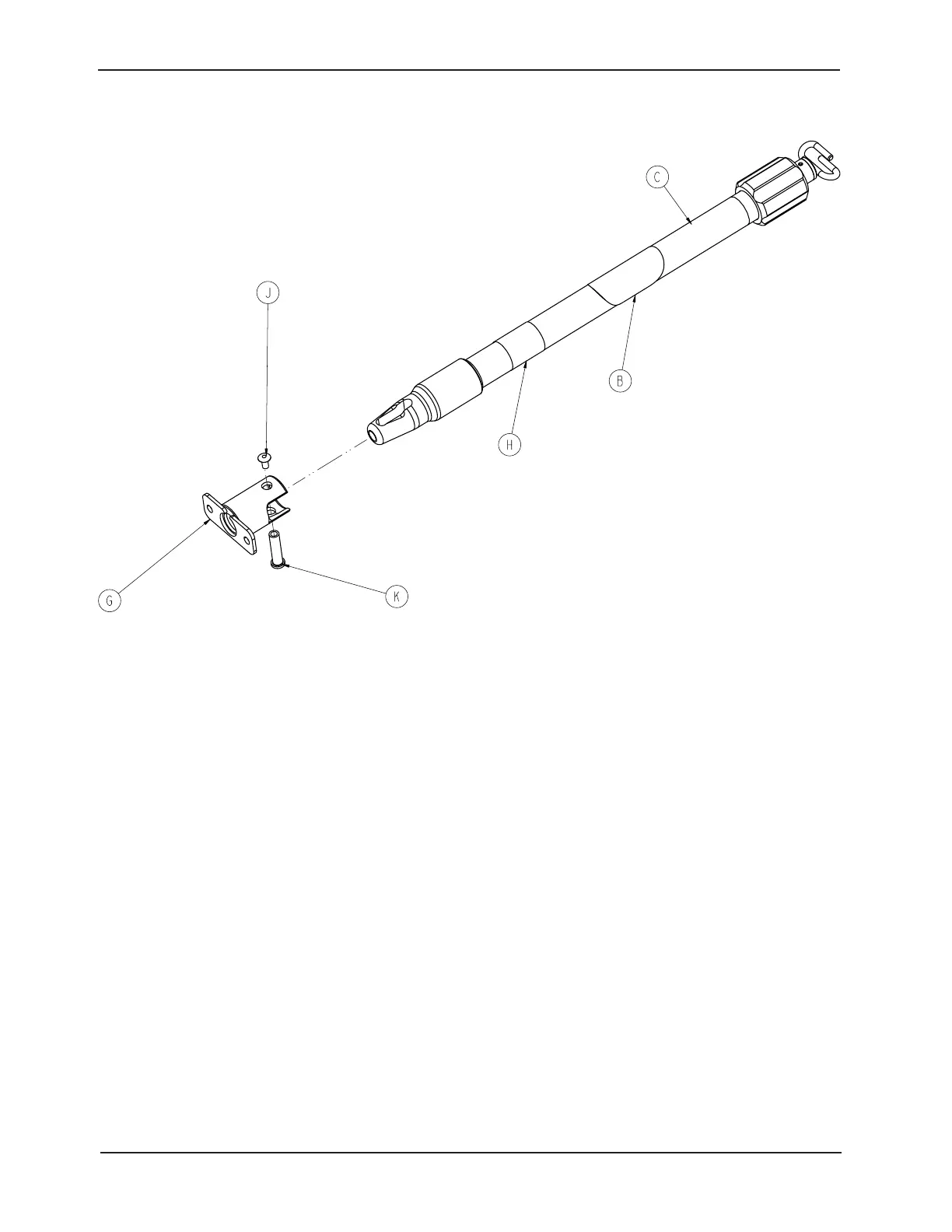

Two-Stage I.V. Pole Assembly, Left - 6500-001-042

Item Part No. Part Name Qty.

B 6070-090-105 Label, Caution 1

C 6070-210-070 Pole Assembly 1

G 6100-115-051 Socket Weldment 1

H 6500-001-254 Label 1

J 0025-079-000 Dome Head Rivet 1

K 6070-110-037 I.V. Pivot Pin 1

Rev C

Table of Contents3
Symbols and Definitions7
- Symbols7
- Warning/Caution/Note Definition7
Introduction8
- Product Description8
- Intended Use of Product8
- Specifications9
- Contact Information10
- Serial Number Location10
- Product Illustration11
Summary of Safety Precautions12
Setup Procedures16
Cot Fastener Installation17
Vehicle Safety Hook Selection19
Vehicle Safety Hook Installation20
- Vehicle Configuration20
- Required Hardware for Installation of the Safety Hook (Not Supplied)20
- Front to Back Positioning of the Safety Hook21
- Side to Side Positioning of the Safety Hook22
- Installing the Safety Hook22
Adjusting Cot Load Height23
Cot Positions24
Operation Guide25
- Operating Guidelines25
- Proper Lifting Techniques25
- Transferring the Patient to the Cot26
- Rolling the Cot26
- Adjusting the Height of the Cot with Two Operators27
- Adjusting the Height of an Empty Cot with One Operator28
- Loading or Unloading the Cot29
- Loading or Unloading the Cot with the Power-LOAD Option29
- Loading the Cot into a Vehicle with Two Operators30
- Loading an Empty Cot into a Vehicle with One Operator31
- Unloading the Cot from a Vehicle with Two Operators32
- Unloading an Empty Cot from a Vehicle with One Operator33
- Using Additional Assistance34
- Operating the Siderails35
- Operating the Backrest35
- Operating the Retractable Head Section36
- Adjusting the Footrest37
- Adjusting the Optional Knee Gatch38
- Operating the Optional Wheel Locks39
- Using Restraint Straps40
- Using the Restraint Belt Extension43
Optional Accessories44
- Installing the Base Storage Net45
- Using the Defibrillator Platform45
- Using the Equipment Hook46
- Using the Head Extension with Pillow46
- Operating the Optional Two-Stage I.V. Pole47
- Operating the Optional Three-Stage I.V. Pole48
- Using the Kickstand for Dialysis Scale49
- Attaching an Oxygen Bottle to an Oxygen Bottle Holder50
- Using the Retractable Head Section Oxygen Bottle Holder51
- Attaching the Pedi-Mate ® Infant Restraint System52
- Installing the Backrest Storage Pouch54
- Installing the Head End Storage Flat55
- Using the Transfer Flat55
Cleaning56
- Washing Procedure56
- Washing Limitations56
- Removal of Iodine Compounds57
Preventative Maintenance58
- Checklist58
- Regular Inspection and Adjustments59
Maintenance Record61
Training Record62
Quick Reference Replacement Parts List63
Service Information64
- Backrest Adjustment64
- Wheel Locking Force Adjustment65
- Cot Retaining Post Adjustment66
- Cot Retaining Post Replacement67
- Cot Retaining Post Screw Replacement67
- Headsection Replacement68
- Backrest Gas Cylinder Replacement68
- Inner, Inner Tube Replacement69
- Outer, Inner Tube Replacement70
- Outer, Outer Tube Replacement71
- Inner, Outer Tube Replacement72
- Siderail Assembly Replacement73
Cot Assembly74
Base Assembly78
No Steer Lock Option82
No Wheel Lock Option83
Single Wheel Lock Option84
Dual Wheel Lock Option85
Caster Horn Assembly86
Adjustable Caster Lock Assembly87
Wheel Assembly - 6060-002-01088
Cot Retaining Post, Right - 6085-033-00089
Optional Dual Cot Retaining Post - 6085-034-00090
Kickstand Assembly - 6085-002-00091
Kickstand Sub-Assembly - 6085-002-01692
Inner Leg Assembly - 6085-001-01793
Outer Lift Tube Assembly, Litter Pivot, Right94
Outer Lift Tube Assembly, Litter Pivot, Left95
Litter Base Assembly96
Lock Bar Assembly - 6085-001-01397
Siderail Option98
Siderail Assembly - 6082-026-01099
Outer Rail Subassembly, Right100
Outer Rail Subassembly, Left101
Foot End Assembly, Left102
Optional Foot End Assembly, Right104
Retractable Head Section106
Head Section Assembly - 6500-002-023107
Telescoping Tube Assembly - 6500-002-024109
Head Section Lock Assembly - 6500-001-026110
Left Hand Release Handle111
Optional Right Hand Release Handle113
Slide Housing Assembly, Left115
Slide Housing Assembly, Right116
Fowler Assembly117
Non-Power-LOAD Compatible Option118
Headsection - 6500-002-020120
Optional In-Fastener Shut-Off Assembly - 6500-001-027122
No Headsection Oxygen Bottle Holder Option - 6506-036-000123
Power-LOAD Compatible Option - 6086-055-000124
Foot End Fastener Assembly (Power-LOAD Compatible Option)126
EMS Restraint Package - 6500-002-030128
Trend - 6085-031-000129
Optional Gatch - 6085-032-000130
Optional Gatch Assembly131
Optional Gatch Support Assembly134
Optional Accessories135
Defibrillator Platform - 6500-170-000136
Equipment Hook - 6500-147-000137
Head Extension - 6100-044-000138
Head Extension Assembly - 6100-044-012139
Two-Stage I.V. Pole Assembly, Right - 6500-210-000140
Three-Stage I.V. Pole Assembly, Right - 6500-215-000140
Two-Stage I.V. Pole Assembly, Right - 6500-001-041141
Three-Stage I.V. Pole Assembly, Right - 6500-001-043142
Two-Stage I.V. Pole Assembly, Left - 6500-211-000143
Three-Stage I.V. Pole Assembly, Left - 6500-216-000143
Two-Stage I.V. Pole Assembly, Left - 6500-001-042144
Three-Stage I.V. Pole Assembly, Left - 6500-001-044145
Optional Two-Stage I.V. Pole Assembly, Dual - 6500-212-000146
Optional Three-Stage I.V. Pole Assembly, Dual - 6500-217-000146
Oxygen Bottle Holder, Foot End - 6500-140-000147
Oxygen Bottle Holder Assembly - 6500-001-040148
Oxygen Bottle Holder, Head End - 6500-141-000149
Removable Oxygen Bottle Holder - 6080-140-000150
Retractable Head Section Oxygen Bottle Holder - 6085-046-000151
Backrest Pouch - 6500-130-000152
Head End Storage Flat - 6500-128-000153
Transfer Flat - 6005-001-001154
Warranty155
- Stryker EMS Return Policy156
- Return Authorization156
- Damaged Merchandise156
- International Warranty Clause156
- Patent Information156
