Foot End Assembly, Left

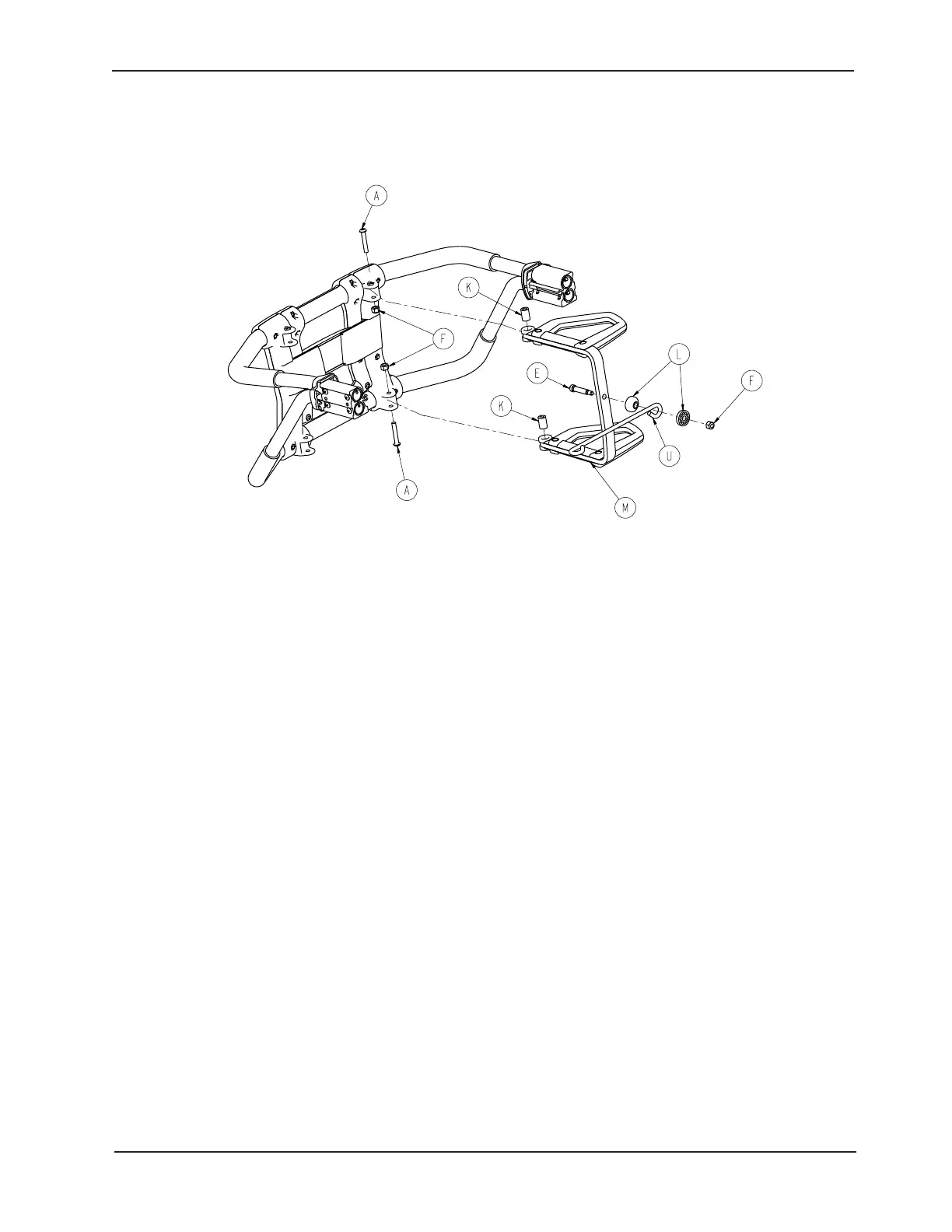

Foot End Assembly, Left - 6085-001-015 Rev B (Reference Only)
Item Part No. Part Name Qty.
A 0004-376-000 Button Head Cap Screw 2
B 0004-614-000 Button Head Cap Screw 8
C 0004-615-000 Button Head Cap Screw 6
D 0007-086-000 Truss Head Screw 2
E 0008-033-000 Socket Head Shoulder Screw 1
F 0016-028-000 Fiberlock Hex Nut 3
G 0016-131-000 Nylock Hex Nut 14
H 0023-167-000 Delta Screw 2
J 0025-079-000 Dome Head Rivet 8
K 6080-040-044 Link Release Spacer 2
L 6082-040-025 End Link Bushing 2
M 6082-040-061 Release Handle Assembly 1
N 6085-001-106 Upper Lift Bar 1
P 6085-001-107 Lower Lift Bar 1
R 6085-001-108 Rear Plate Lift Support Tube 1
T 6085-001-109 Face Plate Lift Support Tube 1
U 6085-001-111 Pull Handle Link 1
V 6500-001-133 Machined Extruded Bracket 2
W 6500-001-144 Transition Cap 2
Y 6500-001-154 Outside Pull Handle 2
