Optional Gatch Assembly

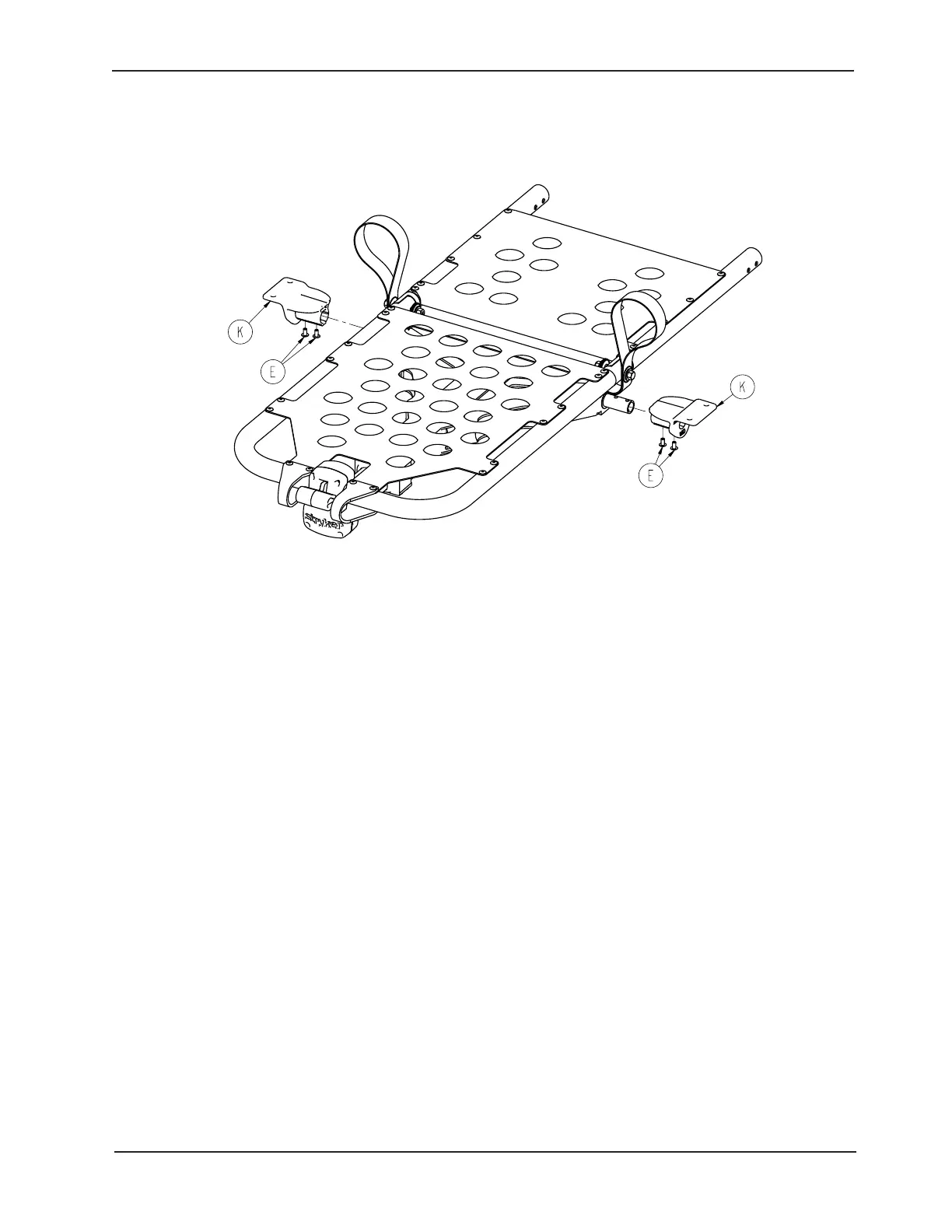

Optional Gatch Assembly - 6085-001-030 Rev A (Reference Only)
Item Part No. Part Name Qty.
A 0011-448-000 Washer 4
B 0014-020-000 Washer 2
C 0016-028-000 Fiberlock Hex Nut 2
D 0023-162-000 Delta Screw 8
E 0025-079-000 Dome Head Rivet 34
F 0025-132-000 Dome Head Rivet 2
G 0025-133-000 Dome Head Rivet 8
H 0081-255-000 Split Bearing 2
J 6085-001-123 Gatch Crosstube 1
K 6085-001-125 Gatch Support, Mid 2
L 6100-031-096 Trend Lift Strap 2
M 6100-031-108 Gatch Pivot 4
N 6500-001-017 Gatch Telescoping Assembly 1
P 6500-001-057 Gatch Lock Tube Weldment 1
R 6500-001-110 Foot Section Skin 1
T 6500-001-111 Thigh Section Tube 2
U 6500-001-112 Thigh Section Skin 1
V 6500-001-116 Foot Section U-Tube 1
W 6500-001-124 Front Gatch Release 1
Y 6500-001-125 Back Gatch Release 1
AA 6500-001-126 Gatch Release Lever 1
AB 6500-001-131 Gatch Bearing End Cap 1
AC 6500-001-186 Gatch Pivot Pin 2
AD 6500-001-193 Gatch Handle Guard 2
