148 SPARCstation 20 Service Manual • July 1996
Caution – Use proper ESD grounding techniques when handling components. Wear
an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive
components in antistatic bags before placing it on any surface.
3. Unlock the MBus module retainers and the SBus card retainers closest to the
MBus slot (
FIGURE 11-5).
4. Remove the four screws and rectangular washers from the MBus module and the
back panel (
FIGURE 11-6).
Note – Save the screws and washers for future use.
5. Hold each edge of the MBus module and pull up on the module until the
connector is out of the slot (
FIGURE 11-7).
6. Place the MBus module on an antistatic surface.

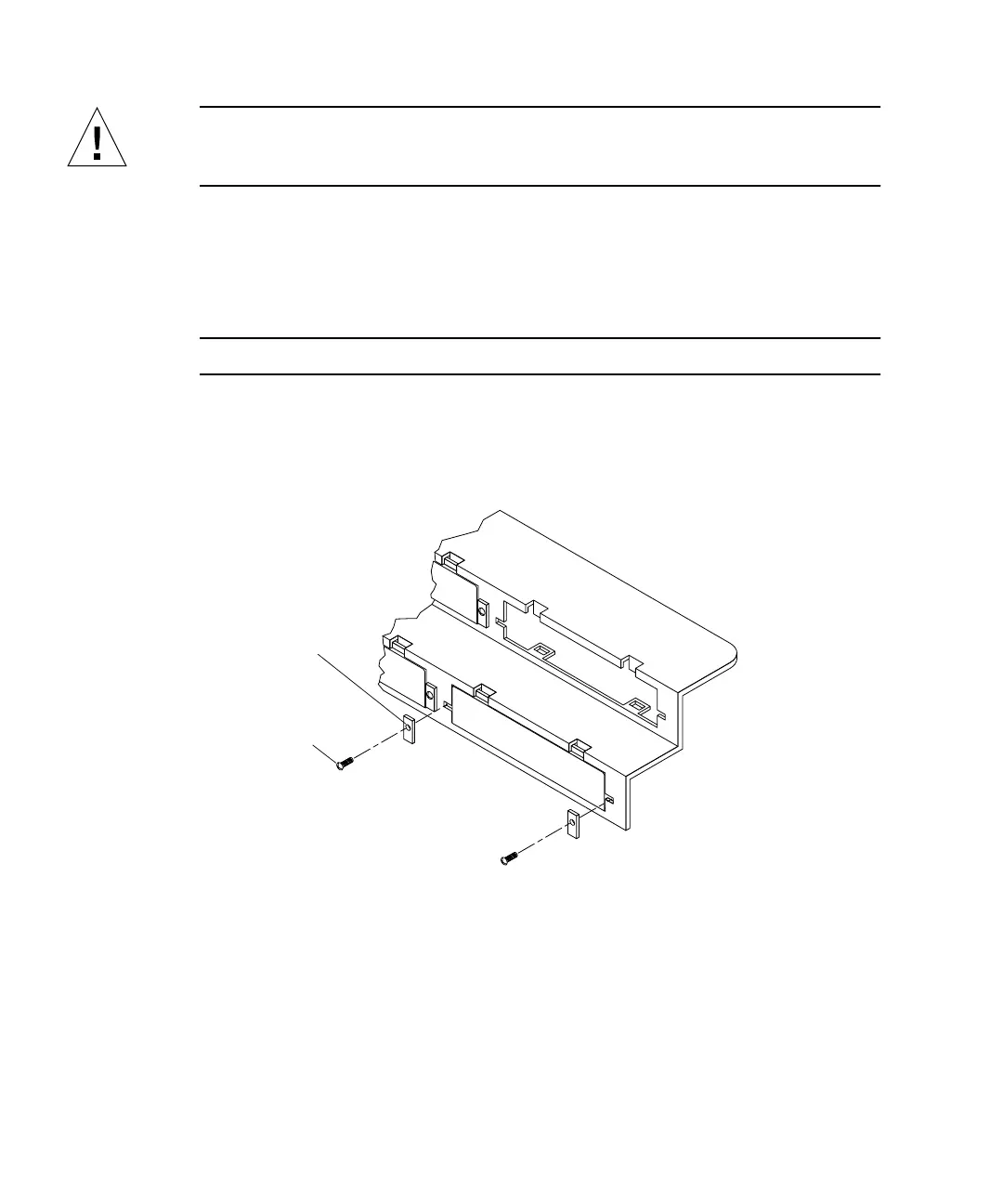

FIGURE 11-6 MBus Module Back Panel Screws and Washers
Washer (2)
Screw (2)
