74 SPARCstation 20 Service Manual • July 1996

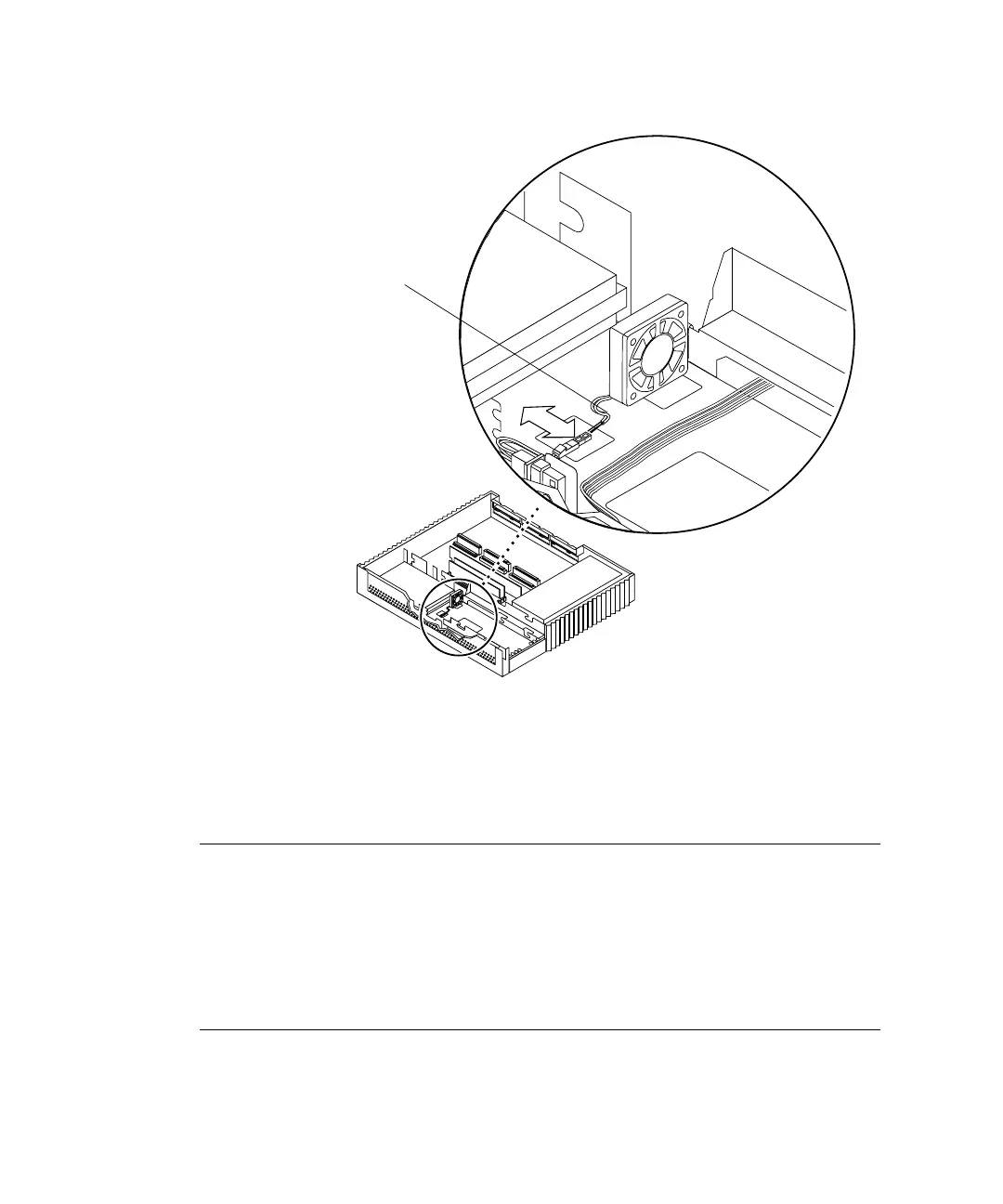

FIGURE 8-16 Securing the Fan Assembly DC Power Connector
Removing the Fan DC Power Harness
Note – Some units have built-in fan DC power cables in the system DC power
harness and the separate fan DC harness is not used. For systems having the fan
DC connector built into the system DC power harness, see “DC Power Harness” on
page 97. If the system has a separate fan DC power harness, the fan DC power
harness must be removed from the CD-ROM drive DC power connector. The
separate fan DC power harness has a two-wire fan DC power connector, a CD-ROM
drive DC power connector, and a power connector for the optional CD-ROM drive
connector (FIGURE 8-17).
Front
Right
side
Fan DC
harness
Note: Cable restraints and SCSI data
cables are not illustrated.
To Next Page
