SunFounder ESP32 Starter Kit
This project uses an LED strip and a potentiometer to create a color mixing effect. The potentiometer is used to adjust
the hue value of the LED, which is then converted into RGB values using a color conversion function. The RGB values
are then used to update the color of the LED.

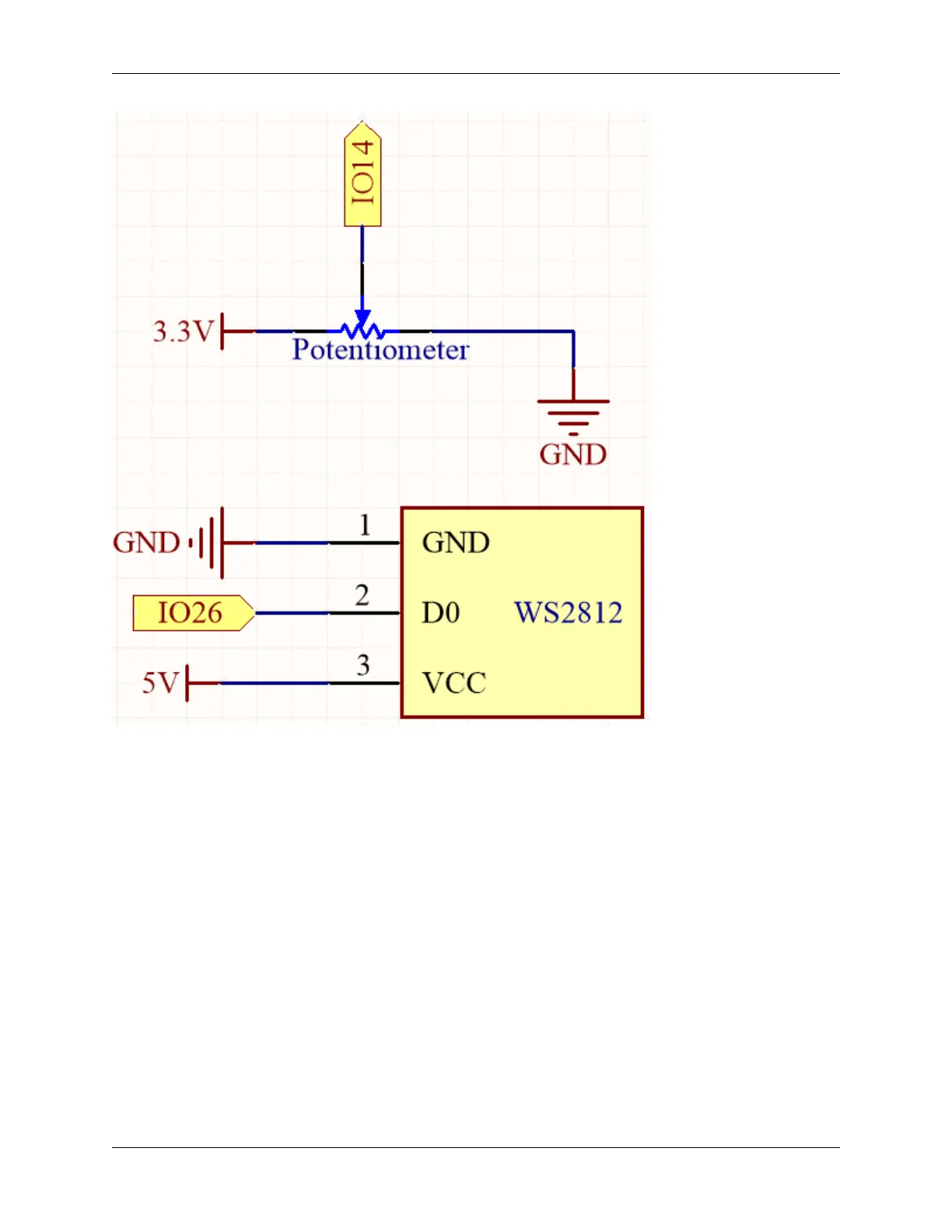

Wiring
3.37. 6.5 Color Gradient 425
