SunFounder ESP32 Starter Kit
• Color: Full color RGB
• RGB Type5050RGBBuilt-in IC WS2812B
• Light Strip Thickness: 2mm
• Each LED can be controlled individually
WS2812B Introdction
• WS2812B Datasheet
WS2812B is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of
5050 components. It internal include intelligent digital port data latch and signal reshaping ampli fication drive circuit.
Also include a precision internal oscillator and a 12V voltage programmable constant curr e-nt control part, effectively
ensuring the pixel point light color height consistent.
The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive
data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which
reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port.
After transmission for each pixelthe signal to reduce 24bit. pixel adopt auto resha -ping transmit technology, making
the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission.
LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angl e is large,
good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more
simple circuit, small volume, convenient installation.
Example
• 2.7 RGB LED Strip (Arduino Project)
• 6.2 Flowing Light (Arduino Project)
• 2.7 RGB LED Strip (MicroPython Project)
• 6.2 Flowing Light (MicroPython Project)
• 6.5 Color Gradient (MicroPython Project)
Sound

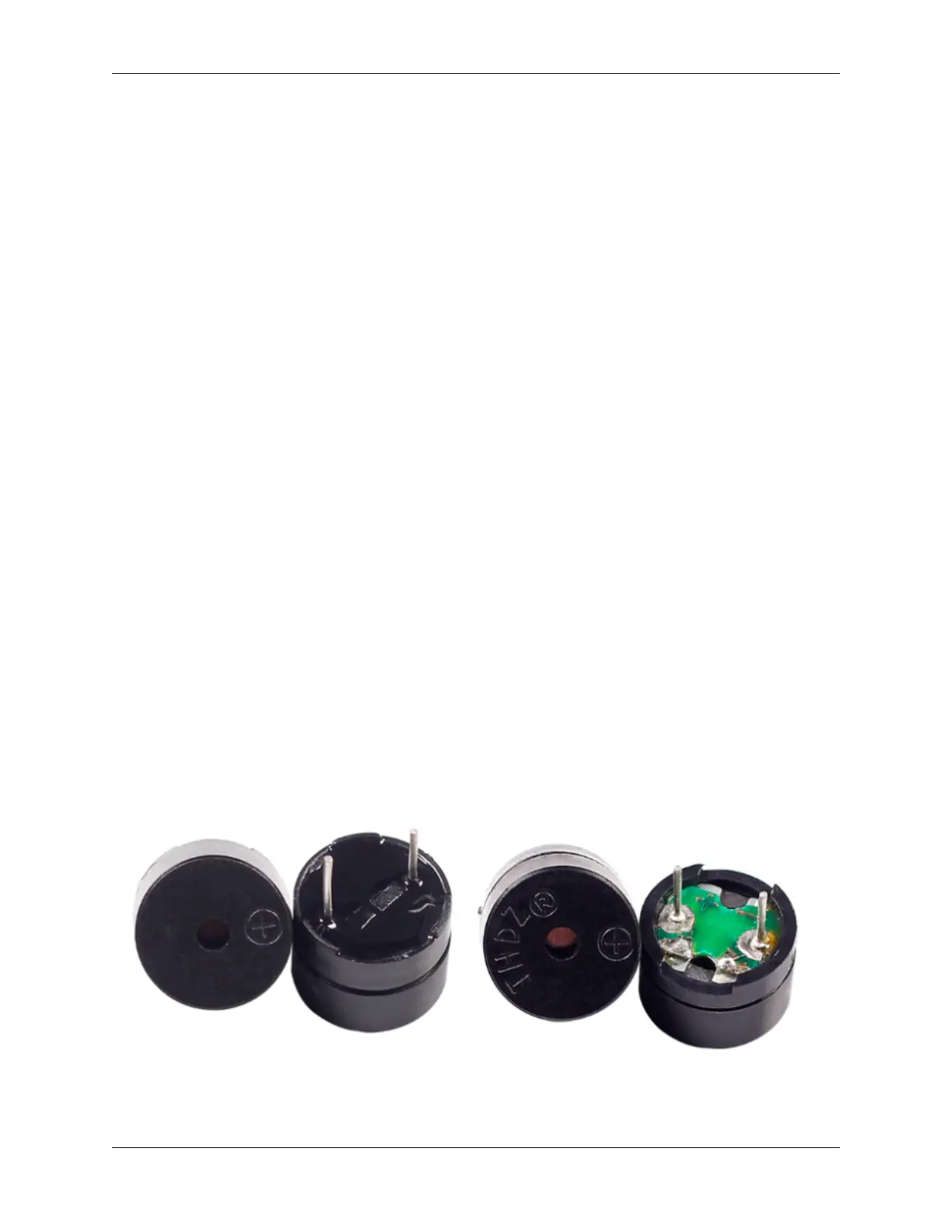

5.15 Buzzer
5.15. Buzzer 725
