As a type of electronic buzzer with an integrated structure, buzzers, which are supplied by DC power, are widely used in
computers, printers, photocopiers, alarms, electronic toys, automotive electronic devices, telephones, timers and other
electronic products or voice devices.
Buzzers can be categorized as active and passive ones (see the following picture). Turn the buzzer so that its pins are
facing up, and the buzzer with a green circuit board is a passive buzzer, while the one enclosed with a black tape is an
active one.
The difference between an active buzzer and a passive buzzer:
An active buzzer has a built-in oscillating source, so it will make sounds when electrified. But a passive buzzer does
not have such source, so it will not beep if DC signals are used; instead, you need to use square waves whose frequency
is between 2K and 5K to drive it. The active buzzer is often more expensive than the passive one because of multiple
built-in oscillating circuits.

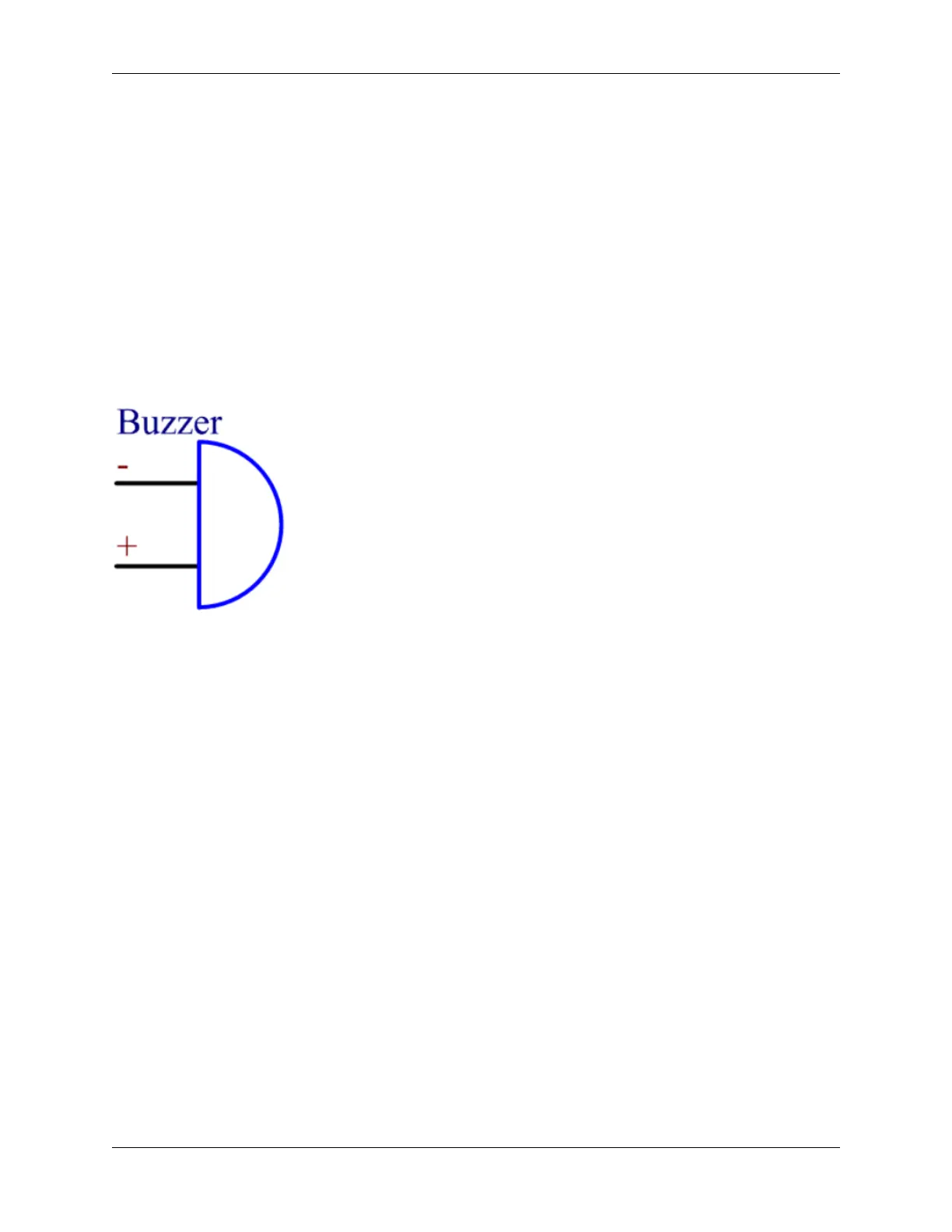

The following is the electrical symbol of a buzzer. It has two pins with positive and negative poles. With a + in the
surface represents the anode and the other is the cathode.
You can check the pins of the buzzer, the longer one is the anode and the shorter one is the cathode. Please don’t mix
them up when connecting, otherwise the buzzer will not make sound.
