SunFounder ESP32 Starter Kit
Example
• 2.3 Colorful Light (Arduino Project)
• 6.5 Color Gradient (Arduino Project)
• 2.3 Colorful Light (MicroPython Project)
• 2.3 Colorful Balls (Scratch Project)

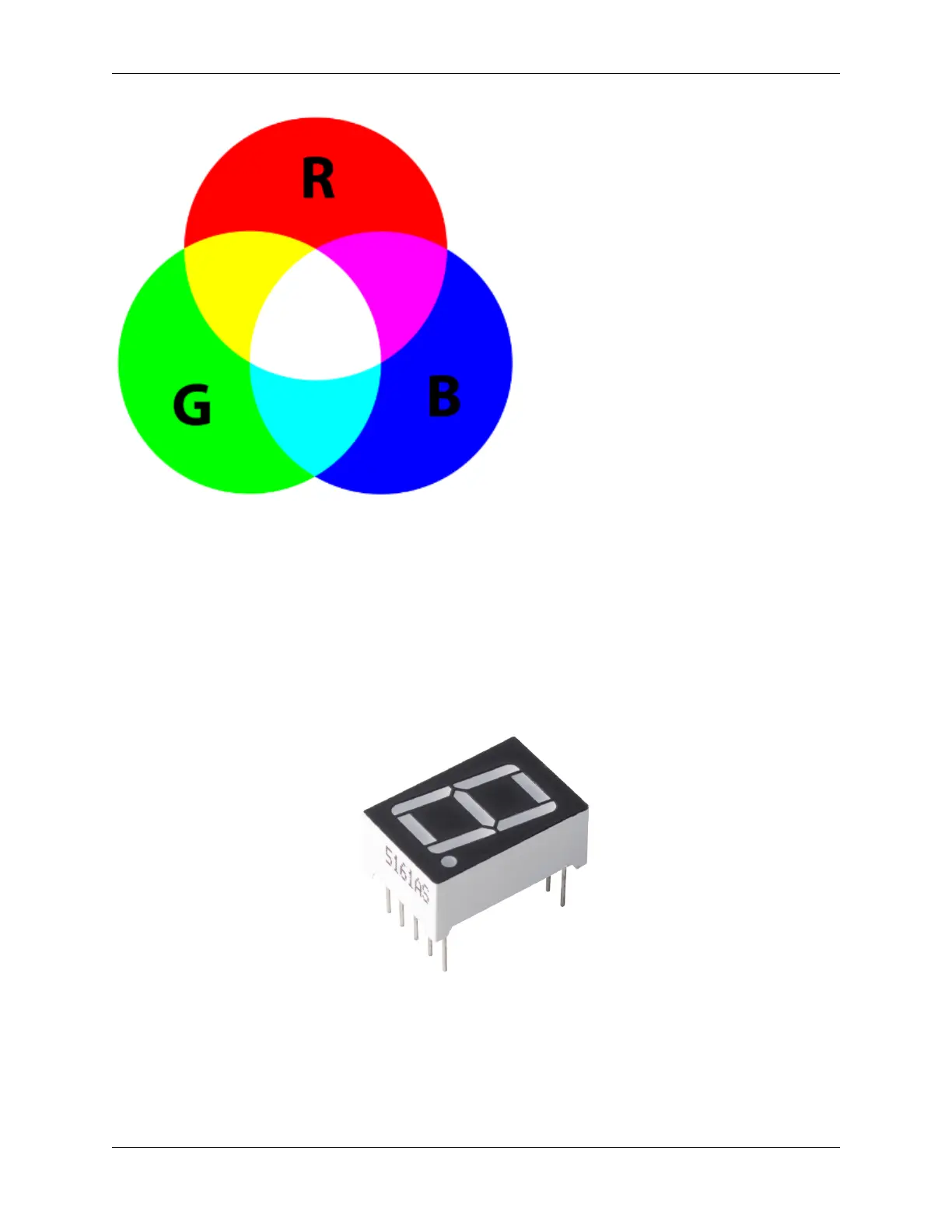

5.12 7-segment Display
A 7-segment display is an 8-shaped component which packages 7 LEDs. Each LED is called a segment - when ener-
gized, one segment forms part of a numeral to be displayed.
• Each of the LEDs in the display is given a positional segment with one of its connection pins led out from the
rectangular plastic package.
• These LED pins are labeled from “a” through to “g” representing each individual LED.
716 Chapter 5. Learn about the Components in Your Kit
