SunFounder ESP32 Starter Kit

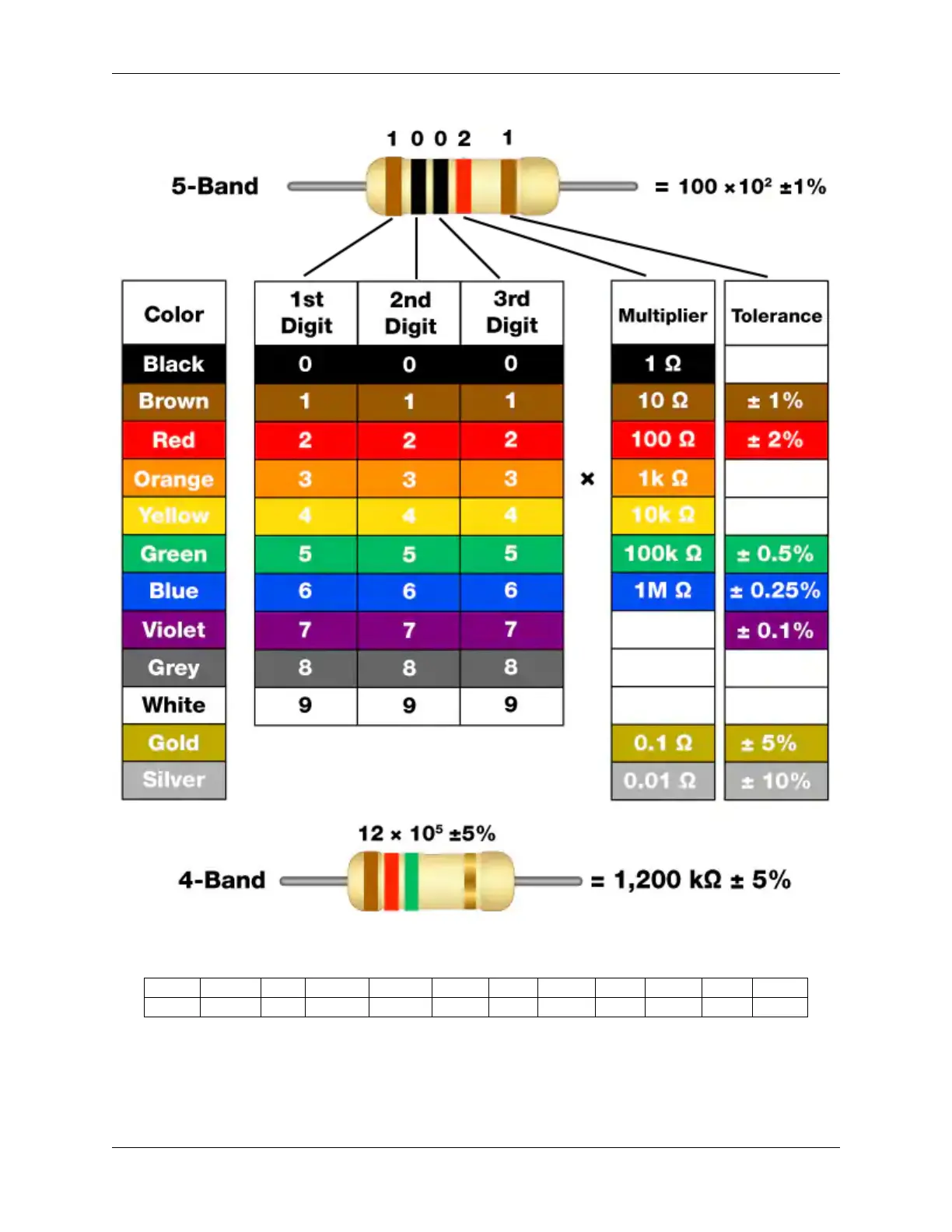

As shown in the card, each color stands for a number.
Black Brown Red Orange Yellow Green Blue Violet Grey White Gold Silver
0 1 2 3 4 5 6 7 8 9 0.1 0.01
The 4- and 5-band resistors are frequently used, on which there are 4 and 5 chromatic bands.
Normally, when you get a resistor, you may find it hard to decide which end to start for reading the color. The tip is
that the gap between the 4th and 5th band will be comparatively larger.
694 Chapter 5. Learn about the Components in Your Kit
