SunFounder ESP32 Starter Kit

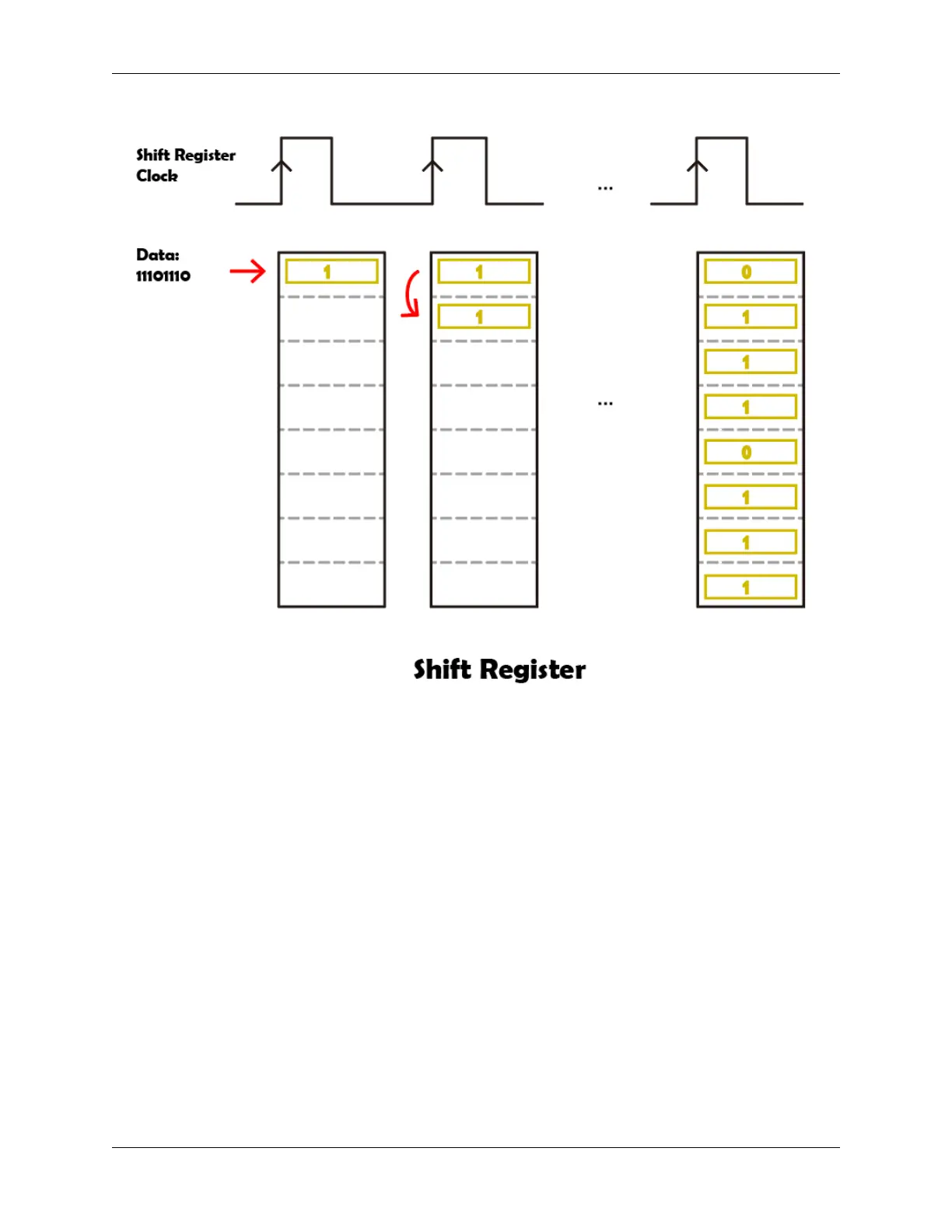

• Storage Register
– When the storage register is in the rising edge state, the data of the shift register will be transferred to the
storage register.
– The storage register is directly connected to the 8 output pins, Q0 ~ Q7 will be able to receive a byte of
data.
– The so-called storage register means that the data can exist in this register and will not disappear with one
output.
– The data will remain valid and unchanged as long as the 74HC595 is powered on continuously.
– When new data comes, the data in the storage register will be overwritten and updated.
704 Chapter 5. Learn about the Components in Your Kit
