SunFounder ESP32 Starter Kit
As we all know, though LCD and some other displays greatly enrich the man-machine interaction, they share a common
weakness. When they are connected to a controller, multiple IOs will be occupied of the controller which has no so
many outer ports. Also it restricts other functions of the controller.
Therefore, LCD1602 with an I2C module is developed to solve the problem. The I2C module has a built-in PCF8574
I2C chip that converts I2C serial data to parallel data for the LCD display.
• PCF8574 Datasheet

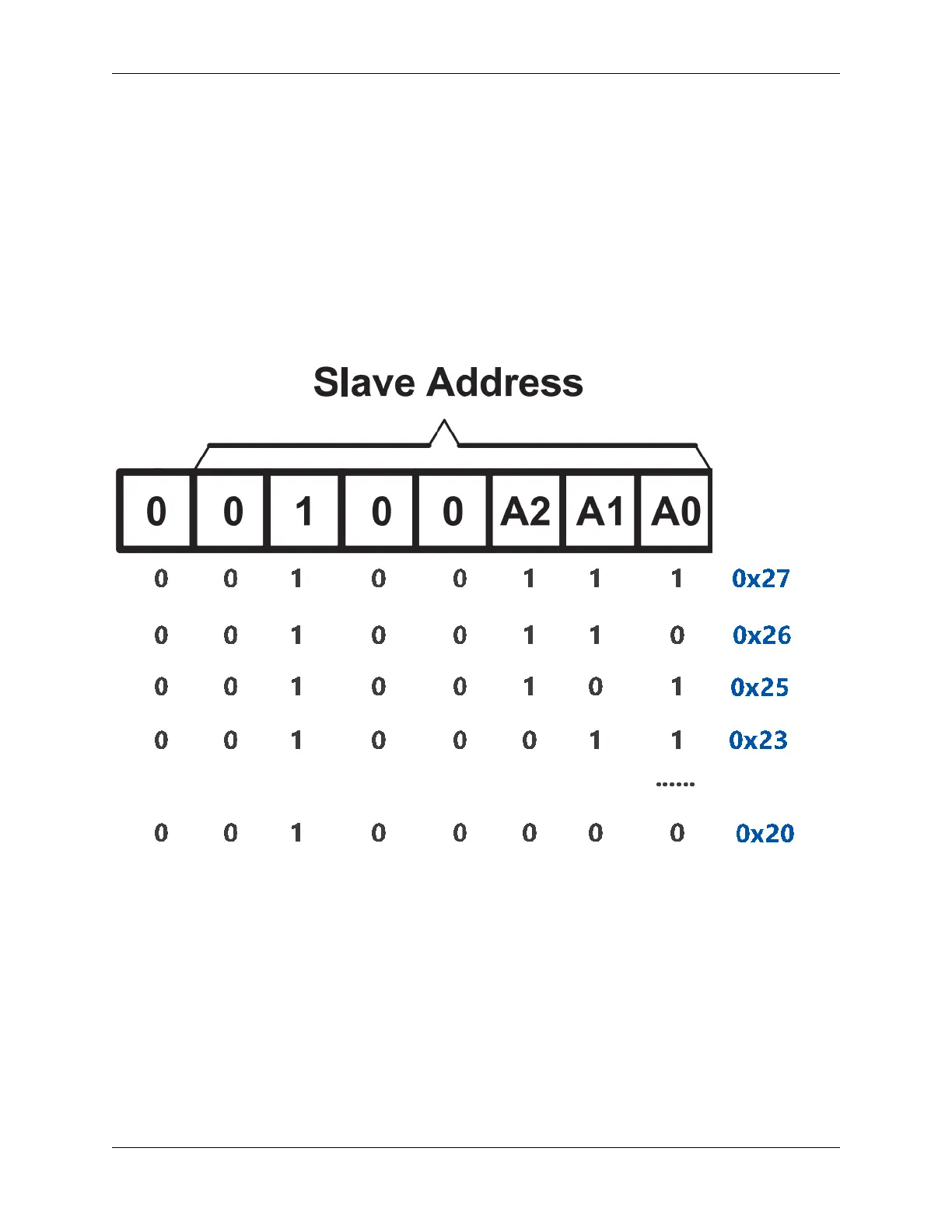

I2C Address
The default address is basically 0x27, in a few cases it may be 0x3F.
Taking the default address of 0x27 as an example, the device address can be modified by shorting the A0/A1/A2 pads;
in the default state, A0/A1/A2 is 1, and if the pad is shorted, A0/A1/A2 is 0.
Backlight/Contrast
Backlight can be enabled by jumper cap, unplugg the jumper cap to disable the backlight. The blue potentiometer on
the back is used to adjust the contrast (the ratio of brightness between the brightest white and the darkest black).
5.13. I2C LCD1602 723
