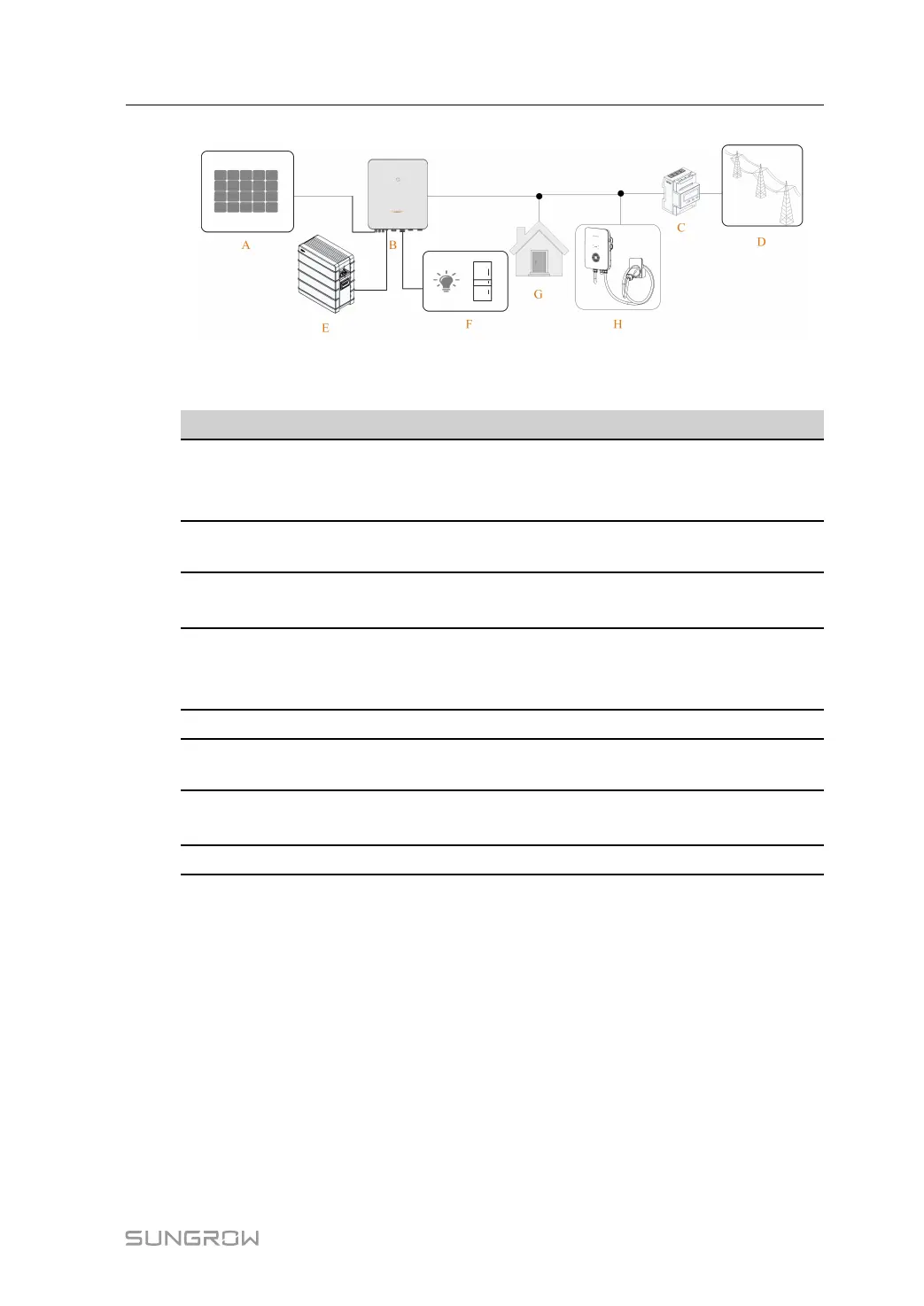

figure 2-8 PV Storage and EV-Charger System
table 2-3 System Compositions
Item
Description Remark
A
PV strings
Compatible with monocrystalline silicon,
polycrystalline silicon, and thin-film without
grounding.
B Inverter
SH5.0RT-20/SH6.0RT-20/SH8.0RT-20/SH10RT-
20
C
Three-phase Smart
Energy Meter
Measures the export power and communicates
with the inverter via the RS485 port.
D
Utility grid
Grid grounding system types: TT, TN, TN-C-S, TN-
S, TN-C, the type of grid grounding system
depends on local regulations.
E
Battery (optional) A Li ion battery from the compatibility list.
F
Backup loads
Protected house loads directly connected to the
inverter.
G Normal Loads
Non protected house loads, they will disconnect in
case of grid failure.
H
EV-Charger(Optional) AC011E-01
2.9 Retrofitting the Existing PV System
The hybrid inverter is compatible with any three-phase PV grid-connected inverters. An ex-
isting PV system can be retrofitted to be a PV ESS with the addition of the hybrid inverter.
The power generation from the existing PV inverter will be firstly provided to the loads and
then charge the battery. With the energy management function of the hybrid inverter, the
self-consumption of the new system will be greatly improved.
