36

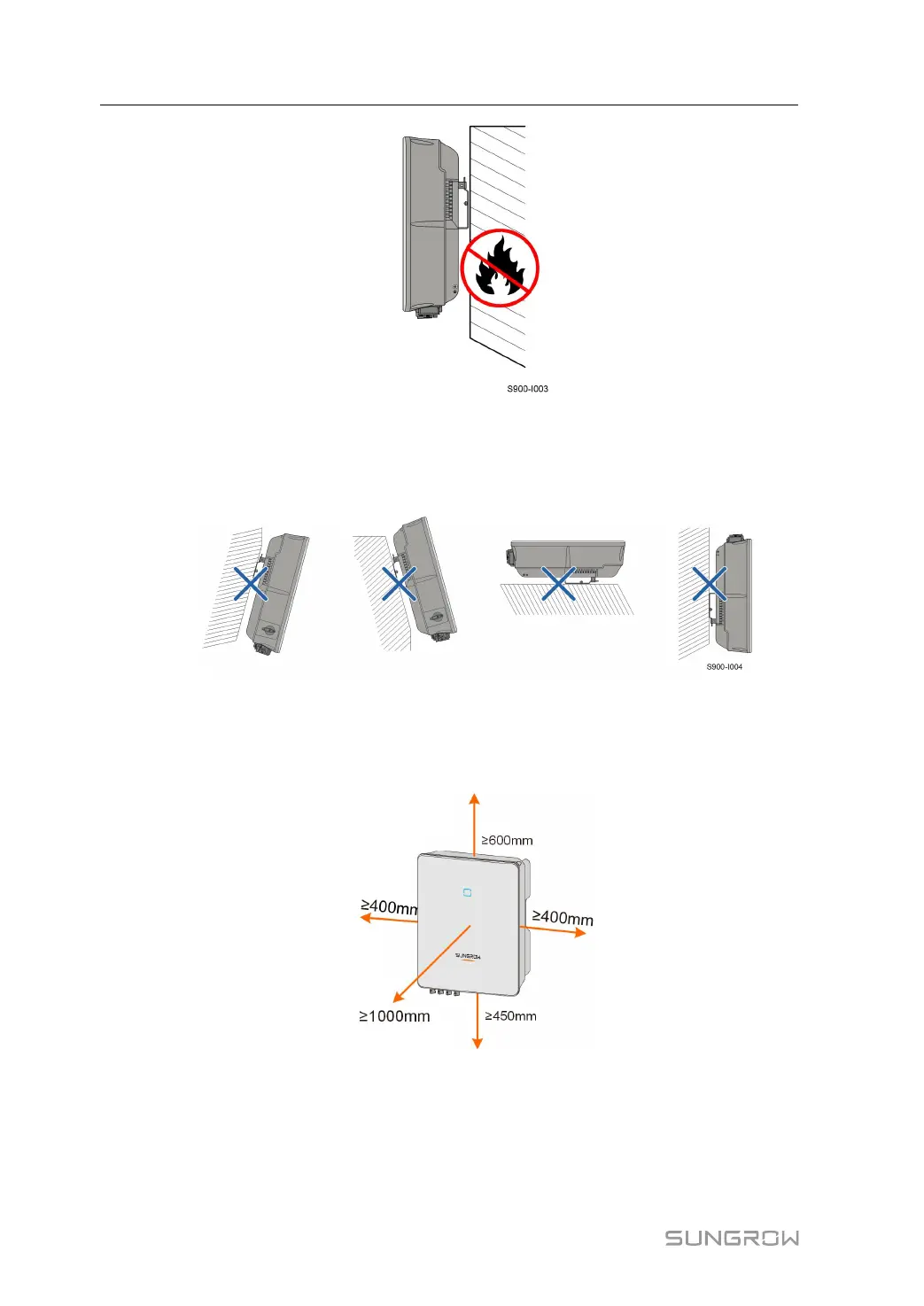

5.2.3 Angle Requirements
Install the inverter vertically. Never install the inverter horizontally, or at forward/backward
tilted, or upside down.
5.2.4 Clearance Requirements
Reserve enough clearance around the inverter to ensure sufficient space for heat
dissipation.
In case of multiple inverters, reserve specific clearance between the inverters.
5 Mechanical Mounting User Manual
