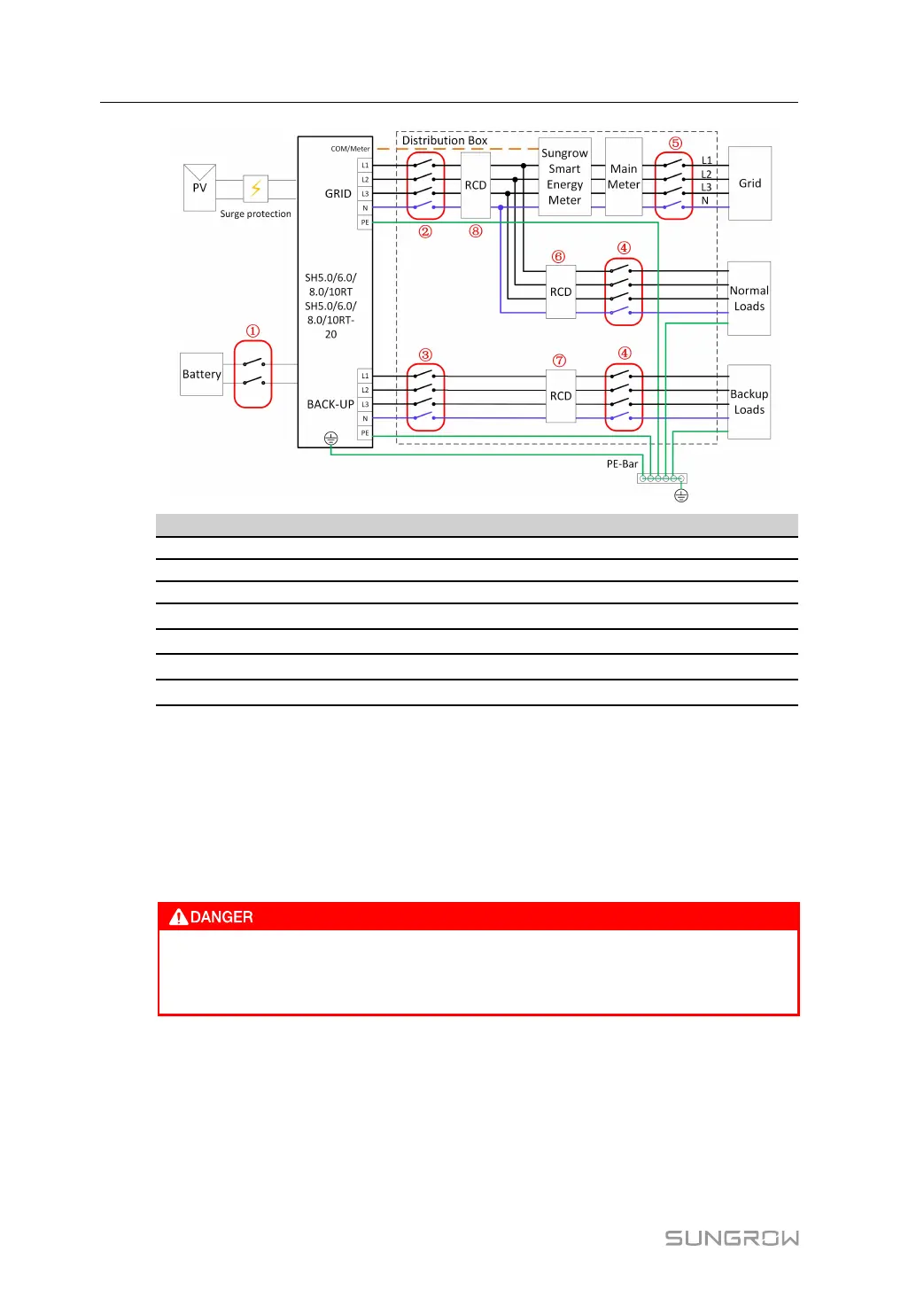

40A/600V DC breaker *
②
32A/400V AC breaker
③
25A/400V AC breaker
④
Depends on loads
⑤
Depends on household loads and inverter capacity
⑥⑦
30mA RCD (Recommended)
⑧
300mA RCD (Recommended)
Note: * If the battery is integrated with a readily accessible internal DC breaker, no additional
DC breaker is required.
Note: The values in the table are recommended values and can be set to other values ac-
cording to actual conditions.
6.4 External Protective Grounding Connection
Electric shock!
• Make sure that the grounding cable is connected reliably. Otherwise, it may
cause electric shock.
