NO. SH5.0/6.0RT/8.0/10RT SH5.0/6.0RT/8.0/10RT-20
④
Depends on loads
⑤
Depends on household loads and inverter capacity
⑥⑦
30mA RCD (Comply with local regulation)
Note: * If the battery is integrated with a readily accessible internal DC breaker, no additional
DC breaker is required.
Note: The values in the table are recommended values and can be set to other values ac-
cording to actual conditions.
Backup Wiring Diagram (Other Countries)
The following diagram is an example for grid systems without special requirement on wiring
connection.
NO. SH5.0/6.0RT/8.0/10RT SH5.0/6.0RT/8.0/10RT-20
①
40A/600V DC breaker *
②
32A/400V AC breaker
③
25A/400V AC breaker
④
Depends on loads
⑤
Depends on household loads and inverter capacity (Optional)
⑥⑦
30mA RCD (Recommended)
⑧
300mA RCD (Recommended)
Note: * If the battery is integrated with a readily accessible internal DC breaker, no additional
DC breaker is required.
Note: The values in the table are recommended values and can be set to other values ac-
cording to actual conditions.

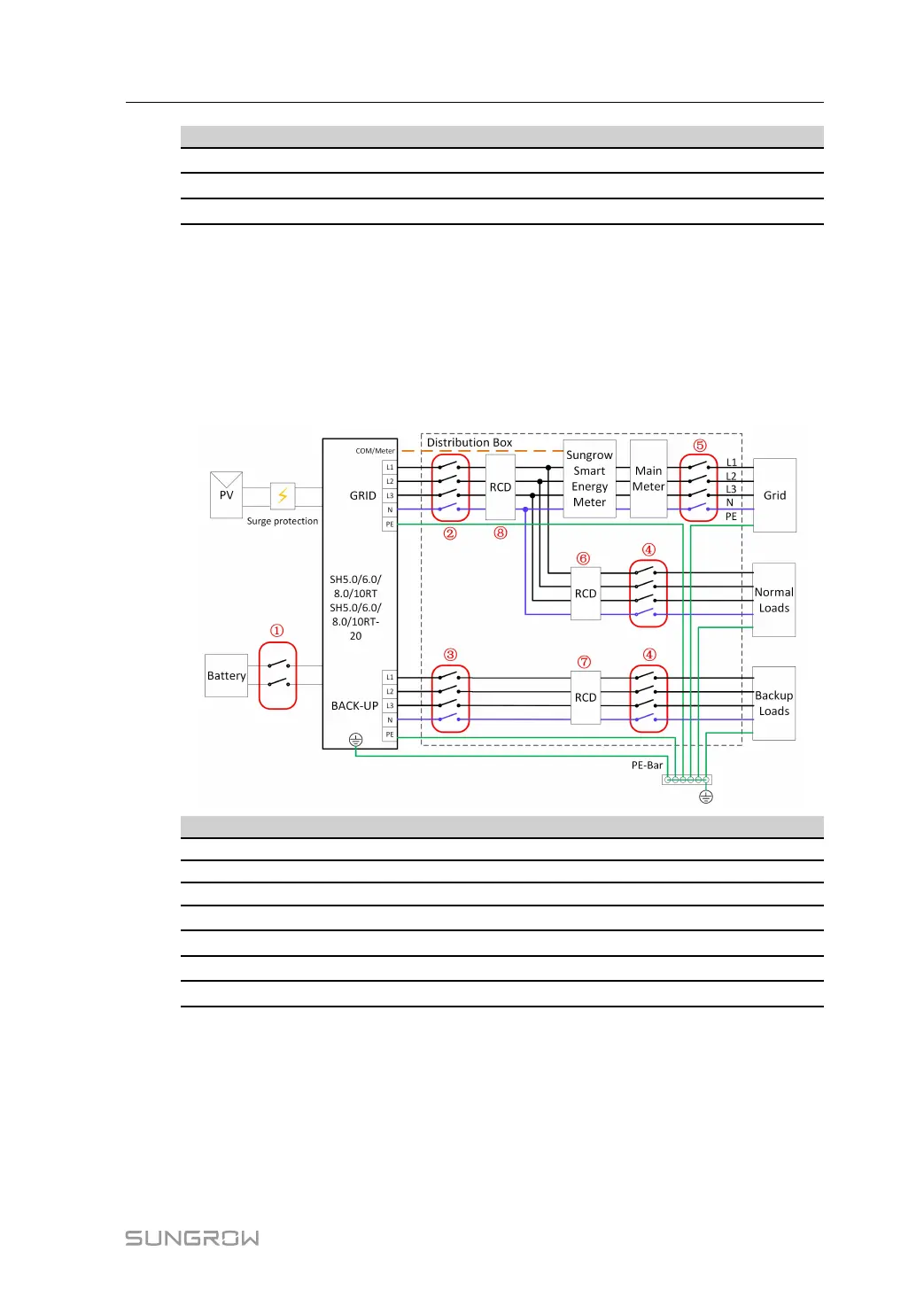

Backup Wiring Diagram TT System
The following diagram is an example for grid systems without special requirement on wiring
connection.
User Manual 6 Electrical Connection
