66
step 3 Refer to the guide delivered with the module for the set-up.
- - End

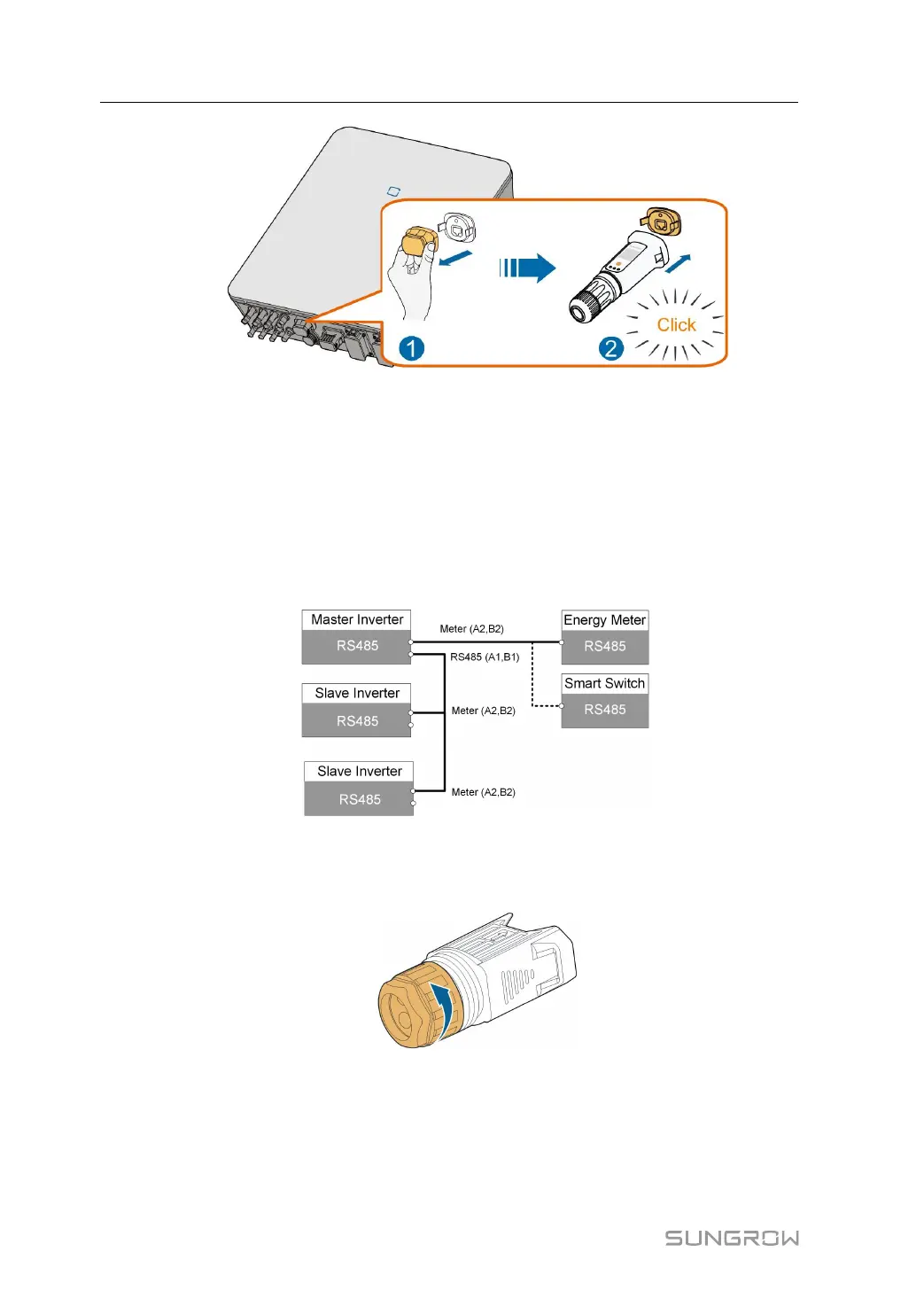

6.7.3 RS485 Connection
Where there is only one inverter, the RS485 can be connected to an external device for the
communication.
Where there are two or more inverters in parallel, the RS485 connection enables the com-
munication between master inverter and slave inverter, as shown in the following figure.
6.7.3.1 Assembling the COM Connector
step 1 Unscrew the swivel nut from the connector.
step 2 Take out the terminal block.
6 Electrical Connection User Manual
