67

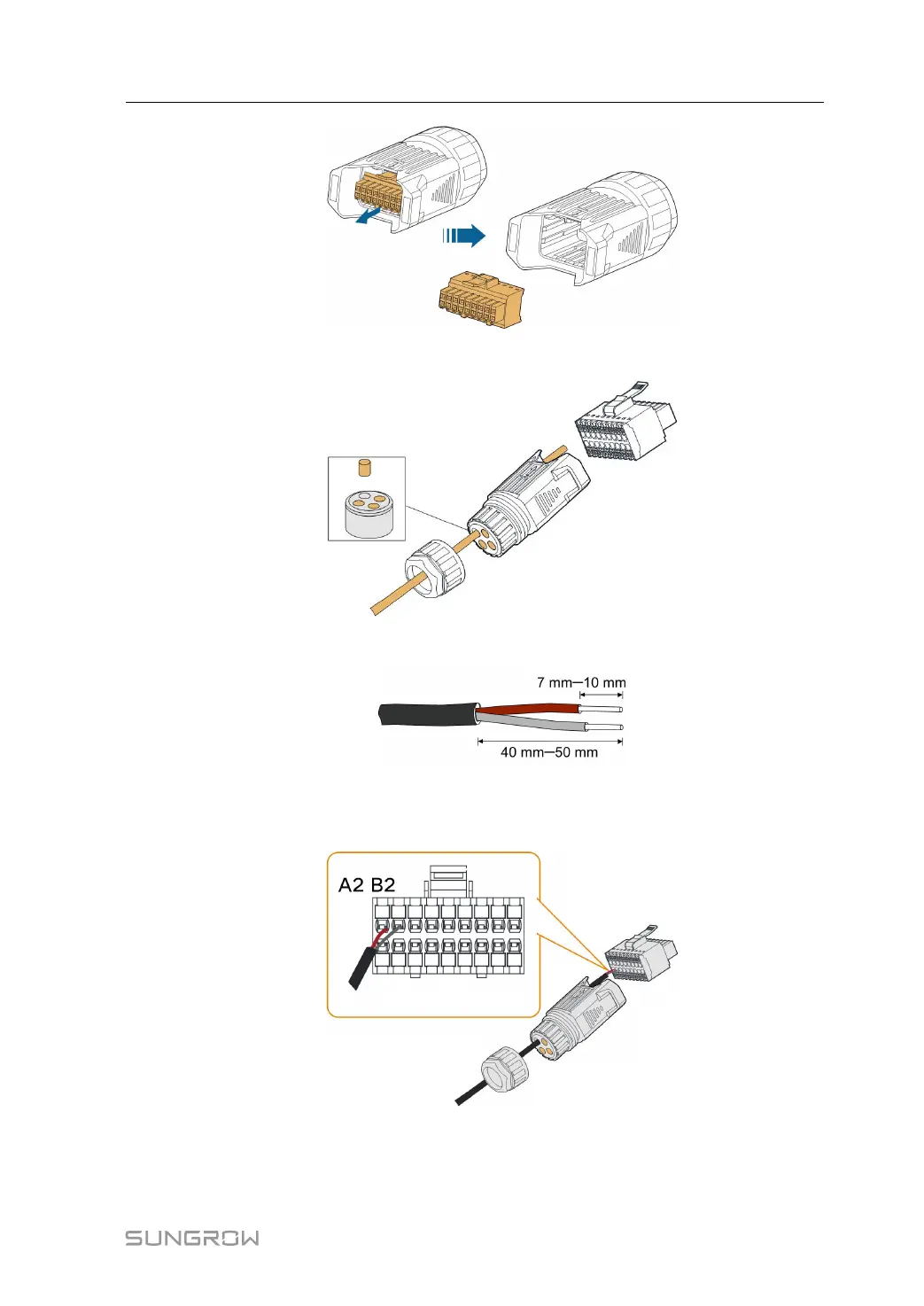

step 3 Remove the seal and lead the cable through the cable gland.
step 4 Remove the cable jacket and strip the wire insulation.
step 5 Plug the wires into the RS485 terminal according the labels on the bottom of the inverter.
For example for connecting the energy meter, connect the RS485 cables to A2,B2.
step 6 Pull the wires outward to check whether they are firmly installed.
step 7 Insert the terminal block into the connector until it snaps into place with an audible click.
User Manual 6 Electrical Connection
