Note:
1 In zero-export scenario, the hybrid inverter can only ensure no power exported to grid it-
self but does not ensure zero export for the PV inverter. Please contact the PV inverter
manufacturer for its zero-export solution.
2 PV modules for hybrid inverter are optional.
2.10 Retrofitted PV Storage and EV-Charging System
The retrofitted PV storage and charging system is as follows:

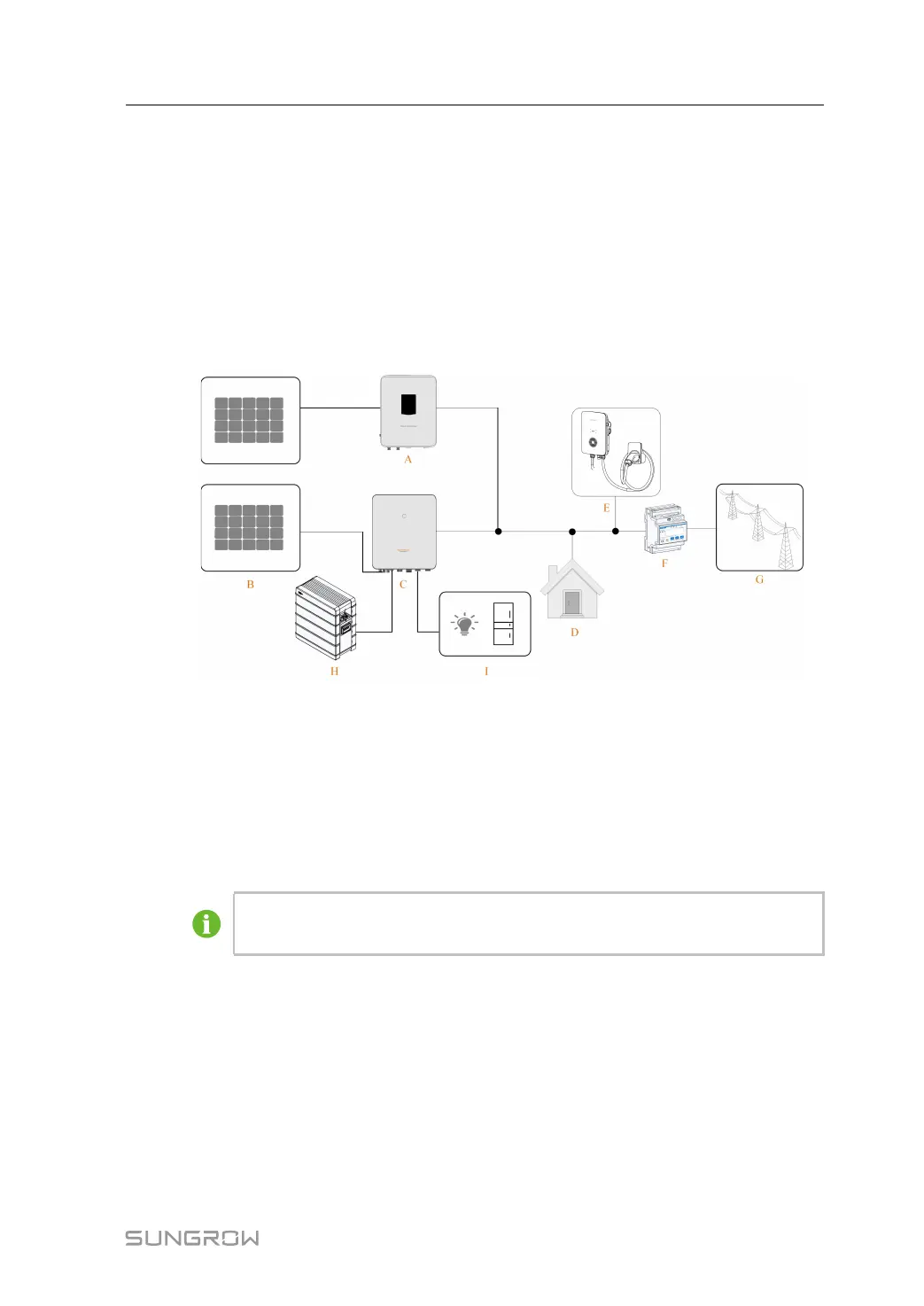

figure 2-11 Retrofitted PV Storage and EV-Charger System
(A) PV Inverter (B) PV Strings (C) SH5.0RT-20/SH6.0RT-
20/SH8.0RT-20/SH10RT-
20
(D) Home Loads (E) EV Charger (F) Smart Energy Meter
(G) Utility Grid (H) Battery (I) Backup Loads
If the EV-Charger is connected to one Hybrid inverter, it is not possible to use
multiple hybrid inverters in parallel.
