6.7 Communication Connection
LAN function
• Through the Modbus TCP/IP protocol, the EMS or the Logger from the third party can
fully control the on/off, derating, charging and discharging of the inverter.
WLAN function
With the WiNet-S module installed, view corresponding information through iSolarCloud App
or iSolarCloud Web.
RS485 function
The RS485 communication interfaces are used to establish communication connection with
monitoring devices.
6.7.1 Ethernet Connection
6.7.1.1 Assembling the LAN Connector

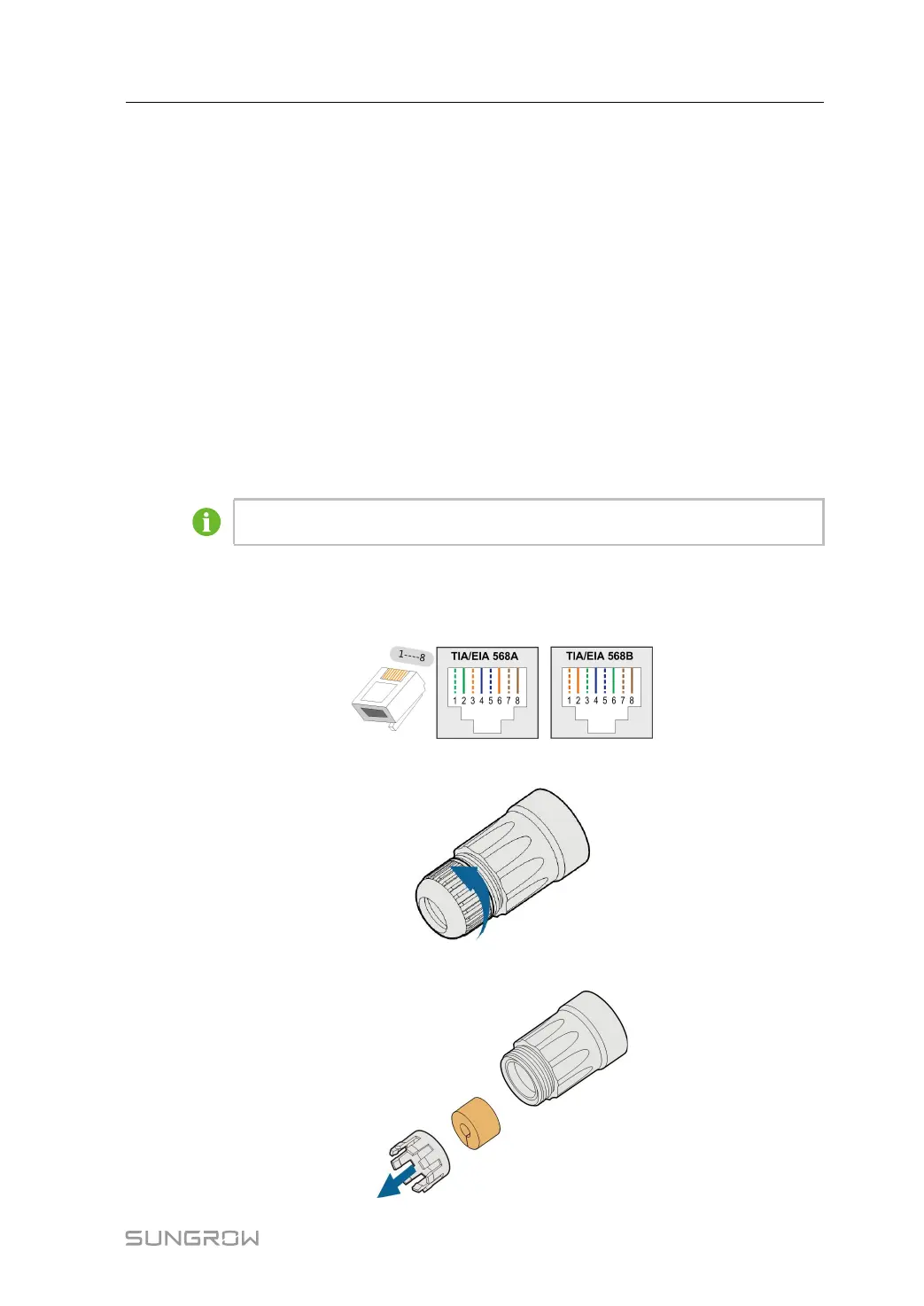

Skip step 1 if the standard network cable with RJ45 plug is prepared.
step 1 (Optional) Strip the insulation layer of the communication cable with an Ethernet wire strip-
per, and lead the corresponding signal cables out. Insert the stripped communication cable
into the RJ45 plug in the correct order, and crimp it with a crimper.
step 2 Unscrew the swivel nut from the connector.
step 3 Remove the inner rubber gasket.
User Manual 6 Electrical Connection
