80
step 8 Fasten the swivel nut.
- - End

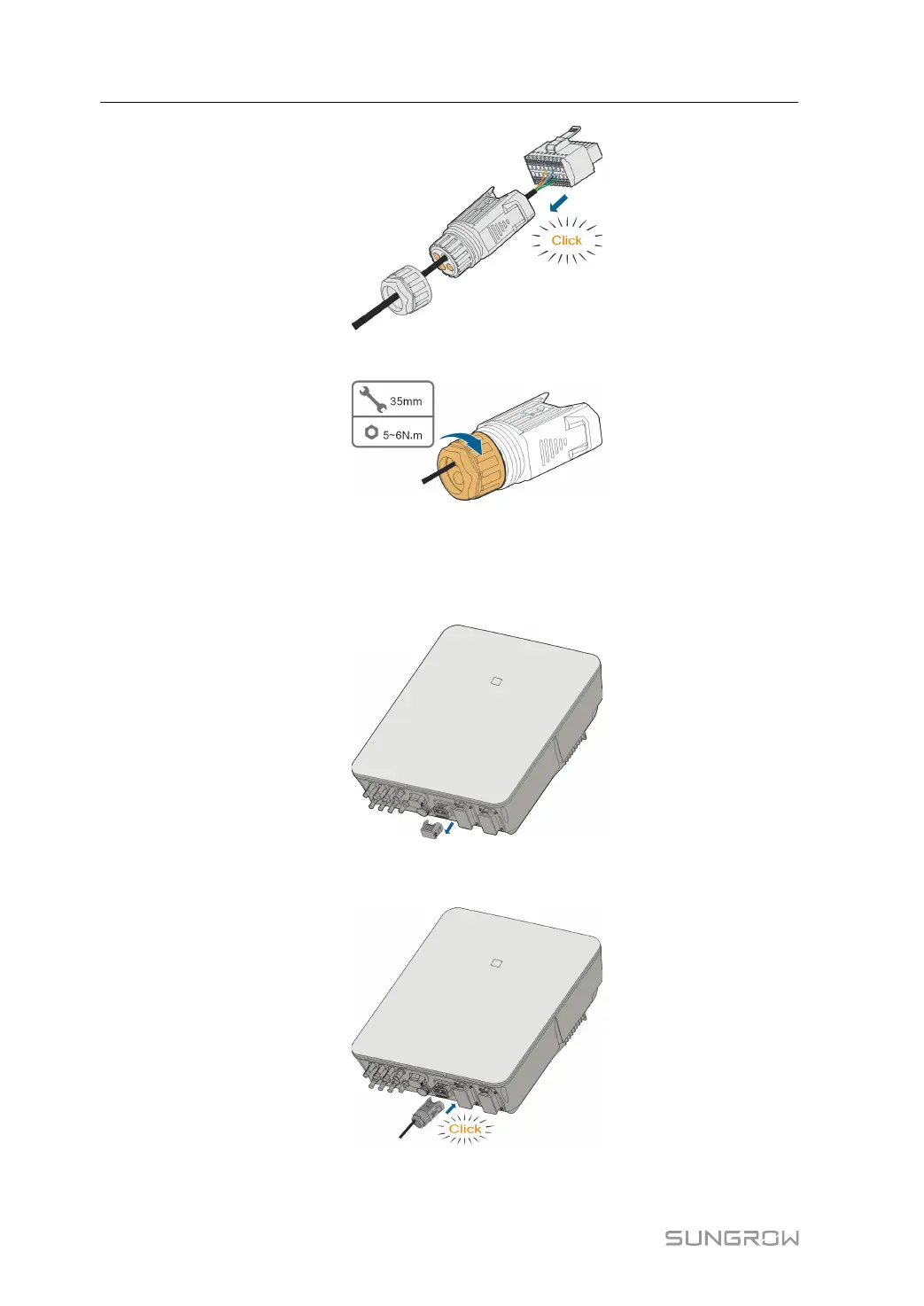

6.12.2 Installing the COM Connector
step 1 Remove the waterproof lid from the COM terminal.
step 2 Insert the COM connector into COM terminal on the bottom of the inverter until there is an
audible click.
step 3 Pull cables outwards to confirm whether they are fastened firmly.
6 Electrical Connection User Manual
