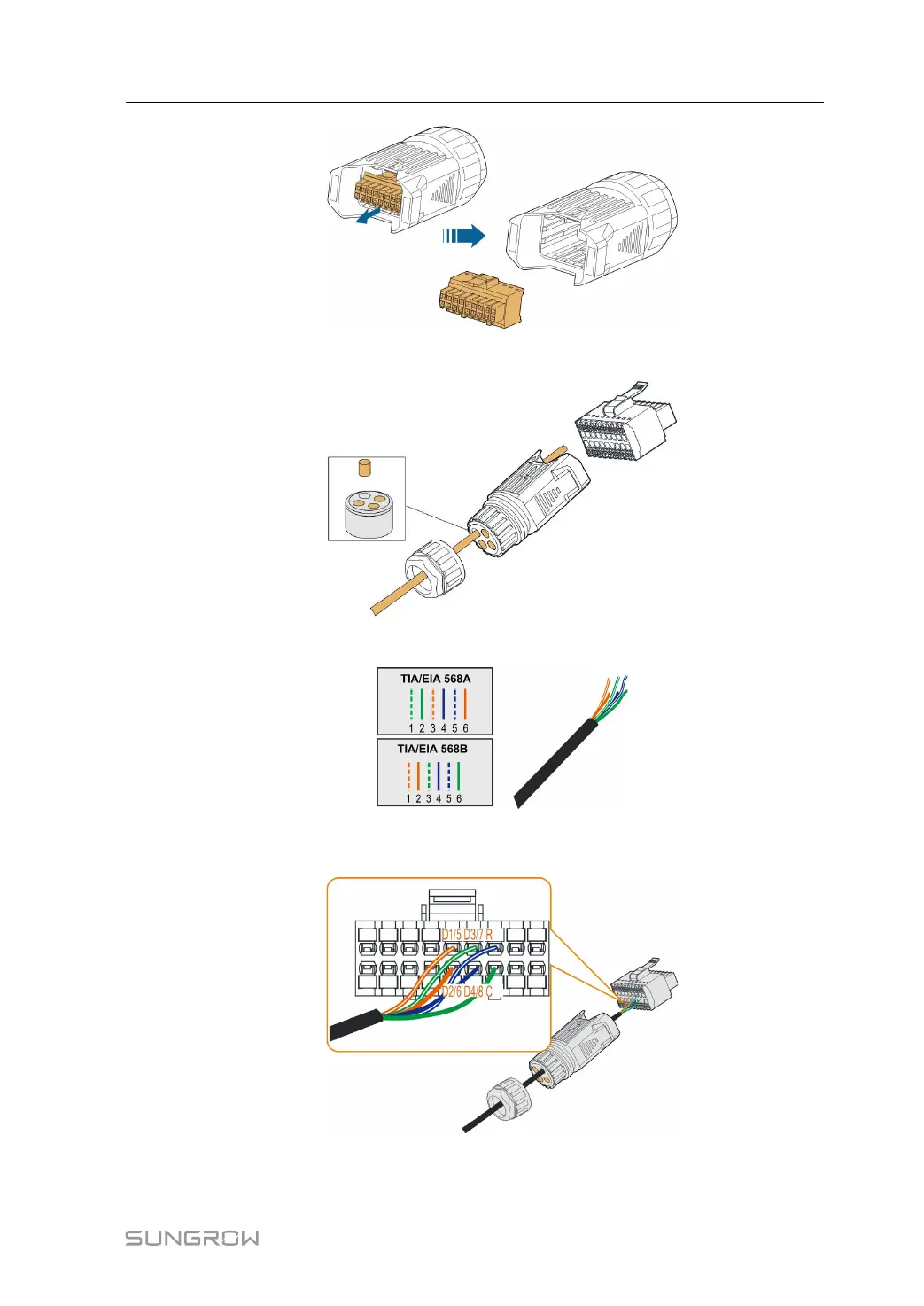

step 3 Remove the seal and lead the cable through the cable gland.
step 4 Remove the cable jacket by 7 mm–10 mm.
step 5 Plug the wires into the corresponding terminal according the labels on the bottom of the
inverter.
step 6 Pull the wires outward to check whether they are firmly installed.
step 7 Insert the terminal block into the connector until it snaps into place with an audible click.
