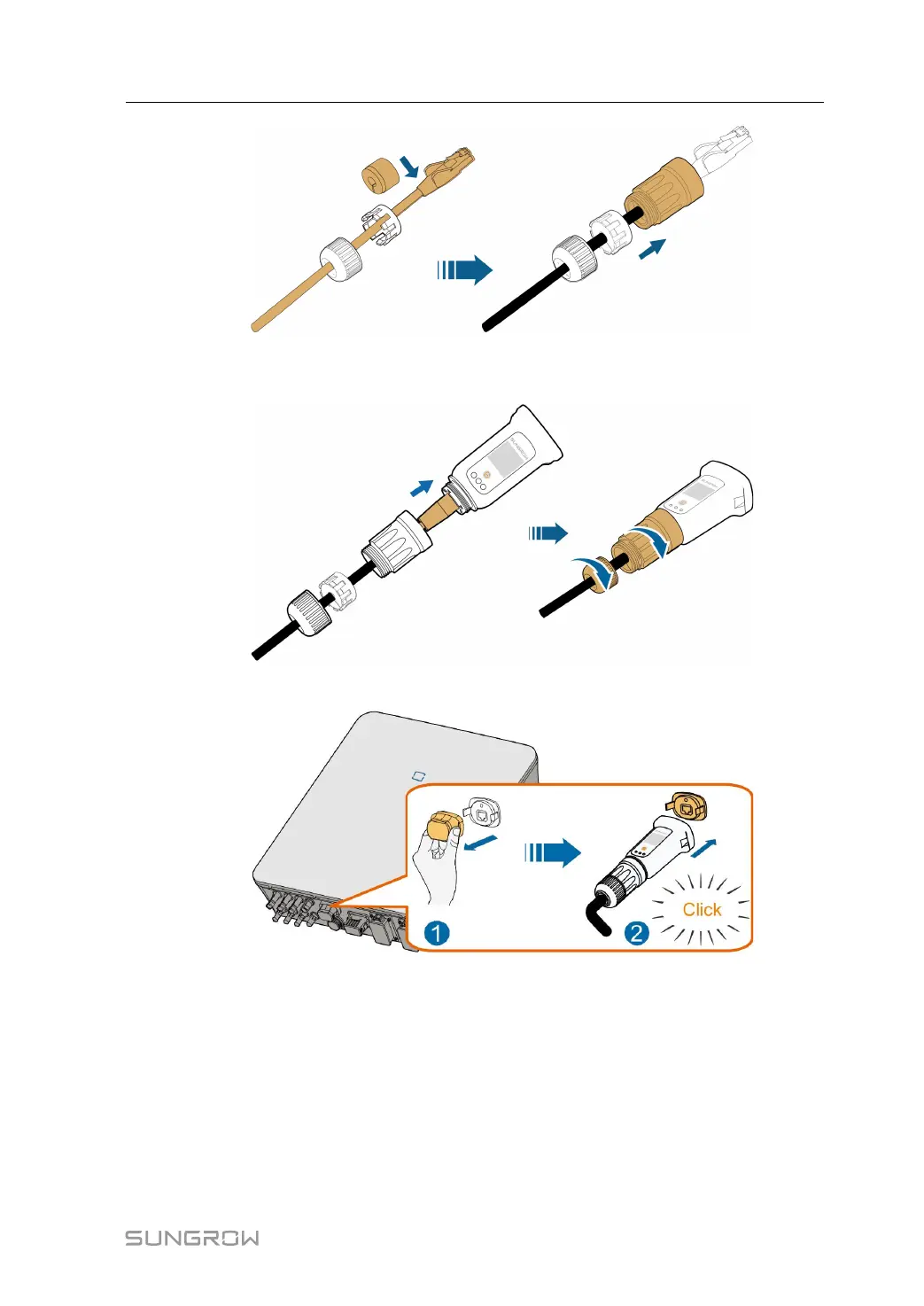

step 5 Insert the RJ45 plug into the front plug connector until there is an audible click and tighten
the housing. Install the gasket and fasten the swivel nut.
step 6 Remove the waterproof lid from the WLANterminal and install WiNet-S.
step 7 Slightly shake it by hand to determine whether it is installed firmly.
- - End
6.7.2.2 WLAN Communication
step 1 Remove the waterproof lid from the WLAN terminal.
step 2 Install the module. Slightly shake it by hand to determine whether it is installed firmly, as
shown below.
