2 System Solution User Manual
10

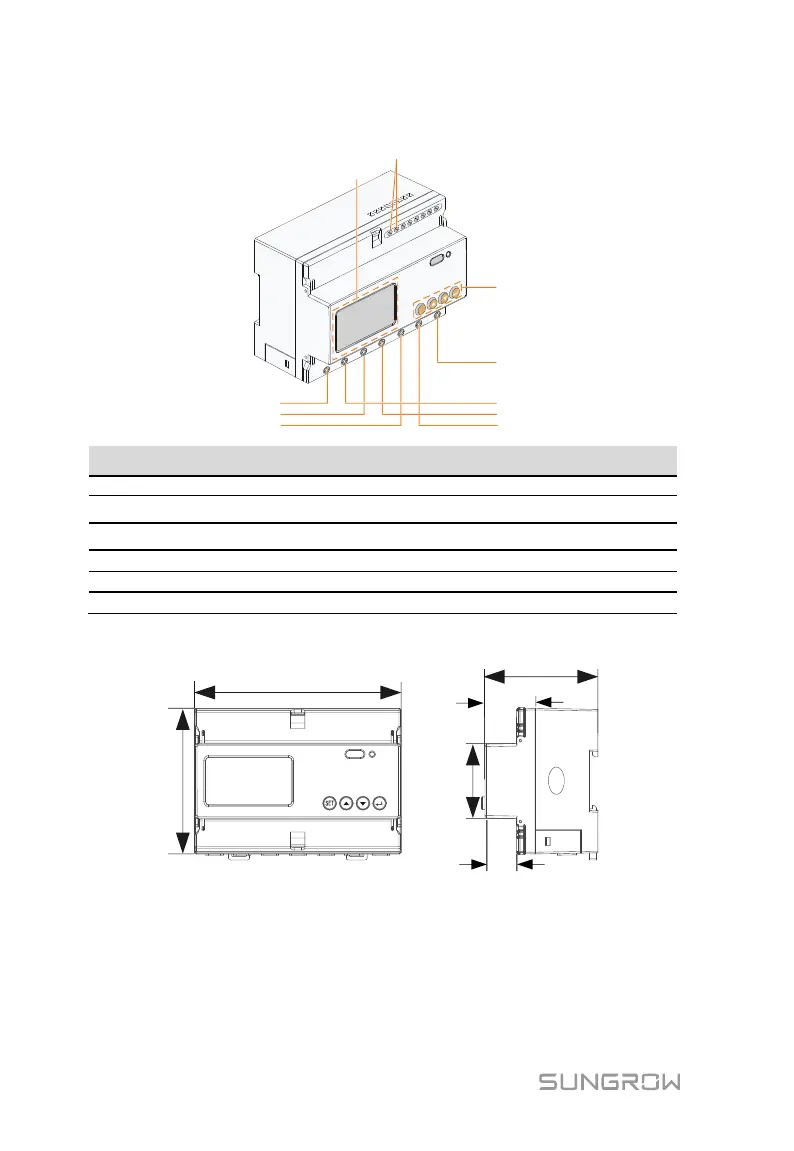

Three-phase Energy Meter and its terminals are shown in the following figure.
A
D
B
C
S
E
T
E
F
Designation
Specification
A
21, 22
RS485 communication terminals
B
LCD screen
Display active energy and reactive energy, etc.
C
L1, L2, L3
Input terminals from grid side
D
L1’, L2’, L3’,
Output terminals to load side
E
N
Neutral terminal
F
Keys
Set key, up key, down key and enter key
The dimensions of three-phase Energy Meter are shown as below.
Front view Side view
126.5
88.2
69.5
31.5
45.4
19.5
Fig. 2-5 Three-phase Energy Meter Dimensions (unit: mm)
