Torx screwdriver
TX30
Socket wrench
Open end: 10mm (for M6
bolts)
13mm (for M8 bolts)
16mm (for M10 bolts)
5.4 Installing the Inverter
Install the inverter on the wall by means of the wall-mounting bracket and
expansion plug sets.
Self-tapping screw M6 Spring washerFender washerExpansion tube

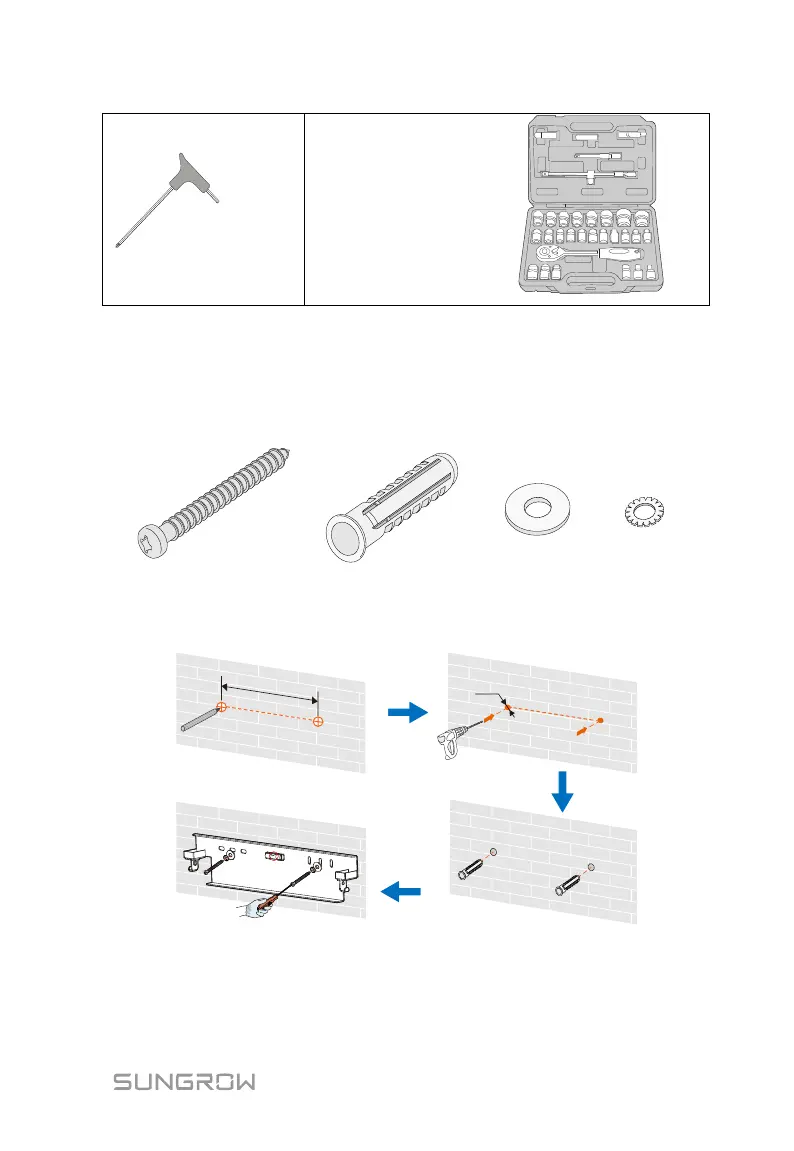

1. Install the wall-mounting bracket.
240
D10
Mark the positions
Drill holes
Place expansion tubes
Secure the bracket
mm
Note:
(1) The depth of the holes should be about 70 mm.
