Sungrow SH3K6 - PV Input Configuration

6 Electrical Connection User Manual
44
6.4.1 PV Input Configuration
Independent Mode
The two PV inputs work independently, each with its own MPPT. The two PV
inputs can be different from each other in PV module types, numbers of PV

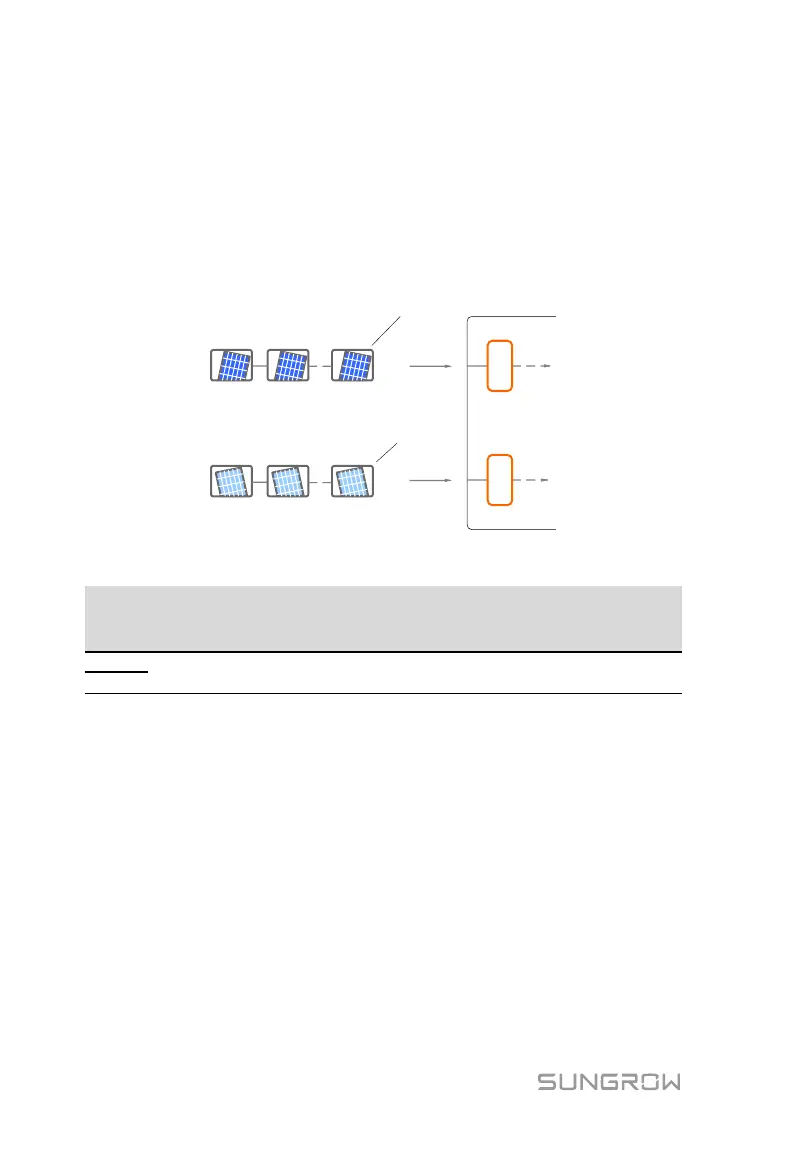

panels in PV strings, tilt angles and orientation angles of PV modules. The
following figure details the need for a homogenous PV string structure for
maximum power.
MPPT2MPPT1
Inverter Inside
PV Input 1
PV Input 2
Prior to connecting the inverter to PV inputs, the specifications in the following
table should be met:
Area
DC Power
Limit for
Each Input
Total DC
Power Limit
Open-circuit
Voltage Limit
for Each Input
Short circuit
Current Limit
for Each Input
DC1
5600 W
6500 W
600 V
12 A
DC2
Parallel Mode
Both PV strings should have the same type, the same number of PV panels,
identical tilt and identical orientation. Two trackers are configured in parallel to
handle power and/or current levels higher than those a single tracker can
handle.
