5 Mechanical Mounting User Manual
30

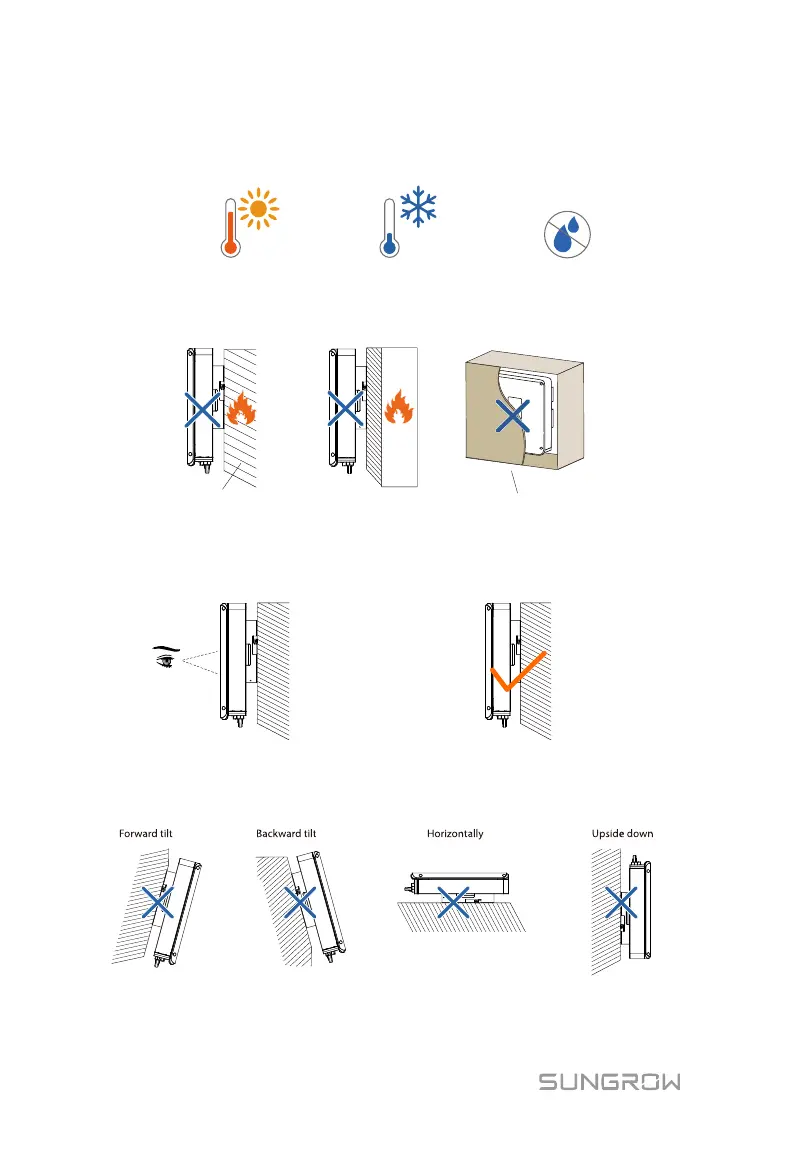

4. The max. power output will reduce when the ambient temperature
exceeds 45°C. The following figure shows the ambient temperature and
relative humidity limits.
Max.
+60°C
Min.
-25°C
Max. RH
+100%
5. Only mount the inverter on a non-flammable surface or a wooden
structure. Keep away from flammable materials or gas. Do not enclose
the inverter into a tight confinement.
Flammable wall
Flammable material or
gas near the installation
Closed Cabinet
6. Prevent the inverter from direct exposure to sun, rain and snow.
7. Install at eye level for easy
inspection.
8. Install vertically for good heat
dissipation.
9. Never install the inverter horizontally, or with a forward tilt or with a
backward tilt or even with upside down. The horizontal installation can
result in damage to the inverter.
10. Clearance requirement and multiple installation:
