Select appropriate cord end terminal according to the cable cross-section area.

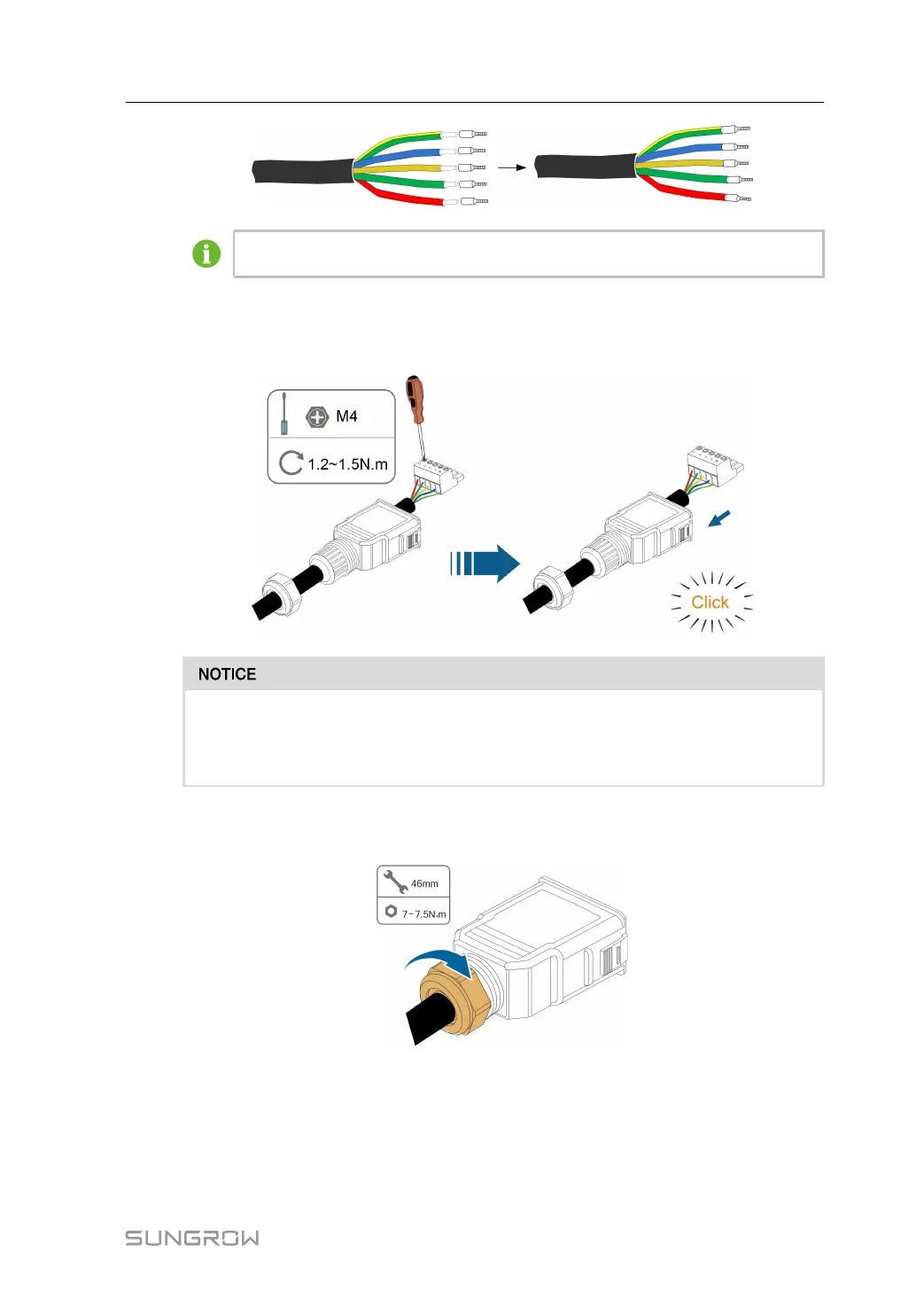

step 7 Fix all the wires to the terminal plug according to the assignment and tighten to a torque of
1.2 N•m–1.5 N•m with a screwdriver. Then push the terminal plug into the housing until there
is an audible click.
Observe the plug assignment. Do not connect any phase line to the "PE" terminal
or the PE wire to the "N" terminal. Otherwise, unrecoverable damage to the inverter
may follow.
step 8 Ensure that the wires are securely in place by slightly pulling them. Tighten the swivel nut to
the housing.
- - End
