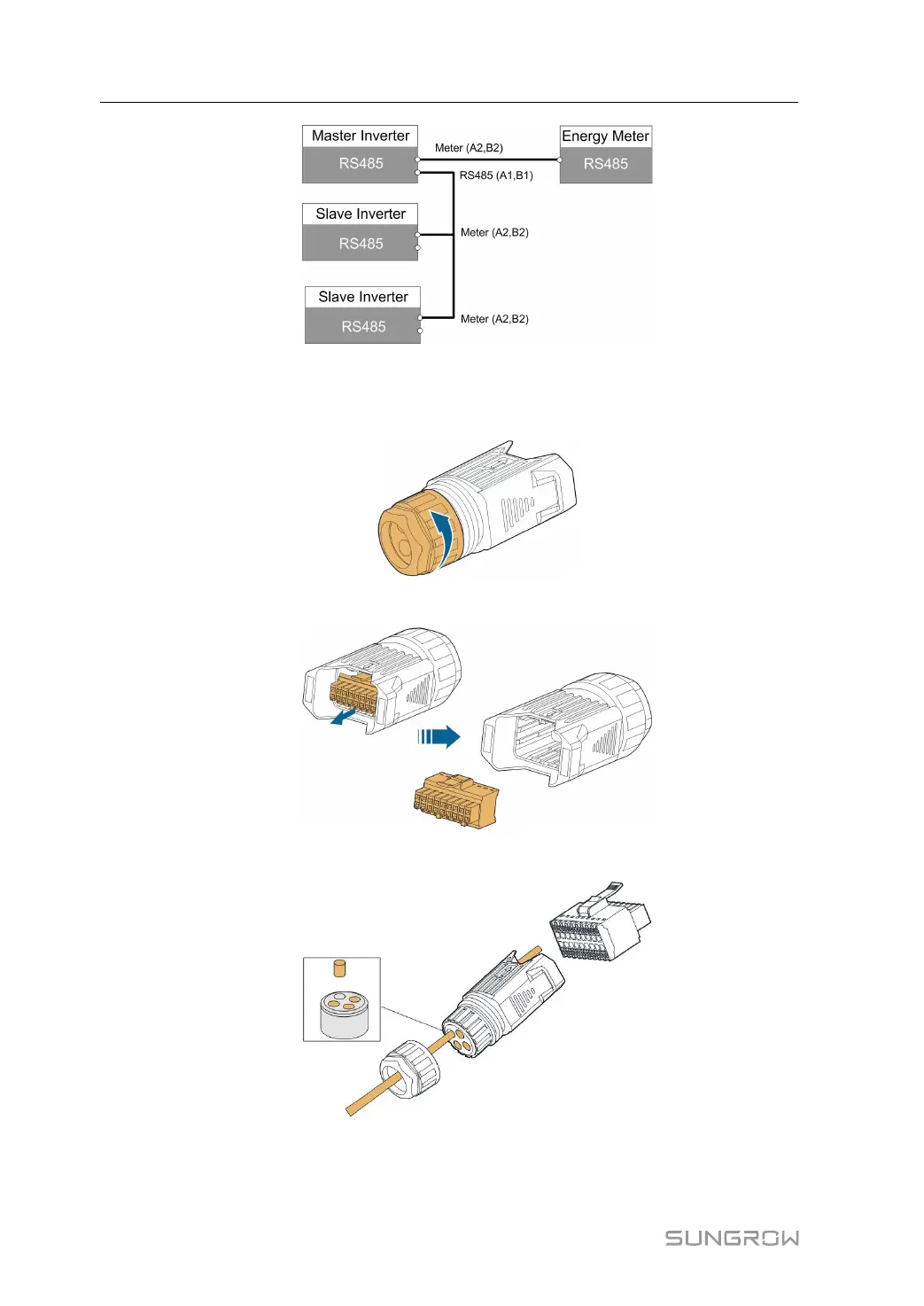

6.7.3.1 Assembling the COM Connector
step 1 Unscrew the swivel nut from the connector.
step 2 Take out the terminal block.
step 3 Remove the seal and lead the cable through the cable gland.
step 4 Remove the cable jacket and strip the wire insulation.
