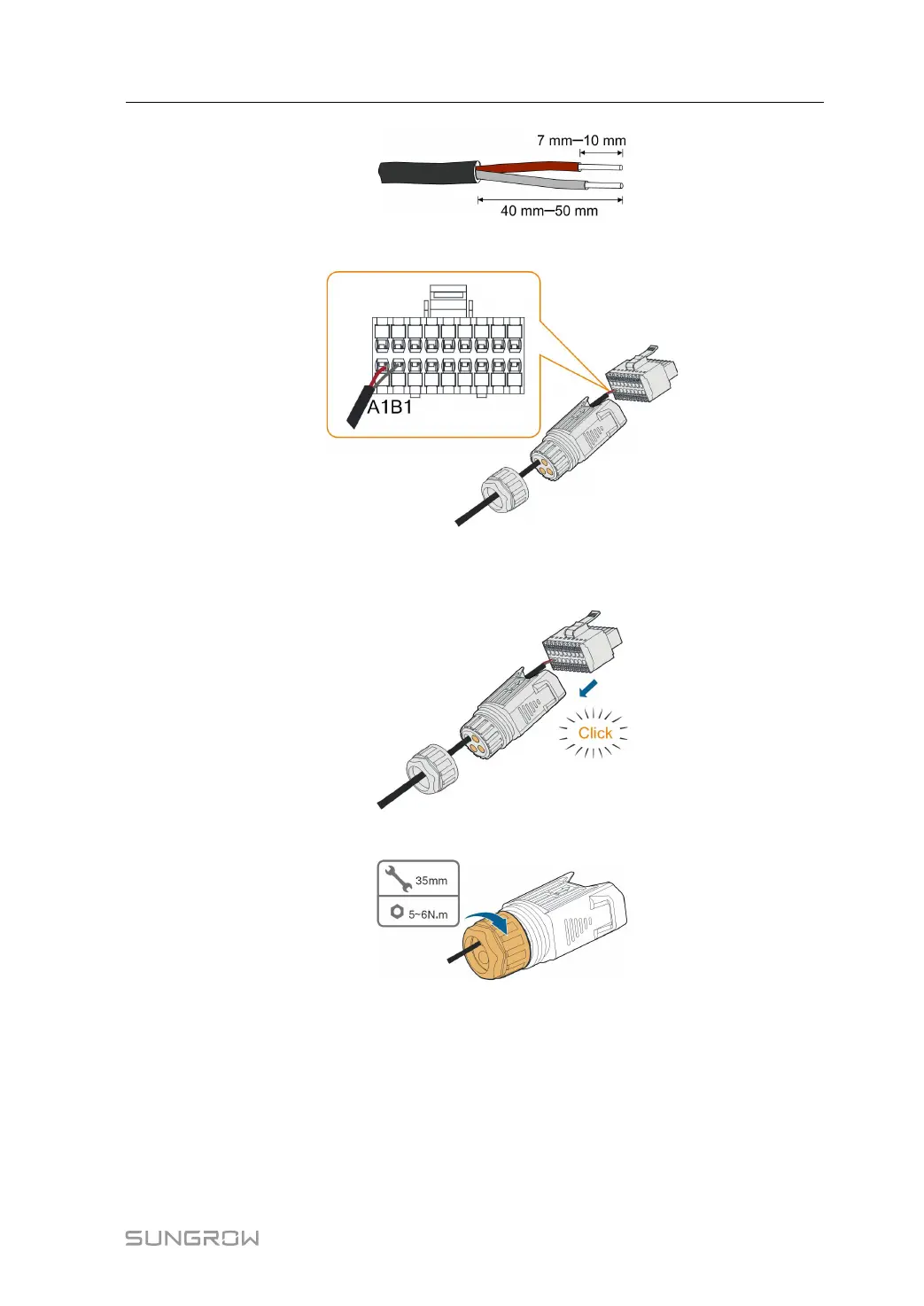

step 5 Plug the wires into the RS485 terminal according the labels on the bottom of the inverter.
step 6 Pull the wires outward to check whether they are firmly installed.
step 7 Insert the terminal block into the connector until it snaps into place with an audible click.
step 8 Fasten the swivel nut.
- - End
6.7.3.2 Installing the COM Connector
step 1 Remove the waterproof lid from the COM terminal.
