OPERATION & MAINTENANCE MANUAL SWE155F

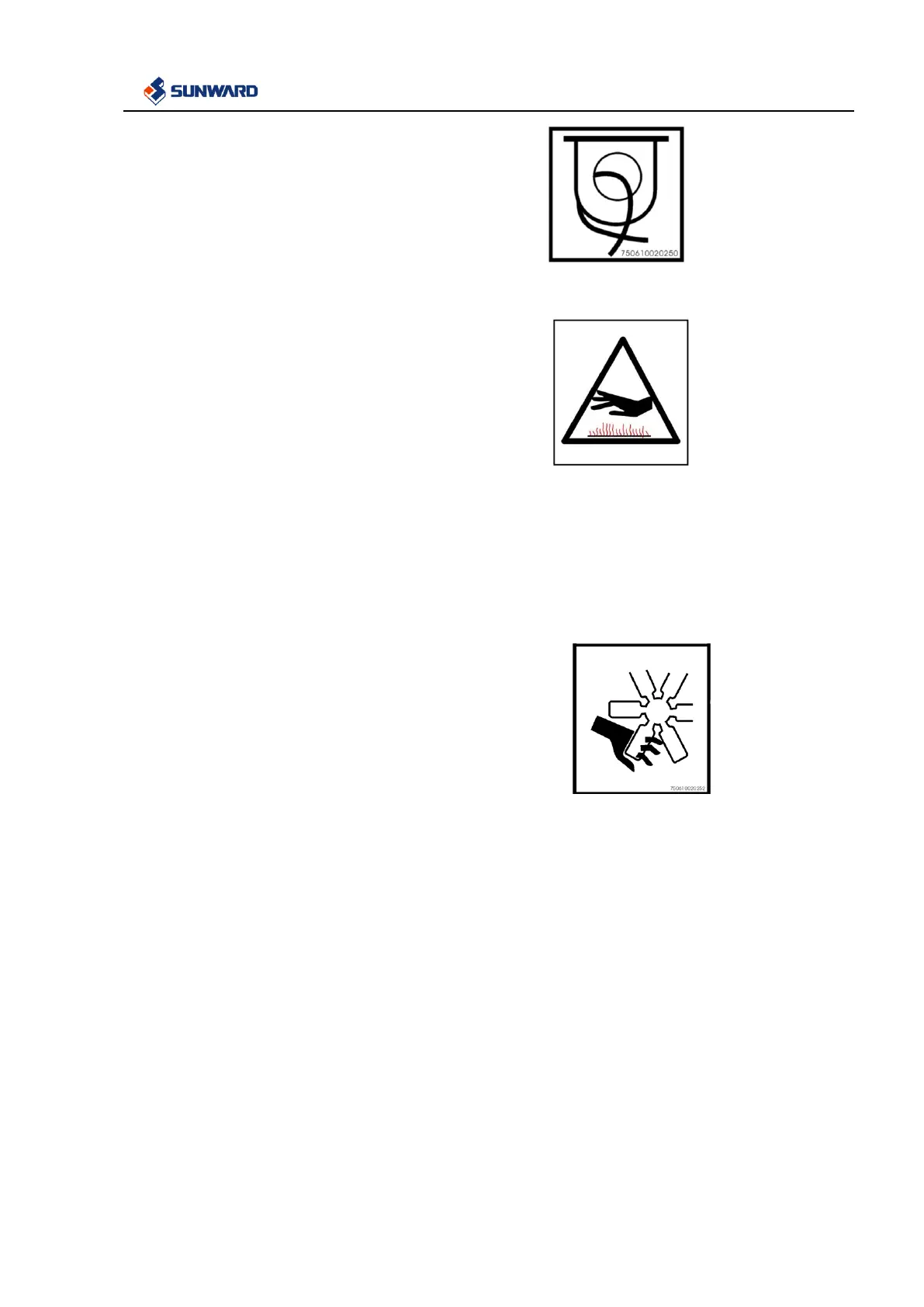

(13) Traction Hook
(14) Anti- scald Label
After running operation, engine oil, gear oil and
hydraulic oil is getting hot, so do engine, hoses,
pipelines or other components. Be cautious of
scalding.
Attempt inspection and maintenance procedure, after
machine components and oil cool down.
There is pressure in hydraulic oil tank. Relieve
pressure before opening cap to avoid oil spurt.
There is pressure which builds up in hydraulic piping.
Relieve pressure prior to repair or replacing.
（15）Preventing Hand Caught by Fan
Fan would run at high speed while engine is active.
Pay much attention to prevent hand, foot, hair and
clothing being caught in fan blade, when attempting
any inspection and maintenance procedures on
machine.
(16) Operation Label
This machine is equipped with two pilot control
handle and two travel control lever which control
working device motion, swing action of upper
structure, machine travel accordingly.
The right pilot handle controls motions as below：
a. boom rise
b. boom fall
c. backhoe loading , or grab bucket rotate clockwise
d. backhoe dumping, or grab bucket rotate
anticlockwise.
