OPERATION & MAINTENANCE MANUAL SWE155F
10

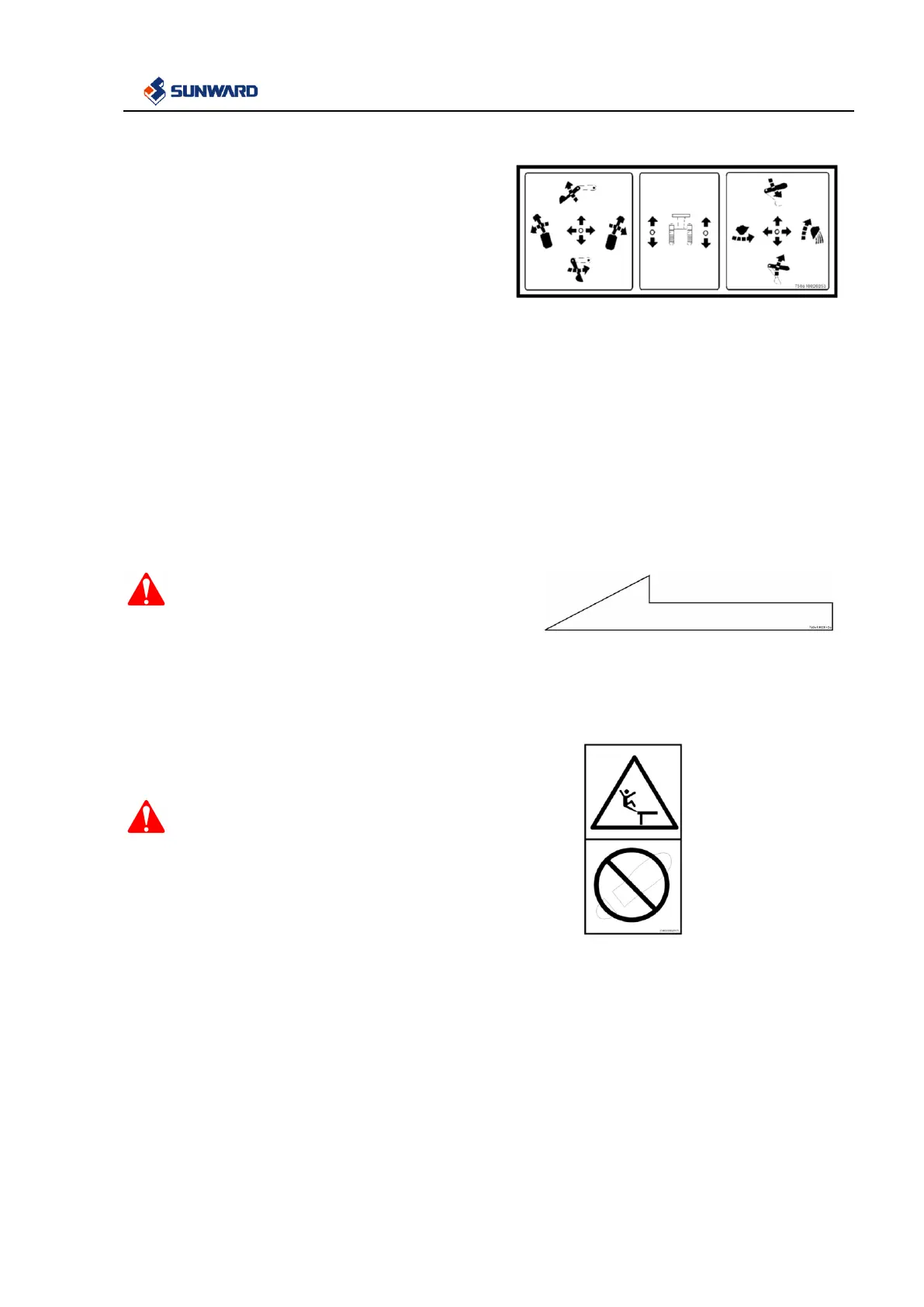

 Left pilot handle controls motion as below：
e. rotate upper-structure to left (counterclockwise)
f. rotate upper-structure to right (clockwise)
g. extend arm
h. retract arm
 Operation together with two pilot handles can also
take compound motion. In addition, horn switch
button is fixed on the handle.
 Two travel control lever control forward motion,
reverse motion and steering of the machine.
（17）Direction Label
 This label indicates travel direction of machine when
“travel control lever is pushed forward”.
Warning
In case that driving wheel is located underneath cab,
machine will travel rearward when pushing “travel
control lever” forward.(On this occasion, symbol
indicates backward).
(18) No Stepping Label
Warning
 Stay clear of operation area of working device.
