OPERATION & MAINTENANCE MANUAL SWE155F
be very high. Wait for temperature to cool down
before loosening oil fill plug of fill port 1. Pay
attention that to keep body and face away from
oil fill port 1 during operation.
With gear oil cooled down, gradually loosen oil fill
port plug to release pressure.
Remove plug of oil fill port 1 and inspection port 2,
check through inspection port 2 that gear oil level
must be within the range of 10mm under inspection
port 2.
If necessary, add lubricating gear oil through oil fill
port 1, and then recheck oil level.
Reinstall plug screw of oil fill port 1 and inspection
port 2.
Check the gear oil level on another side of travel
redactor with the same method.

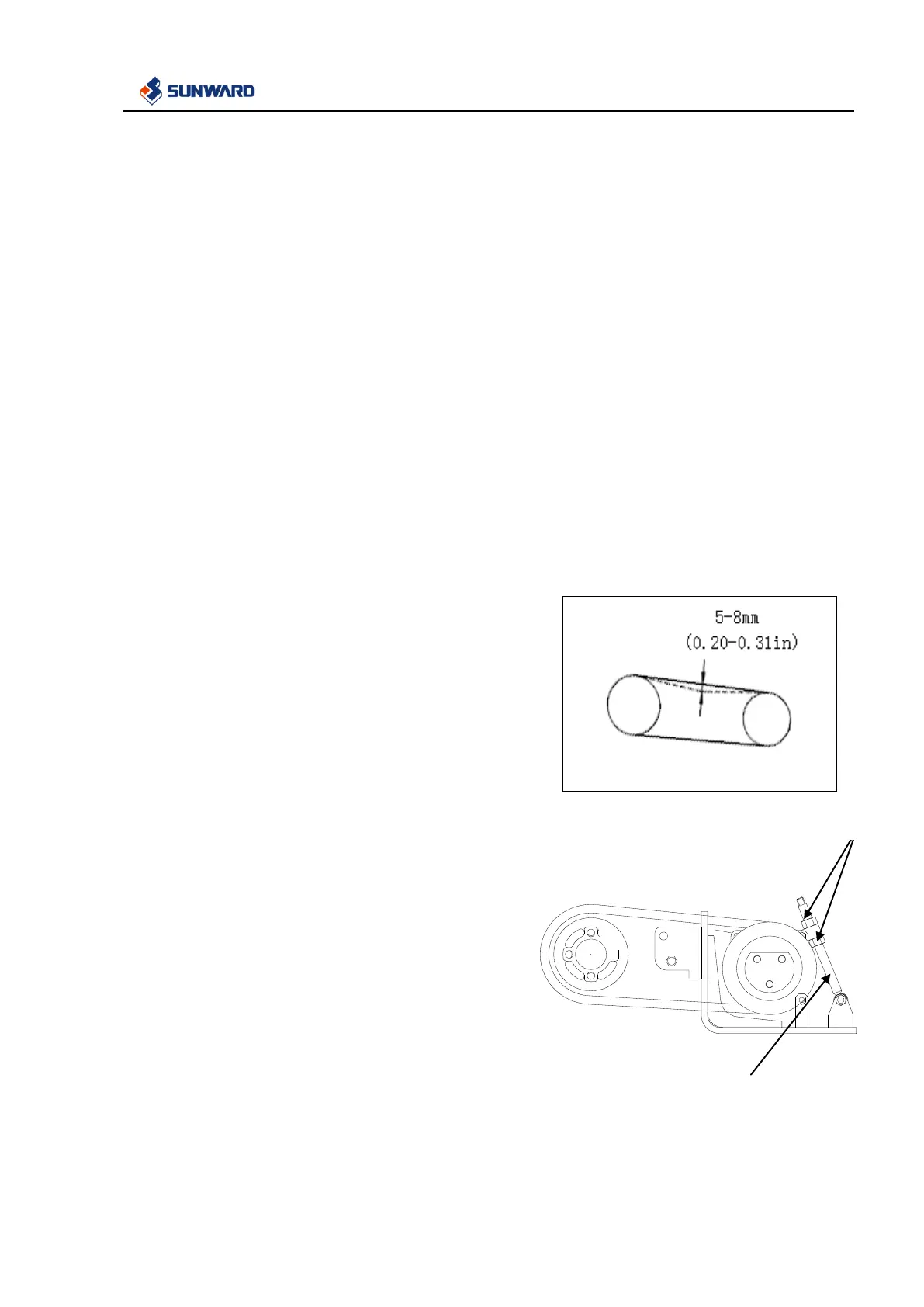

4.5.6.3 Checking, Adjusting Belt Tension of A/C Compressor
Inspection
The deflection should be 5 to 8mm, when pressing at a
point midway between drive belt pulley and compressor
belt pulley with a finger pressure of 58.8N(6kgf).
Adjustment
Loosen bolts (1) .
Fasten the adjust screw (2) with hands to make the
deflection of the belt to 5-8mm (about 58.8N (6 kgf)).
Fasten the bolt (1).
Check the belt pulley for damage, whether the V shape
slot and V shape belt wear out. If the belt is drew out,
there's no adjustable capacity or there’s notch and crack
on it, it's time to replace with a new one.
While adjusting the belt, reset it again after one hour’s
operation.
