SWL Series Skid Steer Loader

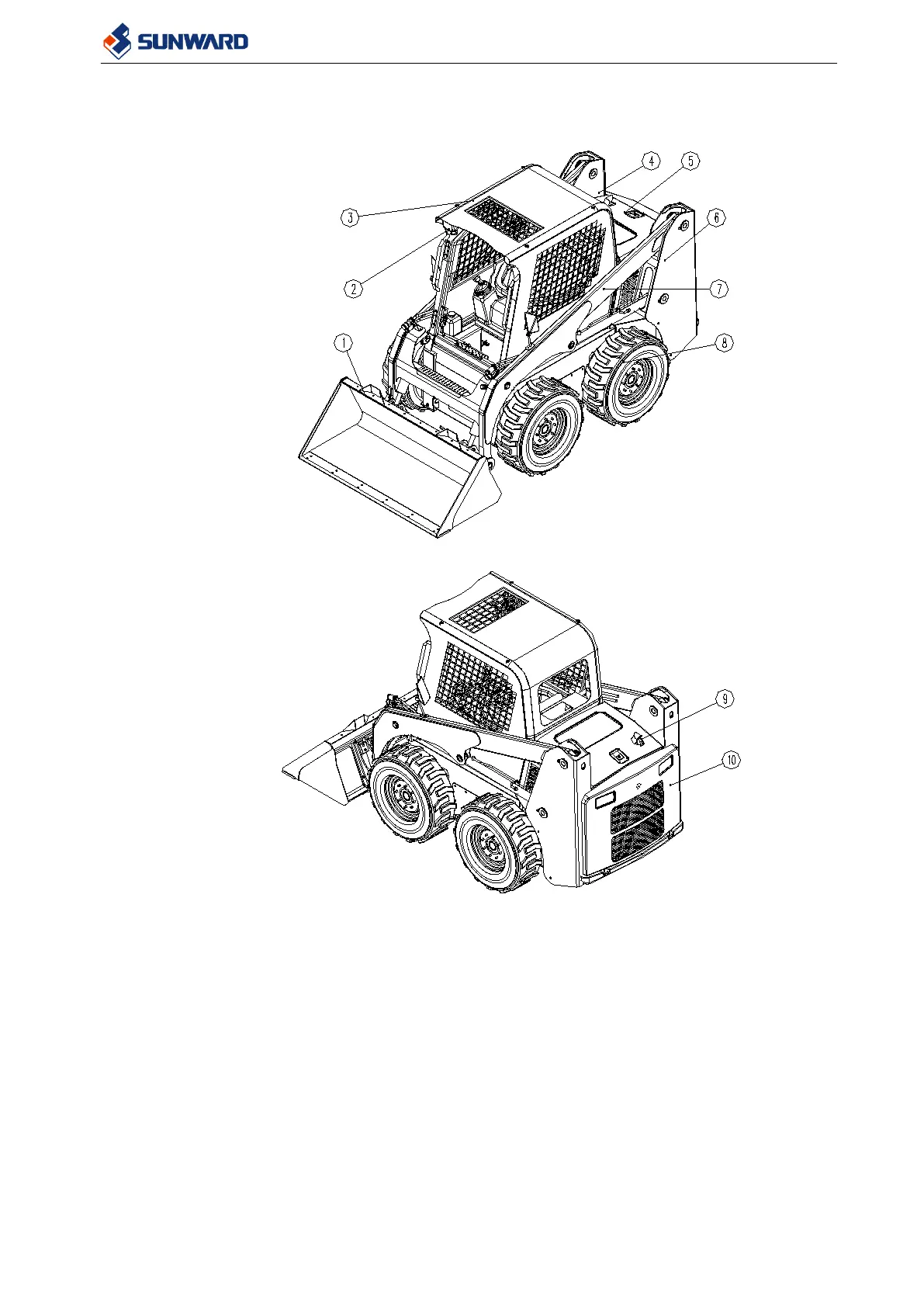

3.1.3 MACHINE DISTRIBUTION

1. Bucket

2. Working lamp

3. Cabin

4. Fuel tank

5. Engine hood

6. Hydraulic oil tank

7. Arm

8. Wheel

9. Exhaust pipe

10. Rear cover
