SWL Series Skid Steer Loader
30
3.4.2 BOOM LOCKS

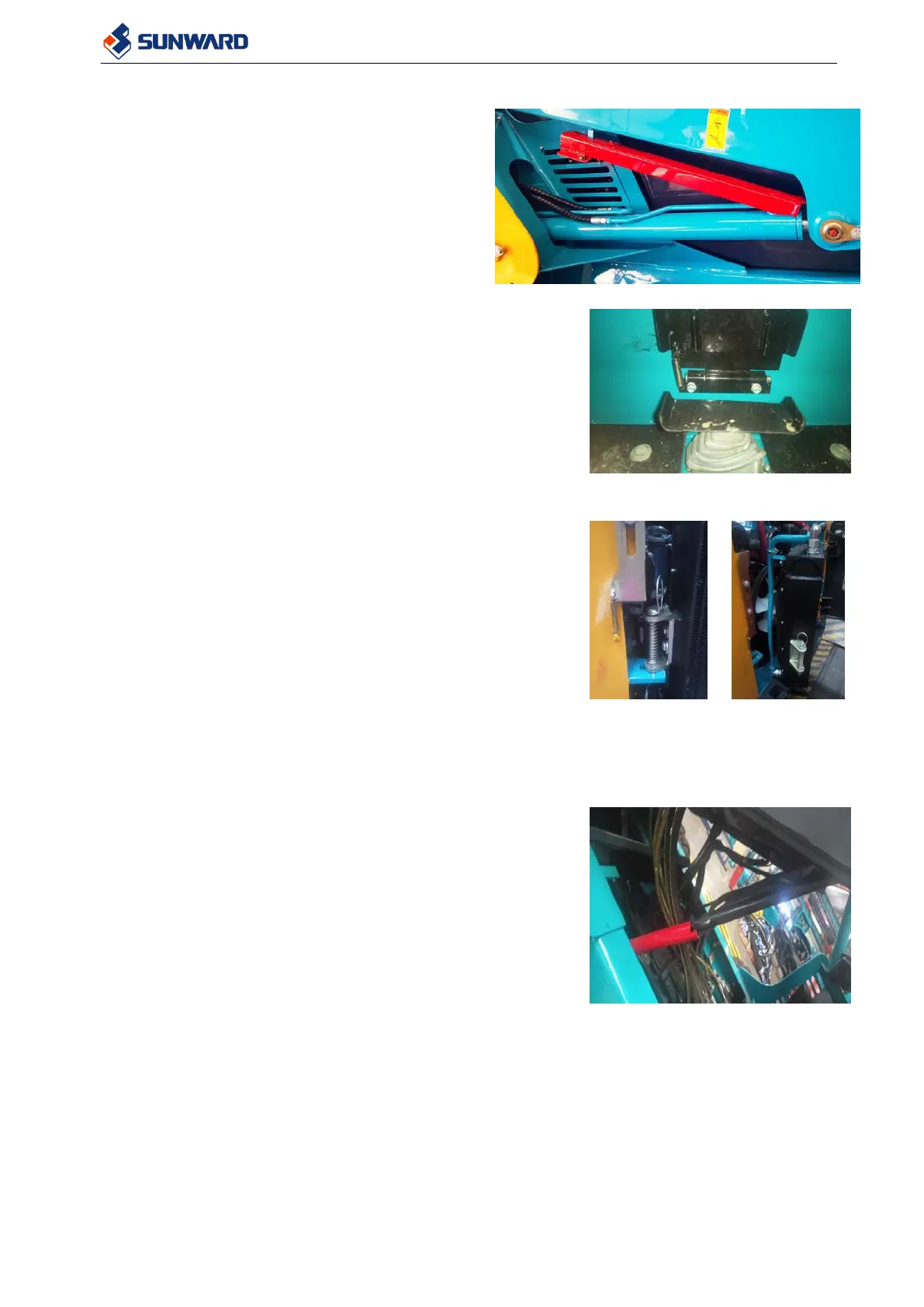

• Loader Locks are used for ensure that the boom not goes down when the machine is
stopped and with the boom raised. It
blocks the hydraulic cylinder so that
it is impossible to close them when
the cylinders are opened. See the
photo below where are they placed.
• Make sure that during the operation
of the machine the loader locks are
positioned close to the arms. It could
result fatal damage to the machine
if the safety lock engage the cylinder during the normal
working of the machine.
• Two persons must do the engagement, one is in the
operation seats to control movement of the machine and
another is to engage the locks.
• The loader lock achieves definitive position when the cylinders head surface contact
with loader locks.
• Anytime when you stop the machine with arm raised
you need to engage the loader lock.
• Make sure you put the safety pin after coupling the
loader lock.
• Never move the boom while the loader lock is
engage.
3.4.3 RADIATOR OVERTURNING PROTECTION
LOCK
• To improve maintenance more convenience.we offer a reversible radiator.If you want to
open the radiator to replace the filter element. Lift up the bolt on the side of the box.Let
the bolt out of the base.Then the radiator will open.
3.4.4 RETAINER OF AUXILIARY CONTROL PEDAL
• This retainer locks the auxiliary control pedal in the
neutral position to avoid any unintended operation.
3.4.5 CABIN OVERTURNING PROTECTION LOCK
• To avoid cabin overturn, one cabin overturning
protection lock device is provided. Engage this lock
whenever the cabin is raised. Release the lock before
lower the cabin.
• Because the cabin is quite heavy and it needs to operate the lock device while raise the
cabin, two or more persons are needed to raise cabin.
3.4.6 SEAT
Sunward skid steer loader seat is a specially designed deluxe driver seat for construction
machineries. The backrest and cushion are both designed according to body engineering
ergonomics, which will offer driver most comfort. The seat is assembled with suspension, which
helps to reduce the harmful vibration effectively and ease the fatigue of driver. The seat can be
adjusted forward and backward which supply the best comfortable position for driver. When use
