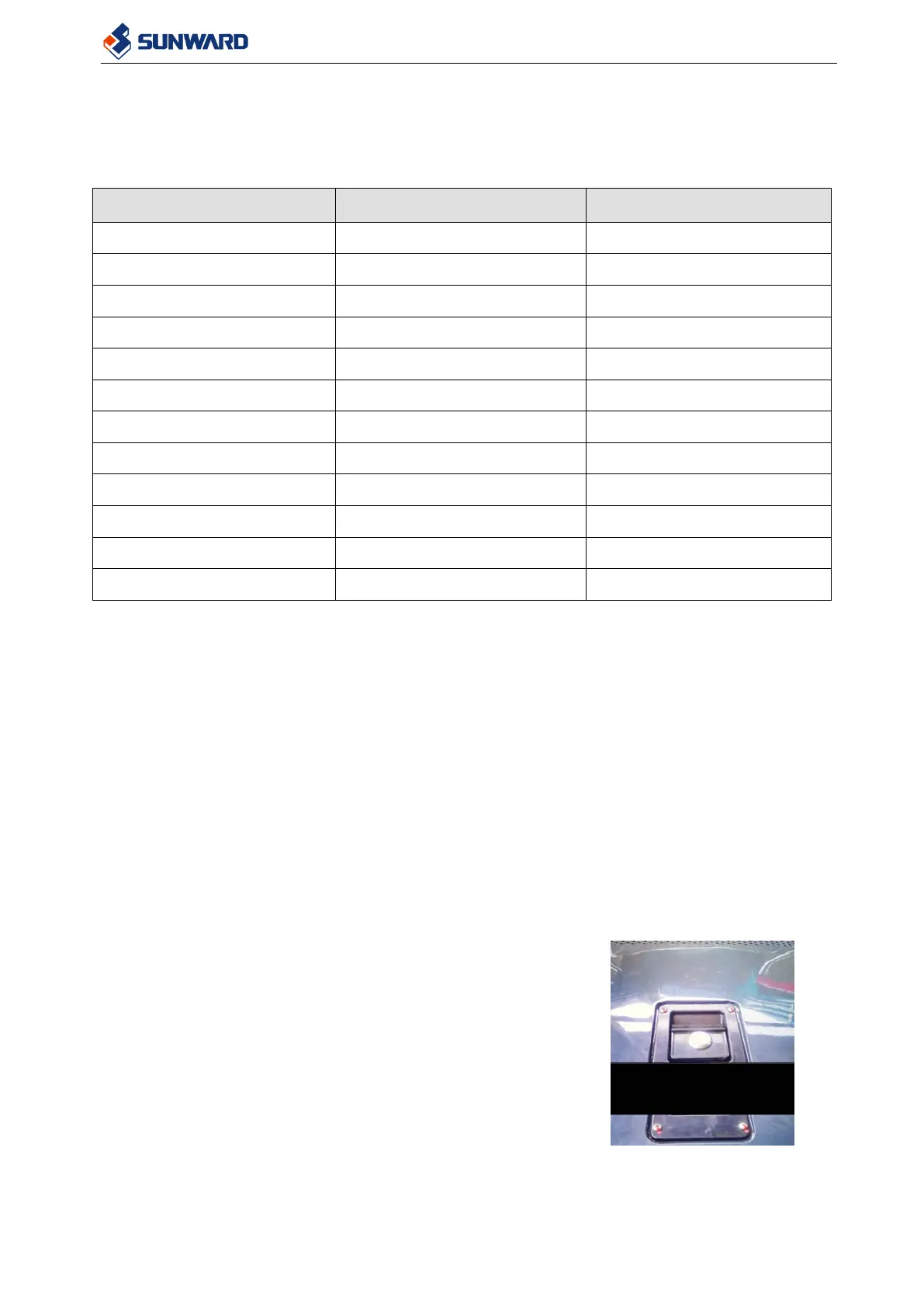

3.14 RELAYS
Most of the relays are positioned inside the fuse box. The following table shows the relays and
their Position.
No. Descriptions Position
J1 Delay K2
J2 Safety K1
J3 Pilot K3
J4 Parking valve K4
J5 Parking valve K5
J6 Parking indicator light K6
J7 Standby K12
J8 Floating K8
J9 Floating K7
J10 Horn K9
J11 Parking light K10
J12 Steering indicator light K11
Description of the locations of the relay: They are also grouped in one box located on the right
side of the cabin. (see the photo above, The position no. direction is from left to right)
3.15 DOCUMENTS CASE
There is a document case located in the back of seat. It is for keeping operation and maintenance
manual and spare parts book. These two documents are part of the machine and must be always
keep with the machine. This case can provide a clean place for the important documents. It is
convenient for operators to get and deposit the documents, so that they can consult these
documents at any moment. Please keep the operation and maintenance manual and spare parts
book always in this case besides they are in use. It will reduce the possibility of losing
documents.
3.16 ENGINE HOOD
• Never open engine hoods while the engine is running.
• Never start the engine with engine hood open,
only when the maintenance procedure makes it
necessary.
• Do not maintain the engine hood open without
the safety bar engage in the cylinder.
To open the engine hood, press the locking device by lift the latch and raise the engine hood. A
safety bar is installed in the cylinder. Lock this safety bar every time you raise the engine hood.
