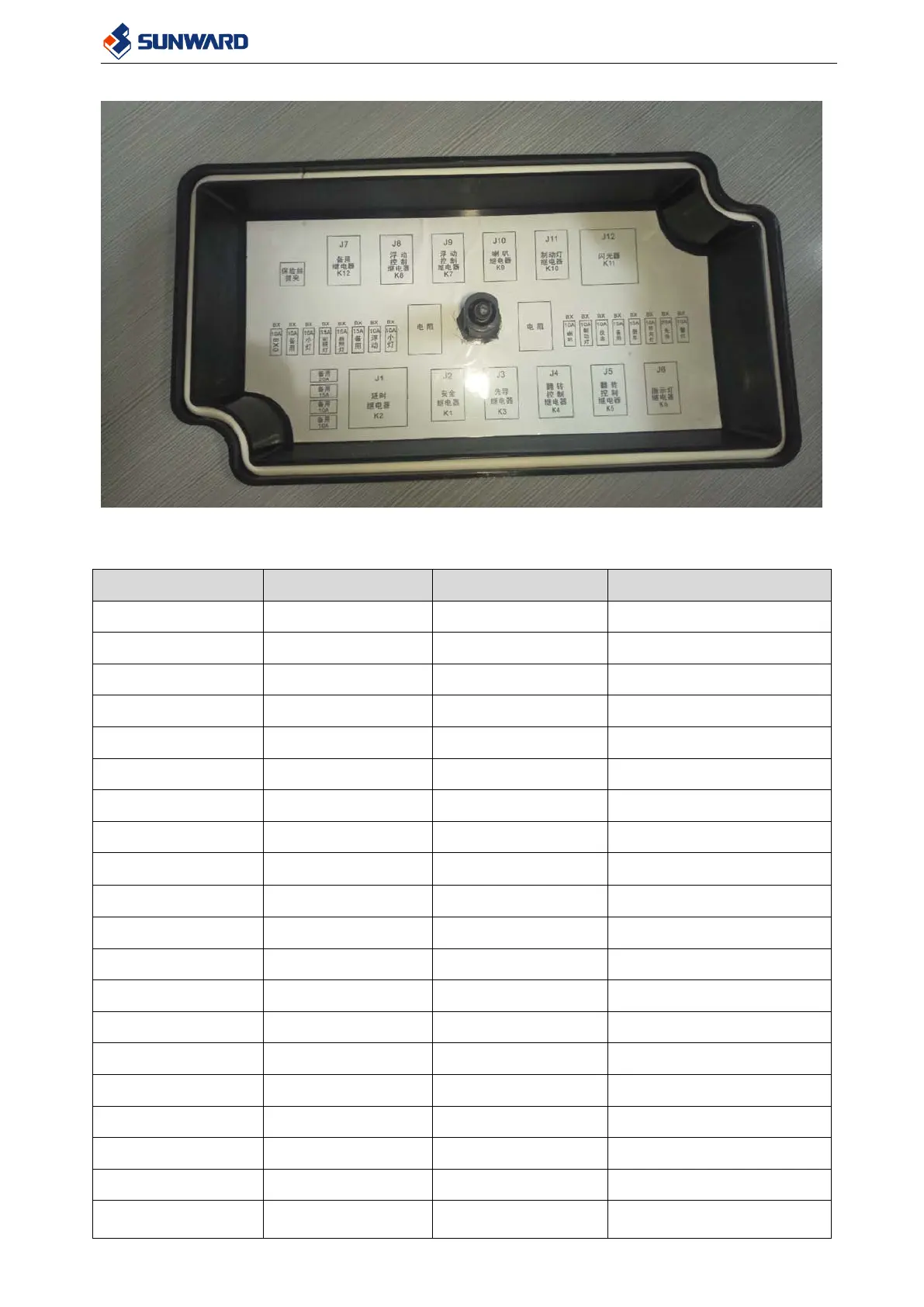

SUNWARD SWL3210 - Fuse Box Layout and Identification

SWL Series Skid Steer Loader
41
The following table shows the fuses of the electric system. (The position no. direction is from
left to right)
POSITION
COLOUR
CAPACITY
(A)
INVOLVED CIRCUIT
1
Red
10
BXO
2
Red
10
Standby
3
Red
10
Small light
4
Blue
15
Front working light
5
Blue
15
Behind working light
6
Blue
15
Standby
7
Red
10
Floating
8
Red
10
Small light
9
Red
10
Horn
10
Red
10
Braking light
11
Red
10
Instruments
12
Blue
15
Standby
13
Blue
15
Reversing light
14
Red
10
Turn light
15
Yellow
20
Pilot valve
16
Red
10
Warning light
17
Yellow
20
Standby
18
Blue
15
Standby
19
Red
10
Standby
20
Red
10
Standby
