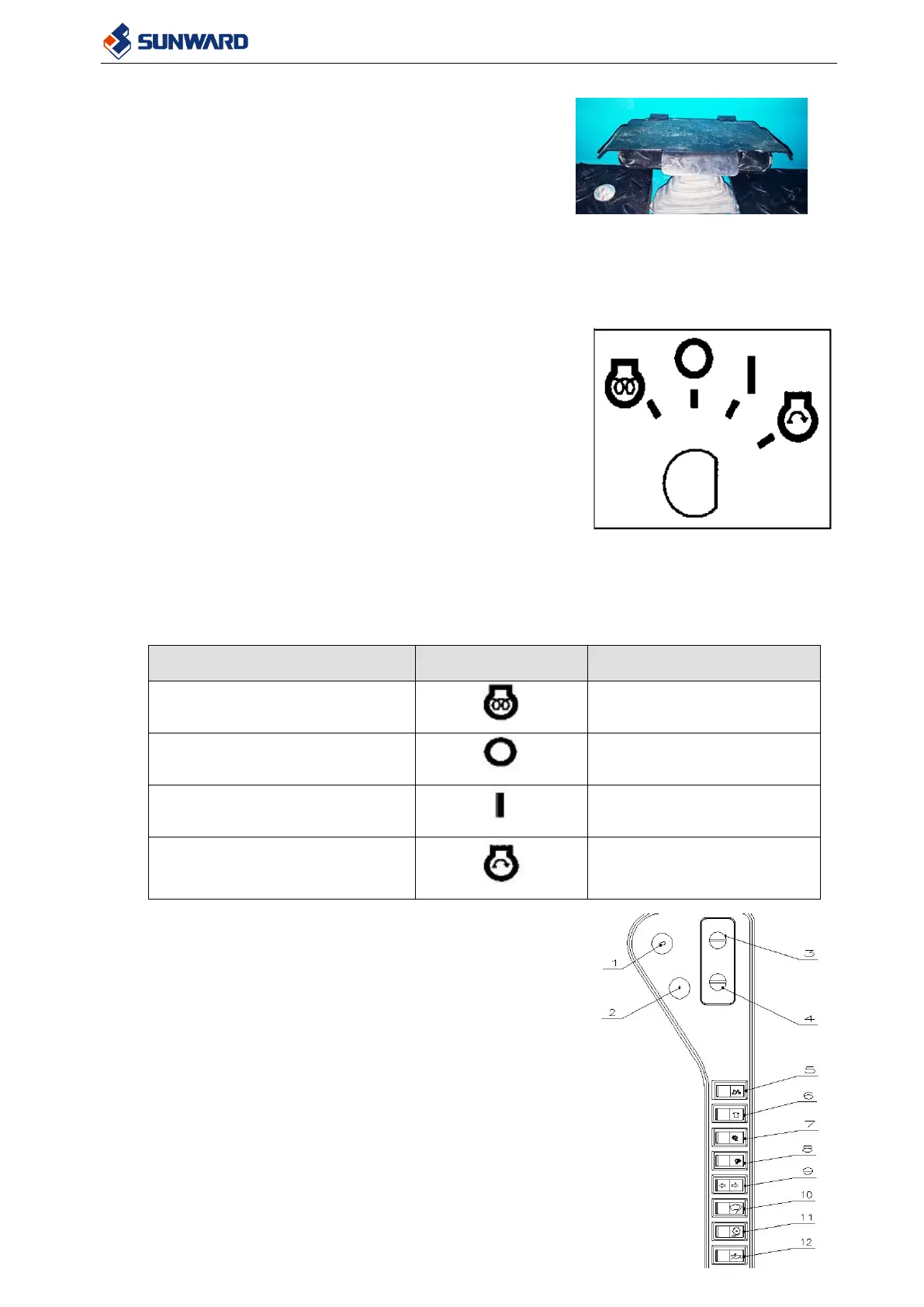

6) Auxiliary device control pedal The auxiliary
device control pedal is positioned in front of
operator. It is to open and close the oil flow to the
auxiliary device. One safety guard is over the
auxiliary device control pedal. Lift the safety
guard before use it.
（One locking bale is positioned on the right side of safety guard, close the safety
guard maintain the pedal position when control peda in the Left positions.）
The auxiliary device control pedal has three operation positions:
• Middle ---Neutral.
• Left ---Open for normal hydraulic
circuit and control bi-directional
flow together with right.
• Right ---Together with left for bi-
directional flow control.
3.7 SWITCHES AND BUTTONS
Switches inside the cabin
1) Ignition key and switch There is one ignition switch located on the right joystick
support. This rotary switch has four fixed positions. The marks and functions for the
four positions are indicated in the following table.
Positions Marks Functions
Left
PREHEAT
Neutral
OFF
First right
ON
Second right
START
2) Parking brake button When it pressed, the parking
brake applies. The hydraulic flow to all the working
equipments and traveling system is cut off. In this
case the traveling system and working equipments
are blocked and impossible to operate. To release the
parking brake, press the parking brake button again.
The LED will go out after press again.
NOTE:
• The parking brake is engaged automatically
when engine stopped. This is due to the lack
of pressure of hydraulic circuit.
