SWL Series Skid Steer Loader
36

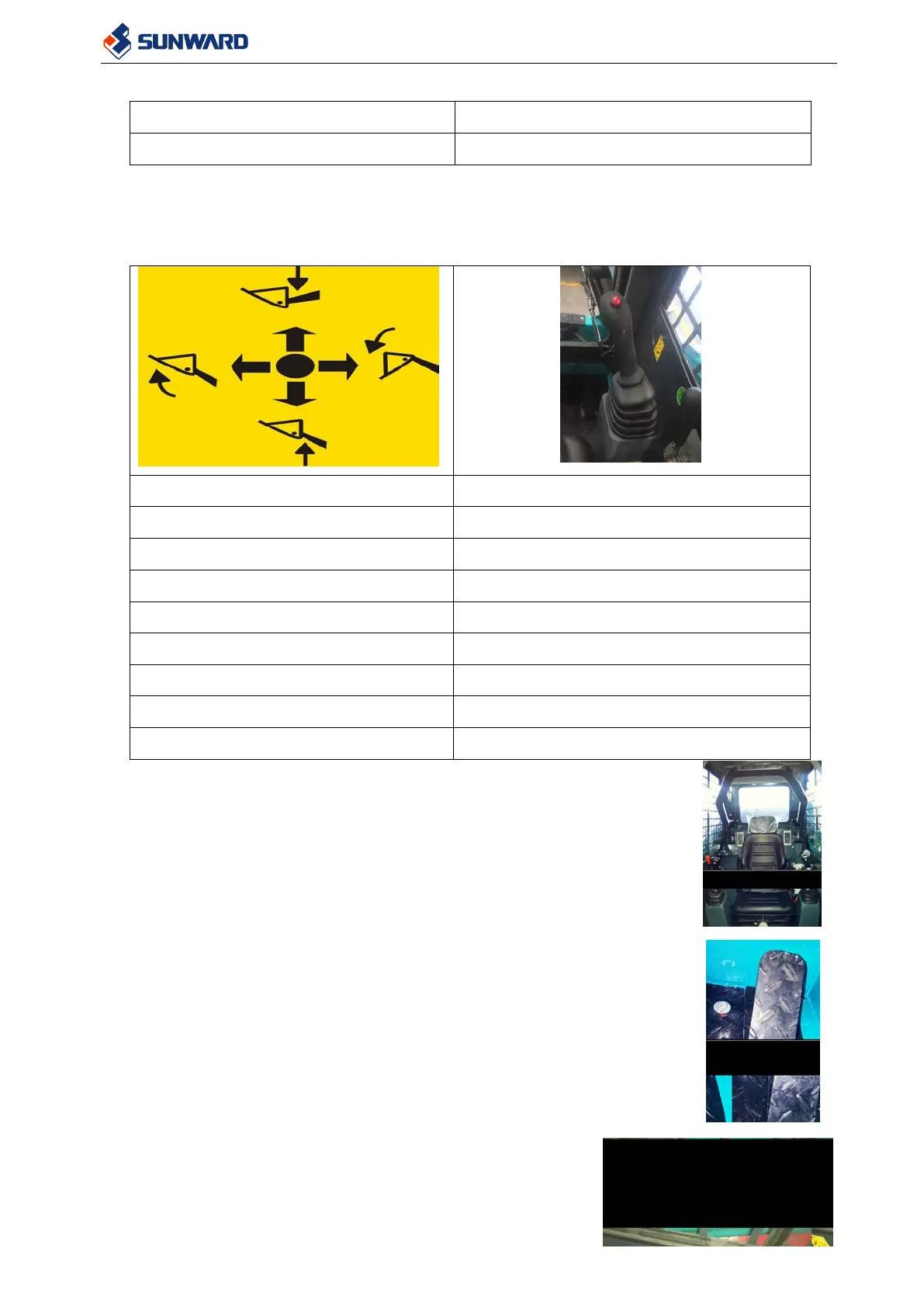

3) Right joystick The right joystick is for controlling the movements of the boom and
working equipments. Its operating positions and relevant functions are showed in the
following diagram.
Boom lowering- Bucket folding
Boom lowering - Bucket dumping
Boom lifting- Bucket folding
Boom lifting- Bucket dumping
4) Restrain bar The restrain bar is extremely important for the
safety of operation. It will be a protection for the operator for avoid
jump
forward in case of sudden stop while traveling. It is
also the safety device to lock the joysticks control.
When it is lifted to vertical position, the joysticks
will be out of order. To release the lock, you have to
lower the restrain bar to horizontal position. The
locking function is obtained by a sensor located
closed to the support of restrain bar.
Foot accelerator The foot accelerator is on the right side of the
operator. Operator can operate the
foot accelerator via his right foot easily. Footaccelerator is for
adjusting engine speed and power together with hand accelerator.
The foot accelerator lever will return to its limit position after the
operation finish.
5) Hand accelerator Be same as foot accelerator, the
hand accelerator is on the right side of the operator.
Operator can operate the hand accelerator via his right
hand easily. Operator can adjust engine speed and
power via hand accelerator and fit it to constant level.
