SWL Series Skid Steer Loader
87
R1~R4 Resistance SA4 Rear work lamp switch
D1~D7 Diode SA5 Left Turning Light switch
HL0 Enable switch lamp SA6 Right Turning Light switch
P1 Water temperature meter SA7 Wiper switch
P2 Fuel gauge TR5 Air filter sensor
P3 Hour meter TR6 Hydraulic oil filter sensor
E1~E8 Alarm lamp

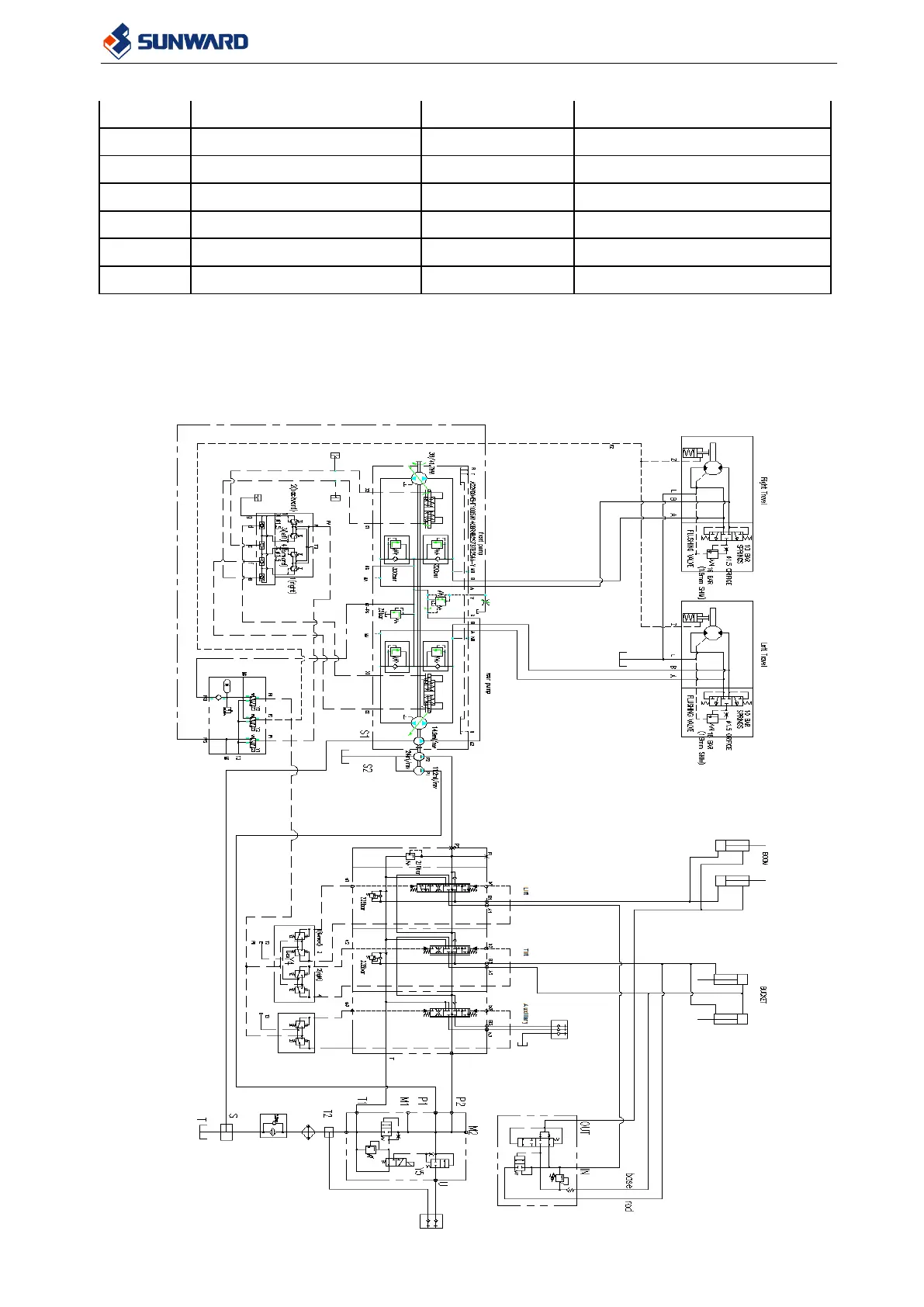

7.3 HYDRAULIC DIAGRAM
Remark: please refer to related auxiliary operation manuals for auxiliary devices hydraulic
drawings.
To Next Page
