SWL Series Skid Steer Loader
71
5.5.3 EVERY 100 HOURS OF OPERATION
5.5.3.1 CLEANING THE TERMINALS OF THE BATTERY
• Keep the battery terminals clean is very important, since it ensure a good electricity
flow.。
• Clean the battery with gloves. Never clean the terminals directly with your hands.
5.5.3.2 CLEANING THE OIL TANK’S BREATHER
• Keep the tank breather clean is very important, since it ensures a pressure release inside
the oil tank.
5.5.3.3 CHECKING THE CYLINDER RODS
• Make sure the cylinder rods are not corroded or damaged. It could reduce the machine’s
efficiency.
5.5.3.4 GREASING ALL OF PINS
• Grease the pins specified in the item 5. 3.5 Lubrication Points.
5.5.4 VERY 250 HOURS OF OPERATION
5.5.4.1 CHECKING THE GEARING CHAIN TENSION
• Every transmission side is compound with 2 chains. One chain for one wheel.
For checking the rear gearing chain tension proceed as follow:
1) Block the machine by pressing the Parking brake button.
2) Lift up the rear part of the machine and maintain it lifted by putting blocks
under the machine (See picture below).
3) Fix a point on the perimeter of the tire. Try to do it in the highest position.
4) Try to move the entire wheel.
5) If the angle between the original
position of the point and the turned
position is more than 2 degree, the
gearing chain is loosening.
Proceed on the same way for checking the other rear
gearing chain.
Proceed on the same way for checking the front chain.
5.5.4.2 ADJUSTING THE CHAIN IF NECESSARY
Proceed as follow to tense the gear chain:
1) Remove the wheel.

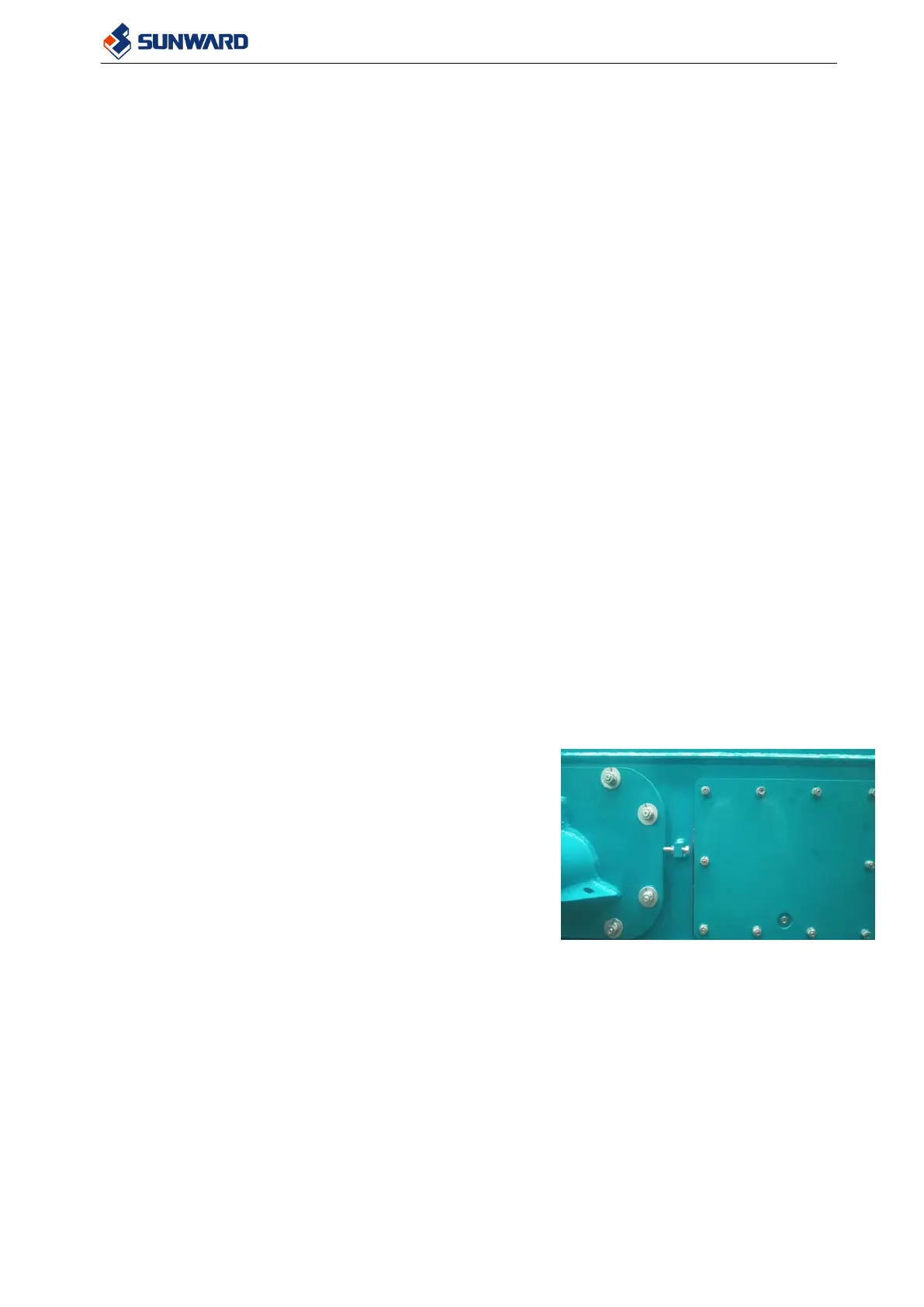

2) Adjust the adjusting screw against the hub-holding plate (See picture below).
3) Loosen the screws that support the hub-holding plate (See picture right).
4) Turn the adjusting screw a few millimeters for tensing the chain.
5) Fasten the screws that hold the hub holding. Try to fasten the screws every 3
screws step by step.
6) Mount the wheel.
• Try to do the adjustment on an level and clean surface. Make sure it is not slippery.
