3.5 INSTRUMENTS

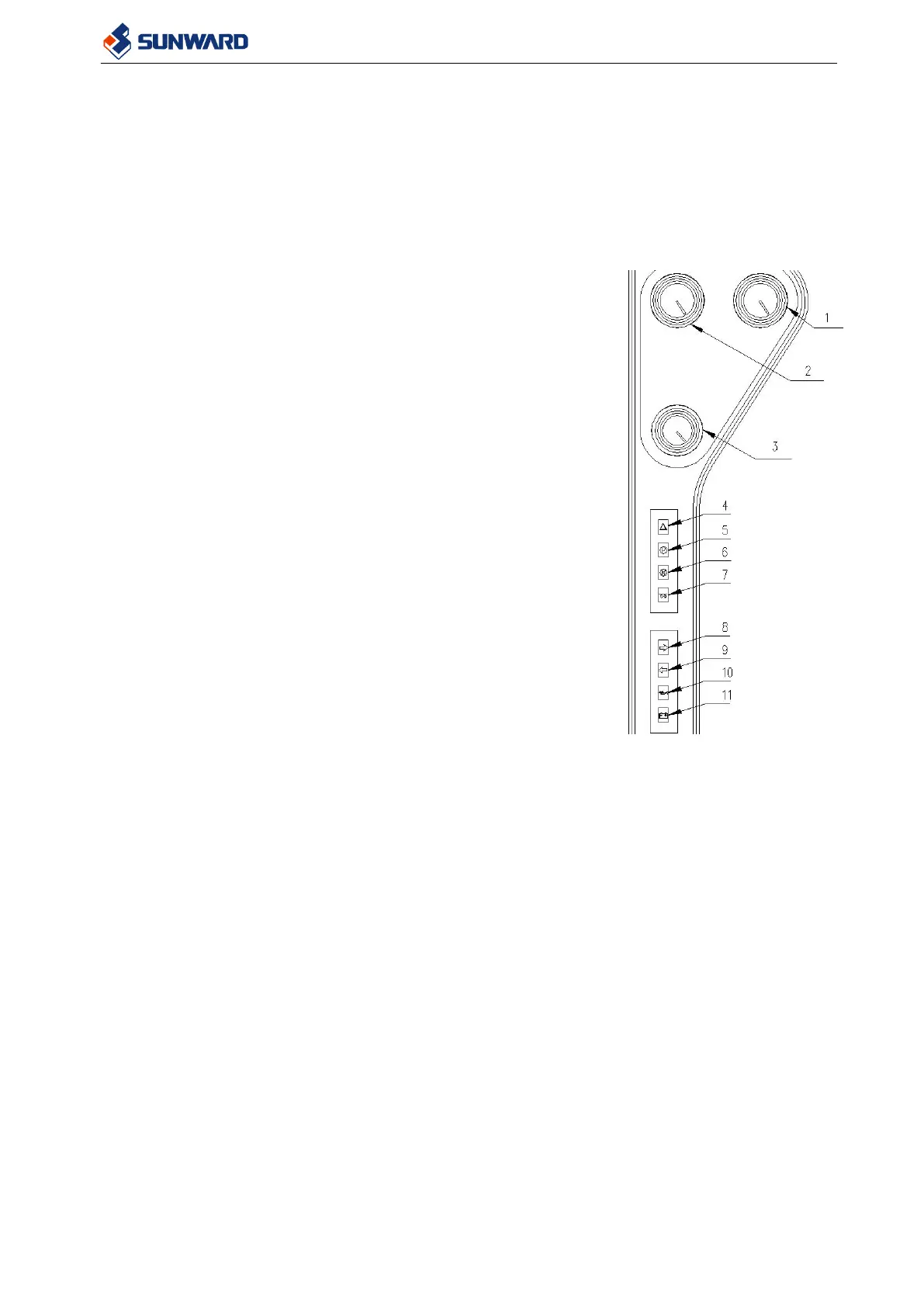

Indicators inside the cabin
1) Fuel Level Gauge This indicator shows the fuel level. The capacity of the fuel tank
is about 70 liters. The red range indicates that the fuel level is less than 8 liters. When
the machine is work, once the indicator reaches the red range, stop the engine and
refuel it.
2) Coolant Temperature Gauge This indicator shows
the temperature of the engine coolant. Normally the
engine coolant temperature should be 80-85°C while
the engine operating. Warm up engine is necessary
when start engine. Please keep the engine run with
idle after start engine until the coolant temperature
reaches the green range then start to work with the
machine. Once the temperature reaches the
overheating red range, stop the engine immediately.
3) Hour meter The hour meter indicates the total
number of hours of engine running. The hour meter
keeps in function while the engine is running
independent on engine rotating speed and working
situation.
4) Working light warning light This light comes on
when the working lights are turned on.
5) Parking brake warning light This light comes on
when the parking button is being acted. It goes out
when the parking button is released.
6) Air cleaner clogging warning light This light
comes on when the air cleaner is clogging. Stop the
engine and check the air cleaner.
7) Preheating warning light This light comes on when the ignition key turned to
preheat position. It will go out some seconds after the ignition key turned from
preheat position.
8) Direction indicator warning light This light comes on when the direction switch is
operated.
9) Direction indicator warning light This light comes on when the direction switch is
operated.
10) Engine oil pressure warning light This light comes on while starting the engine. It
goes out soon after the engine runs.
If this light remains on or comes on while the engine is running, stop the engine
immediately and try to find out the cause.
11) Battery warning light In normal conditions the warning light comes on when the
starter circuit is energized and goes out when the engine goes to normal speed. If the
light remains on when the engine running on normal speed, this means the alternator
does not work and the battery is not charged correctly.
When turn the ignition Key to ON position，if the light does go out， it means that
the battery does not work well.
