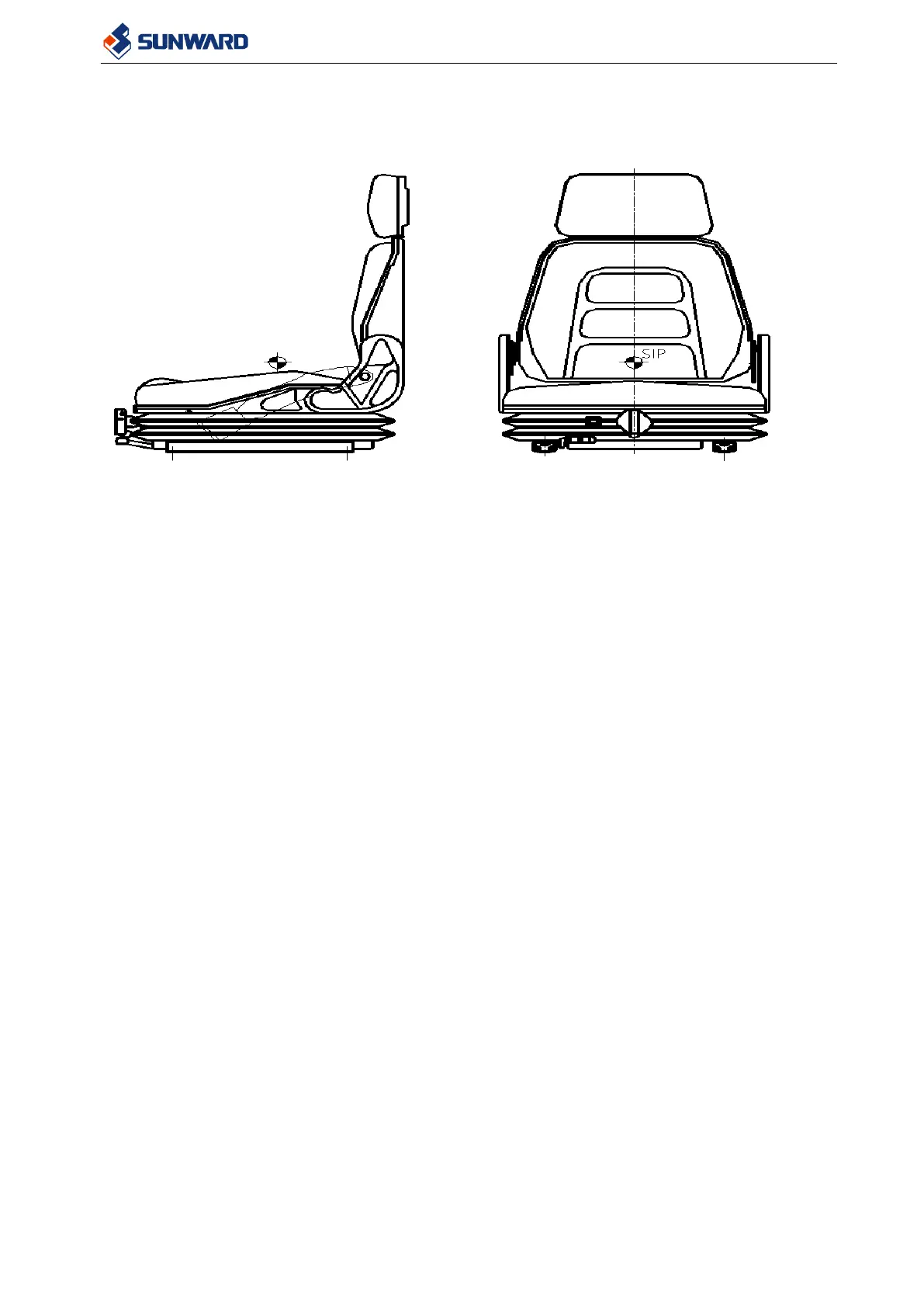

the machine first time or driver changed, the driver should adjust the seat according to his own
status.
(1) Body weight adjustment
According to operator body weight，rotate adjusting handle in the front middle of seat by hand
until feeling comfortable。Rotating handle anti-clockwise，vibration rigidity reduced；
Rotating handle clockwise，vibration rigidity increased，suspension vibration device can be
adjusted in no level according to body weight of 50-130kg。
(2) Forward and backward adjustment
Raise forward and backward adjusting handle in the right of seat by hand，then push or pull
handle along seat front and back direction to make it in ideal position，put down the handle
and lock automatically，the seat front and back adjusting distance is 210mm, the adjusting
clearance is 10mm。
(3) Armrest angle adjustment
While adjusting the armrest angle, put up the armrest to the proper angle, then rotate the
adjustment knob until it is on locking position, by which adjustment is done.
Attention：
• Only adjust the seat when the driver is in safety status.
• For slider and recliner adjustment, please make sure the knob in the proper position; only
when the adjustment mechanism parts are separate can you do the adjustment.
• After all the adjustment, please make sure every knob stays in proper position and every
part is locked.
• The seat is equipped with a sensor that detect if operator is seated or not. The working
equipment and travel system will be blocked while the operator is not seated correctly in
operation position.
• The seat size is designed according to standard of ISO 11112, the shock absorber design
is fit for EN ISO 7096 EM9 standard.
