The machine is equipped with a quick coupler that makes
easier the engagement with the bucket or other suitable
attachments. This quick coupler is suitable for many
different types of working equipments homologated by
Sunward.
Some precautions for hitch and unhitch the working
equipments:
• To hitch or unhitch the bucket, choose a flat
ground and make sure the machine is stable on
the floor.
• Before unhitch the bucket, lower the bucket to the ground, putting the bottom side
of the bucket directly to the ground.
• Clean, if it is necessary, all the part involved in the operation.
• Never hitch the quick coupler when you are in the cabin. The handles could move
and you could result injured or even death.
• After hitch the quick coupler and before starting to work check that the pins are
engaged correctly.
• Avoid using your hands to align the pins, since you could result injured.
• Maintain clean the area located around the mechanism.
• Grease the pin every time you hitch the bucket or follow the schedule described in
the item 5.9 Maintenance Plan.
• For turning the two handles press the parking brake button and get off the machine.
Never turn the handles of the mechanism while the machine is not blocked with the
parking brake button.
• Never unhitch the bucket or other accessory when the boom is lifted up.

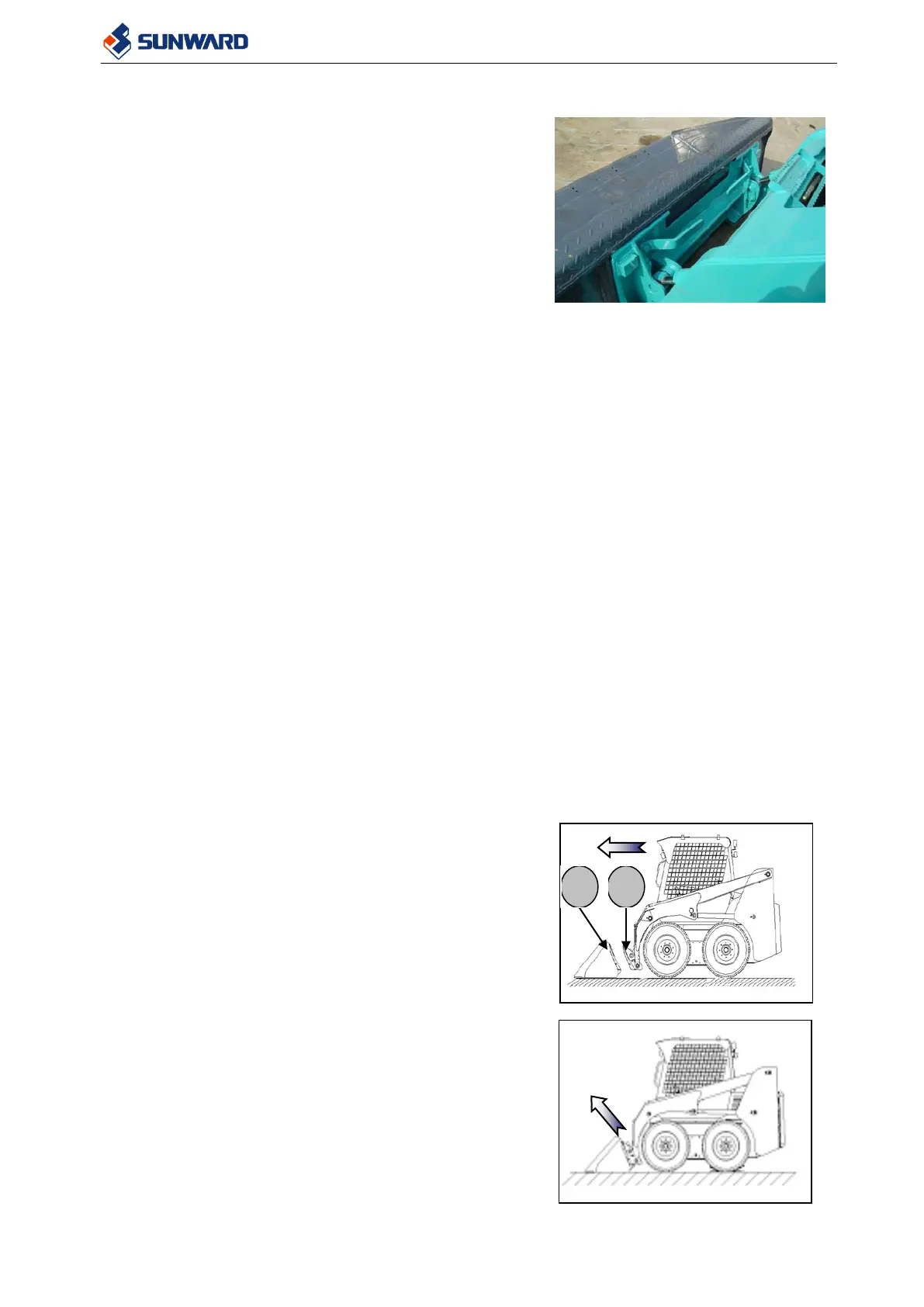

4.15.1 HITCH THE BUCKET
To engage the bucket or other equipments follow the steps below:
1) Rotate the levers to unlock the coupling
pins completely.
2) Move the machine to align the quick
coupler with the bucket.
3) Move the machine slowly and approach
the quick coupler to the bucket till the
surface A touches the surface B (see
picture on the right).
4) Raise the boom and fold the quick
coupler to position the quick coupler
combine well with the bucket. Then fold
the bucket completely.
5) Stop the engine. Release the residual
pressure. Raise the restrain bar.
6) Get off the machine.
