SWL Series Skid Steer Loader
84
Make sure the oil would not flow into connectors of pedal and unconnected pipes when
replacing the independent hydraulic circuit or before disassembling the quick coupler.
6.5 CONNECTION OF HYDRAULIC CIRCUIT
Before any operation on the hydraulic circuit, stop engine firstly and engage steer handle in each
direction to release the pressure, and lock on the safety rod.
Clean the positions where are polluted immediately.
Make sure the controlling pedal on the position of flow broken, then, connect the quick pipes to
connector of hydraulic circuit after the equipment is attached on the quick coupler.
Quick coupling device should comply with standard of ISO8434-3.
Any query about connection of hydraulic circuit, please consult with your local agent.

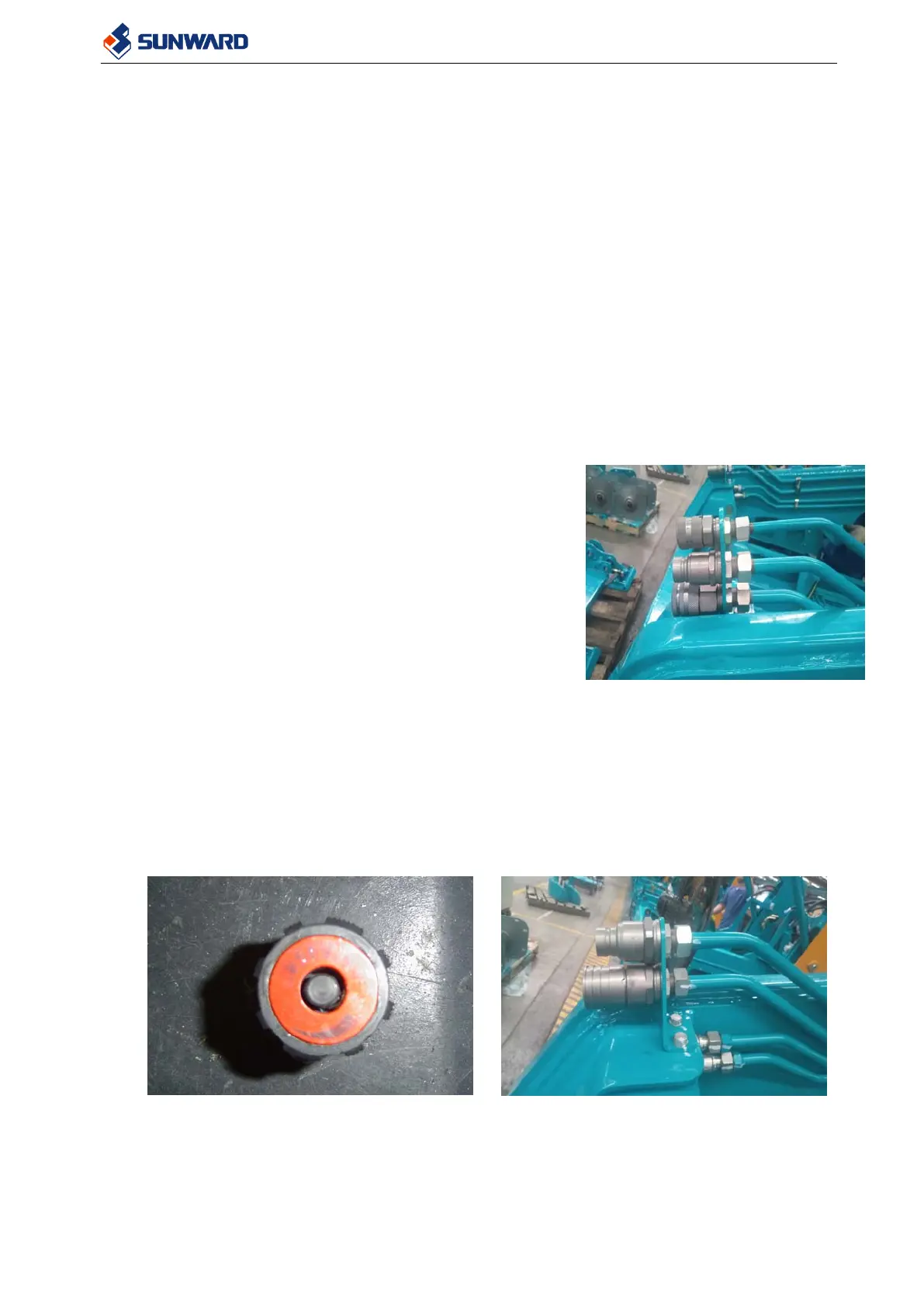

6.5.1 CONNECTION OF STANDARD HYDRAULIC CIRCUIT
Application of equipment which has hydraulic circuit with oil return to oil tank directly may
also be available.
The oil return system is on the left side of boom. The draining
circuit of equipment should be connected to the uppermost
connector.
Make sure the oil would not flow into connectors of pedal and
unconnected pipes when replacing the independent hydraulic
circuit or before disassembling the quick coupler.
6.5.2 CONNECTION OF HIGH FLOW HYDRAULIC
CIRCUIT (FOR OPTION WITH HIGH FLOW
SYSTEM)
Application of equipment which has high flow hydraulic circuit may be available.
The oil return system is on the right side of boom.
Make sure the oil would not flow into connectors of pedal and unconnected pipes when
replacing the independent hydraulic circuit or before disassembling the quick coupler.
There is a button to adjust the size of flow positioned on the rear of tool box left to the cabin.
See following pictures:
