5.5.4.9 CHECKING THE NUT TORQUE OF THE HYDARULIC MOTOR AND THE
HUB HOLDING TO THE CHASSIS
• For the operator’s security check the screw that hold the hydraulic motor to the chassis.
Take as reference the following driving torque given in the following table:
Driving Torque for Hydraulic Motor
160 Nm
• Check the driving torque that holds the hub-holding.
Take as reference the following driving torque given in the following table:
Driving Torque for Hub-Holding
160 Nm
5.5.5 EVERY 500 HOURS OF OPERATION
5.5.5.1 CLAEN THE FUEL-WATER SEPARATOR
Proceed as follow for cleaning the fuel-water separator:：
1) Turn the handle to cut off the fuel flow into the separator.

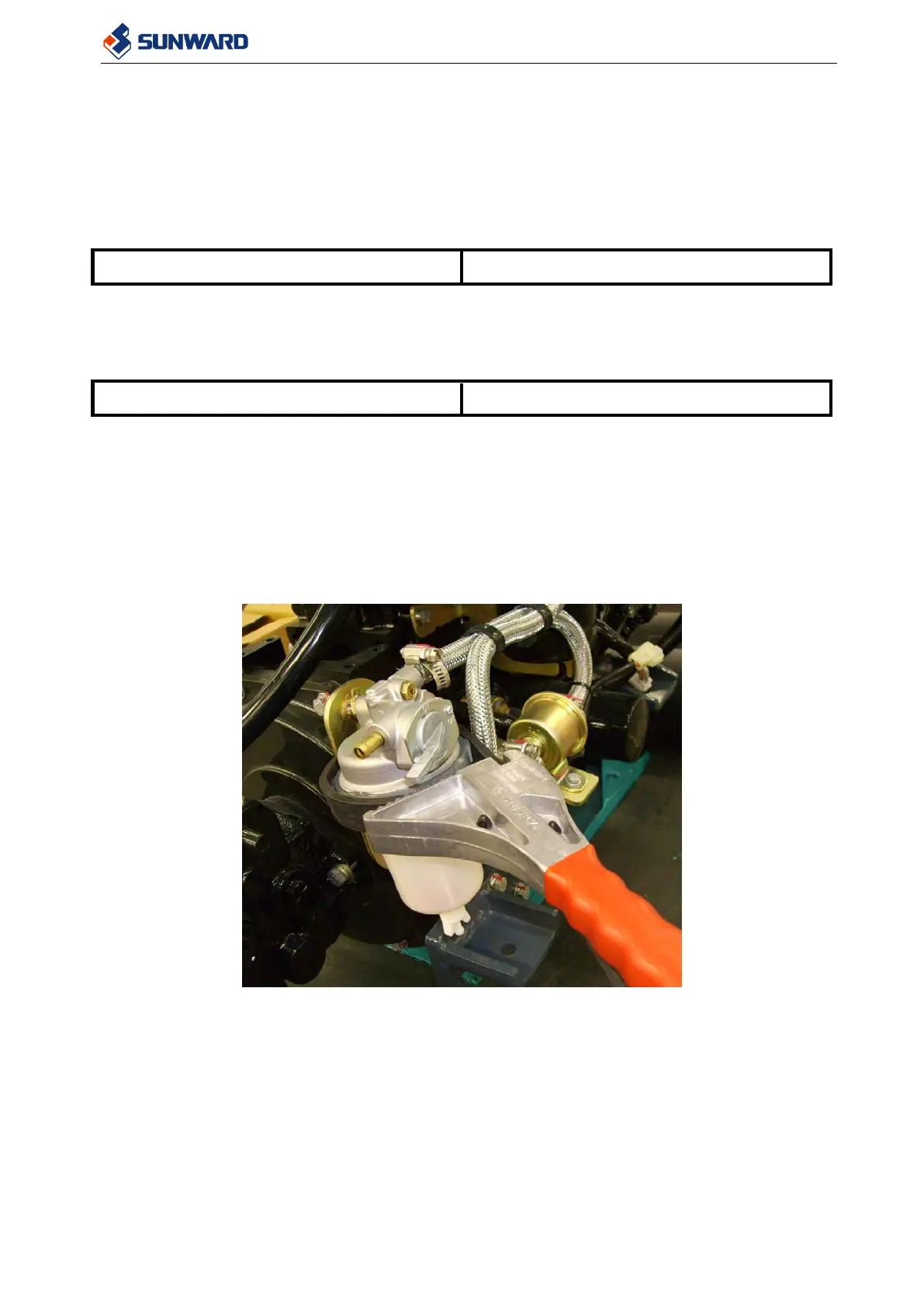

2) Loosen the fuel-water separator by a ring (See picture below).
3) Clean the inner part of the separator with fuel.
4) Mount again the separator by tightening the ring again.
5) Release the handle to allow fuel into the separator.
6) Bleed the fuel circuit by turning a while ignition key to position START
during 20 seconds.
• Before precede to clean the separator cool down the engine.
• After bleeding the circuit, turn the ignition key to preheating position for 2 minutes
and then start the engine.
