SWL Series Skid Steer Loader
56

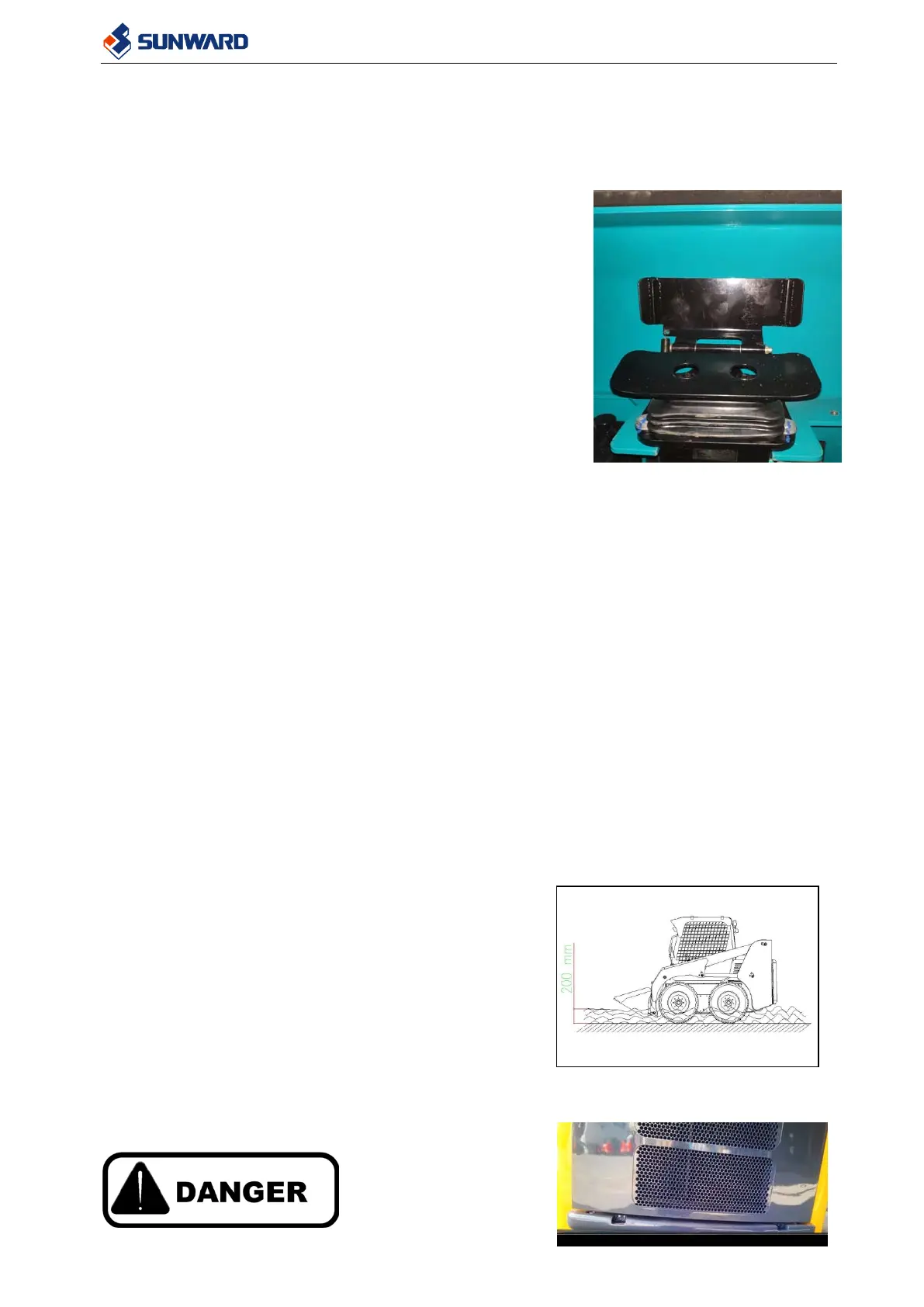

especial pedal is installed in the cabin to control this additional equipment .The pedal controls
the opening and the closing of the oil flow to the equipment. The pedal has three positions:
• Neutral Position: The hydraulic oil does not flow to the auxiliary equipment.
• Right Position: The hydraulic oil flow in one of the
pipes to the auxiliary equipment and returns through the
other pipe back.
• Left Position: The hydraulic oil flow in one of the pipes
to the auxiliary equipment and returns through the other
pipe back. In this case the oil flows always in the
opposite direction than in the right position.
• One locking bale is positioned on the right side of safety
guard, close the safety guard maintain the pedal position
when control pedal in the Left positions. It maintains the
left position until you release the mechanism by push
the safety guard up.
• When you do not use the auxiliary system, engage the safety retainer (See picture below).
• Never use auxiliary system that not approved by SUNWARD.
• Always apply the safety retainer when not using the auxiliary pedal.
• When connecting auxiliary equipment, make sure the pedal is in the neutral
position and the safety retainer is engaged.
• About each auxiliary operation instruction, please refer to related auxiliary
operation manual.
4.17 HIGH FLOW SYSTEM
It’s useful with such attachments that need great flow rate.
Before use it:
Connect the high flow pipes;
Push the button on the right joystick supporting box.
4.18 MAXIMUM IMMERSION IN A FLUID
• The machine could be damaged if water comes
into the engine compartment.
• Try to not immerse the machine in fluids deeper
than 200 mm.
• Make sure the bottom surface is strong enough.
• Clean the machine and grease the articulation
after immerse the machine.
4.19 MOVE THE MACHINE WITH TOWING
HOOK.
