SWL Series Skid Steer Loader
39

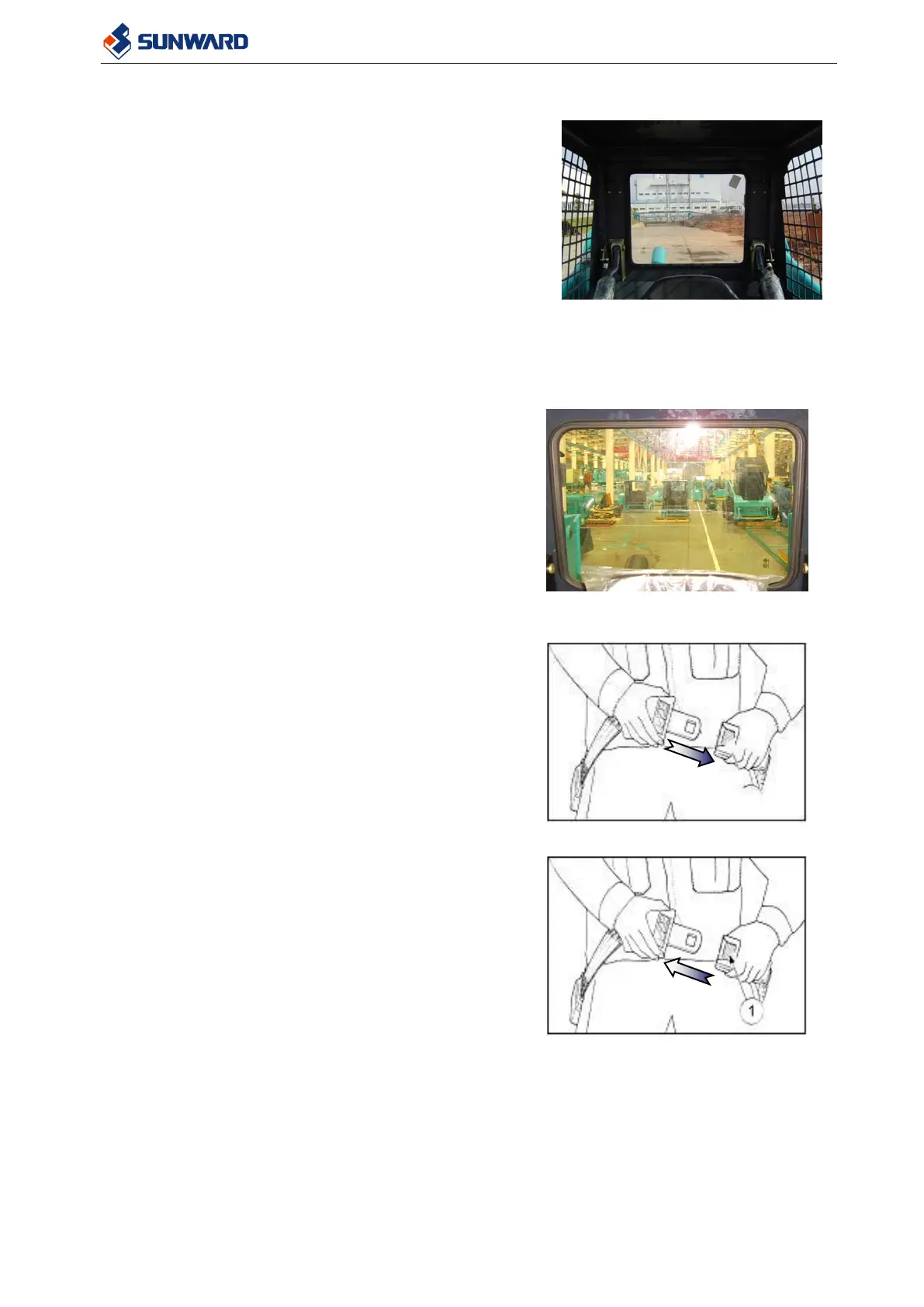

3.8 CABIN
A FOPS and ROPS homologated cabin is equipped on this
machine. The cabin is fit for EN ISO 13510 and EN 13627 level
I
safe request. This cabin will supply a comfortable
working environment to the operator and guarantee
operator’s safety.
Cabin can be raised by rotate with the base of front joint
with chassis .
The rear window is also used as an emergency exit in case of accident. The rear window is
removable. Remove it when it is necessary. For the operation, see the description in ”3.9”.
Remark: The damaged cab could not be repaired and used again.
3.9 REAR WINDOW
Rear window is the emergency exit for operator. In case
of accident, the normal exit is not available any more.
Operator should open the rear window as the follow
procedure and treat it as an emergency exit.
1. Use a safety hammer or some sharp tools
to knock on the rear window.
2. Take out the rear glass and get through
the window.
3.10 SEAT BELT
• Change the safety belt when it is damaged or
wear out. The safety bar could not work properly
if it is damaged.
• Change the safety belt when you have suffered
and accident.
• Check every certain time (See item 5.9
Maintenance Plan) the screws that support the
safety belt.
3.10.1 FASTEN THE SEAT BELT
To fasten the seat belt, the operator needs to be seated
and then follow these steps:
1. Take first the male clasp and introduce it into
the female clasp until the blocking position.
2. Once it is in a blocking position wait until the
belt rolls up the belt to a tight position.
3.10.2 UNDO THE SEAT BELT
To undo the seat belt just press the button (1) shown in the picture and wait until the belt rolls up.
For checking if the seat belt works correctly, just pull strongly form the belt once the belt is
fasten. The belt should block you pulls. In case the belt does not block your pulls, repair or
remove it immediately.
