SWL Series Skid Steer Loader
55
7) Rotate back the levers to the position of
locking.
8) Check the coupling pins are properly
positioned in its retainers.

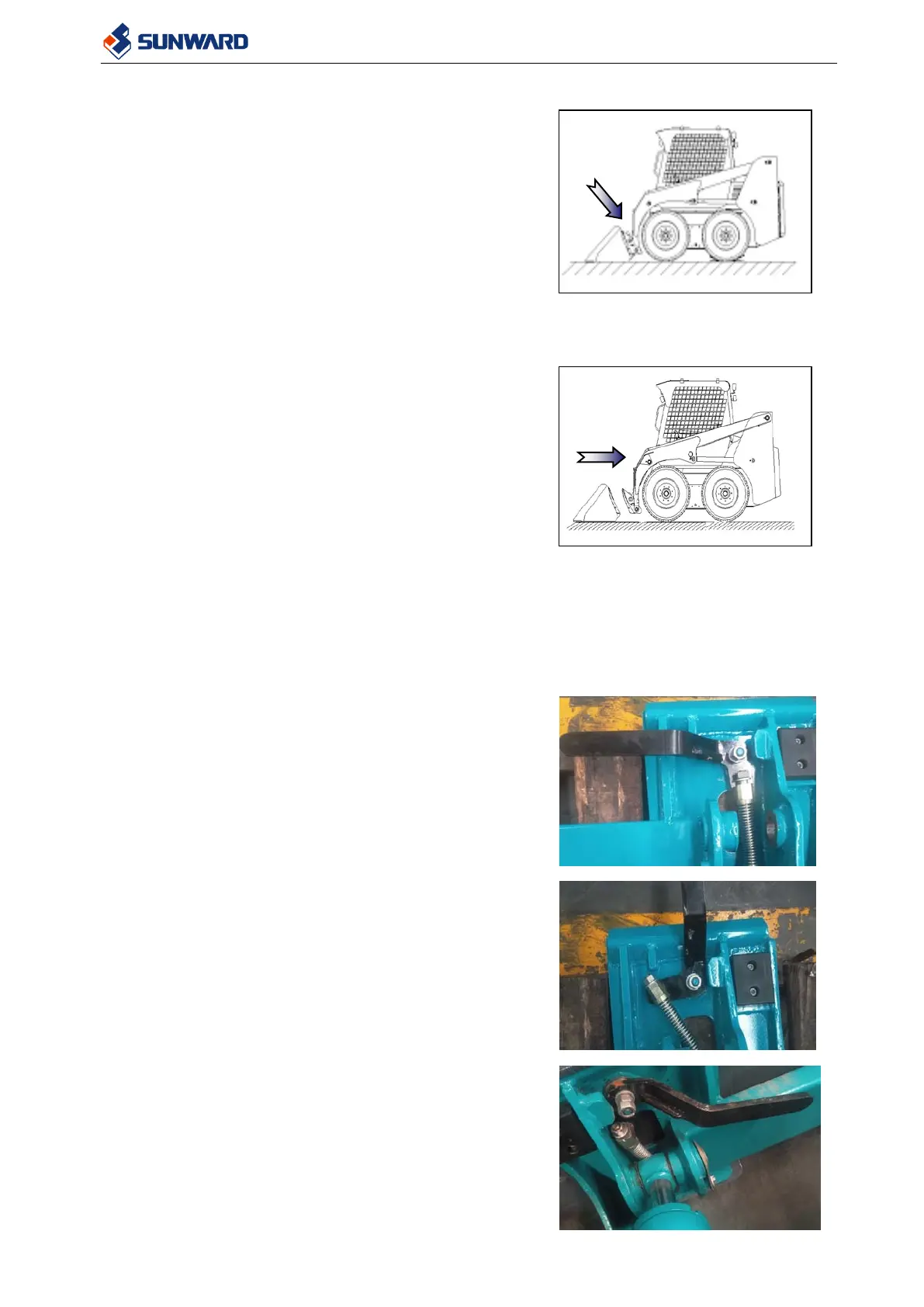

4.15.2 UNHITCH THE BUCKET
To unhitch the bucket or other equipments follow the steps below:
1) Move the machine to a level and firm
surface.
2) Lower the bucket to the ground and
incline forward bucket so that the
bottom side rest on the ground stably.
3) Stop the engine. Release the residual
pressure. Raise the restrain bar.
4) Get off the machine.
5) Rotate the levers to unlock the coupling pins completely.
6) Get on the machine, start the engine and release the parking brake.
7) Move reversely slowly, at the same time, lower a little the boom and rotate
forward the quick coupler. The quick coupler topside will leave the upper seat
on the bucket.
4.15.3 AJUST THE QUICK COUPLER
MECHANISM
• Before adjust the mechanism make sure
the bucket rest on the floor stably.
• The quick coupler mechanism has to be
adjusted periodically, so that it works
correctly.
• The mechanism is provided with a
spring that regulates the force you need
to turn the handle.
• Turning the screw 1 will compress the
spring and make it stronger the turning
force of the handle.
• Once adjusted the spring until the pin
touches the hole of the bucket turn the
screw 2 to fix the screw 1.
4.16 USE OF AUXILIARY PEDAL
The machine can be equipped with auxiliary system like
excavator, forks, demolition hammer, asphalt cutter etc. An
